Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB6020IRW1B
Certification :
ISO9001&RoHS
Place of Origin :
Shenzhen, China
MOQ :
1000
Price :
Negotiate
Payment Terms :
T/T,Western Union
Supply Ability :
20000 PCS/Day
Delivery Time :
10-15 days
Packaging Details :
EPE+CARTON
Storage Temperature :
-35℃~+85℃
Product Type :
SMD technology
Screen Dimension :
custom made
Polatity :
CC & CA
Type :
Standard
Pin Number :
8 left +16 right
Oem :
Yes
Advantage :
High efficiency, low power consumption
Led Color :
Orange
Egment Color :
Micky white or as same as emitting color
Brightness :
12-230 mcd
Emitting Color :
Super bright Red
Specification :
22.5*14*7.2MM
Pixels :
10mm
Digit Type :
4-Digit type
Description
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Tailored specifically for electrical metering scenarios, this 4-digit 7-segment LED display module is your ideal choice for precise, reliable digital readouts. Designed to seamlessly integrate into electricity meters, it combines ultra-bright illumination with stable performance, ensuring clear visibility even in dim or enclosed meter cabinets.
Key Specifications
  • Display Type: 4-digit 7-segment LED module (customizable)
  • Outer Dimensions: 60 × 20 × 8 mm (compact design for meter panels)
  • Digit Height: 14.2 mm (0.56 inch) - clear visibility from a distance
  • Polarity: Common Anode (optimized for meter control circuits)
  • Light Color: Ultra-bright white & red (custom colors available on request)
  • Compatibility: Fully compatible with standard driver ICs, easy to integrate
Core Advantages
• Superior Brightness: High-luminance output ensures easy readability in low-light meter enclosures or bright outdoor environments
• Uniform Light Distribution: Each segment glows evenly with no dark spots or uneven brightness
• Energy-Saving Design: Ultra-low power consumption and minimal current draw for long-term, 24/7 operation
• Exceptional Reliability: Built to withstand continuous use in harsh or temperature-fluctuating environments
• Flexible Customization: Available in multiple colors with compact form factor for standard meter panels
Application Scenarios
This module is specifically engineered for electrical metering systems, including:
  • Smart electricity meters (residential & industrial)
  • Energy monitoring devices
  • Utility control panels
  • Electrical measurement instruments
  • Industrial meter displays
Quality & Compliance
  • RoHS compliant, meeting international environmental standards
  • Rigorously tested for durability and long service life
  • Easy to install on PCBs, reducing production time and costs

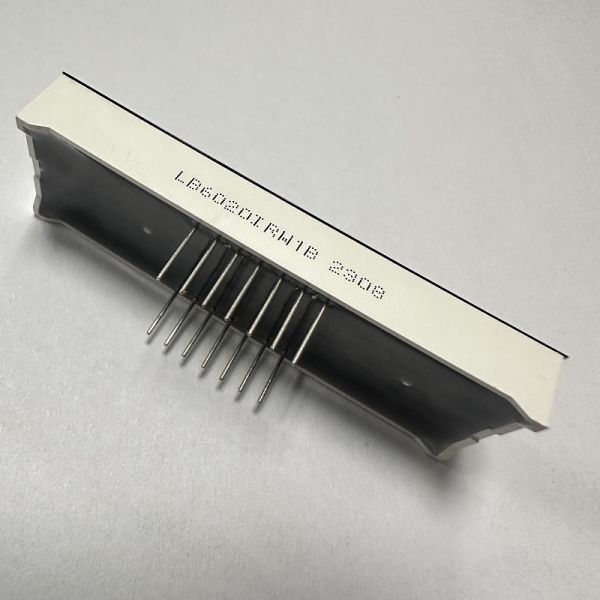

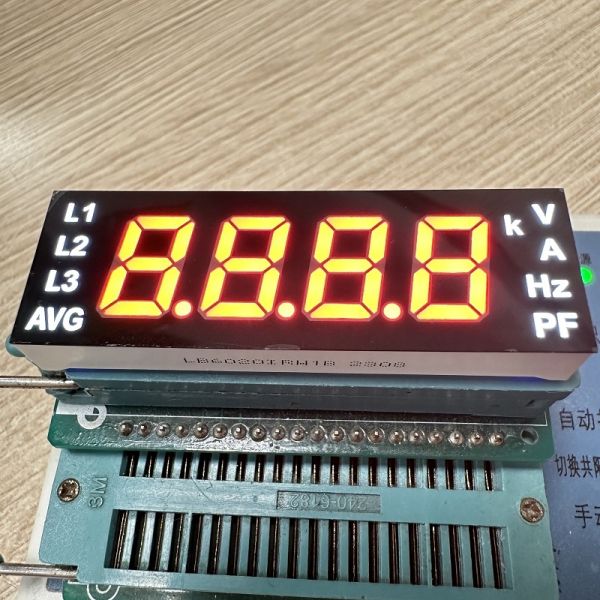

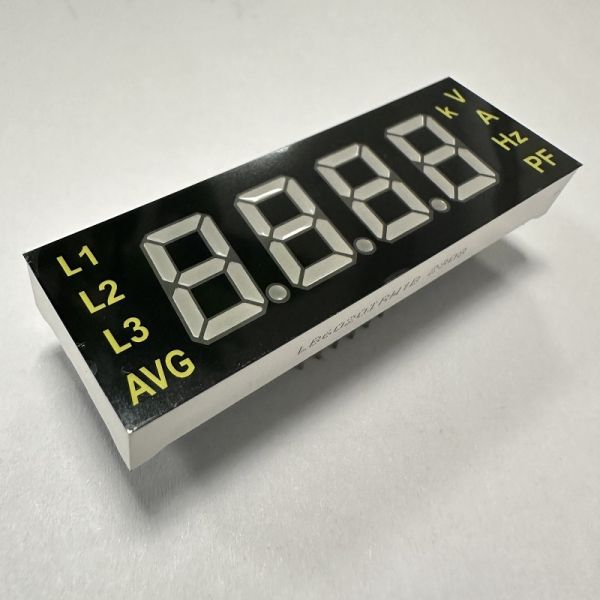

Product Images
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode) Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode) Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Delivery Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Estimated Delivery Time (days) 5 15 pending
Absolute Maximum Ratings (Ta=25 ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature (≤3 seconds) Th 260 ºC
LED Technical Parameters
Yellow Green (Code: J)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 30 40 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 569 574 nm
Amber/Yellow (Code: Y)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.5 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 60 80 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 585 595 nm
Orange (Code: F)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 60 80 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 600 605 nm
Super Bright Red (Code: R)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 50 60 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 630 635 nm
Ultra Bright Red (Code: UR)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 80 100 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 625 635 nm
Pure Green (Code: G)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 120 180 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 515 525 nm
Ultra Bright Blue (Code: BH)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 120 140 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 460 465 nm
Ultra Bright White (Code: WH)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 120 140 mcd
LED Color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32 0.30,0.33 nm
Manufacturer Information
SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)
Established in 2006, we are a company that integrates R&D, manufacturing and sales of optoelectronics LED Displays. ISO 9001:2015 Quality Management Systems certified company with more than 15 years OEM and ODM experience.
LIGHTBO has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.
Products Applications
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control and more.
Certifications
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Office and Factory Overview
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode) Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode) Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode) Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode) Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Company Exhibitions
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode) Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Shipping Services
Customized Ultra White/Red 4-Digit 7-Segment LED Display Module for Electrical Meter Panels (Common Anode)
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.
Q2: What is your main products?
A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and more.
Q3: What is your MOQ?
A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.
Q4: Before placing order, Can I get some samples for test?
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5: How long is your delivery time?
A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.
Q6: What is your terms of payment?
A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.
Q7: Can you quote me FOB prices?
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.
Q8: How can I get your catalogue and price list?
A: Yes. Please let us know your email address or contact us from website directly for our catalogue and price list.
Q9: Can I negotiate the prices?
A: Yes, we may consider discounts for bulk orders.
Q10: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
Q11: Can you do custom design products?
A: Yes, OEM & ODM service are available. We can customize the sizes, LED color and functional icons according to your requirements.
Q12: If I send my design, can you make it for myself only, and will not show it to anyone else?
A: Yes, we will not show it or sell to others without your authorization.
Q13: What will be the samples lead time for customized products?
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.
Q14: What is the shipping methods?
A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc, also you can choose the other way that best for you.
Q15: How do you ensure the quality of your products?
A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
