High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
LIGHTBO
Certification :
RoHS&SGS&ISO
Model Number :
LB02571EWH3B
MOQ :
1000PCS
Price :
Negotiable
Packaging Details :
EPE+CARTON
Delivery Time :
10-15Days
Payment Terms :
TT in advance& Western Union
Supply Ability :
50000PCS/Day
Description

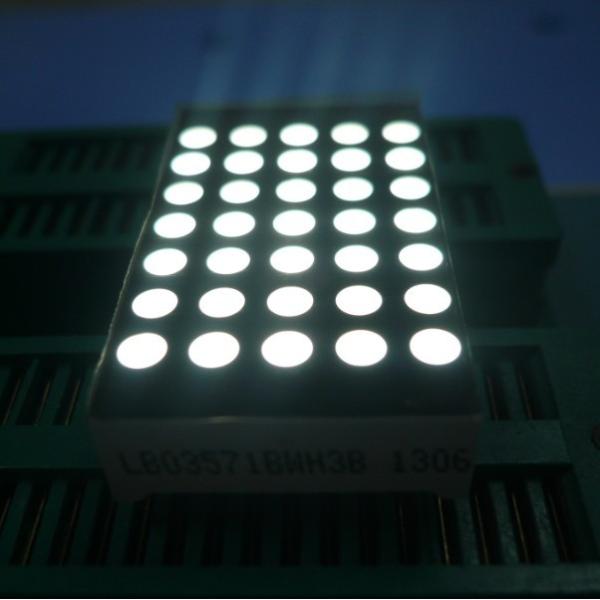

High Luminous Flexible 0.7inch 5×7 Dot Matrix Display LED Screen

Professional LED display screen designed for message boards and digital display applications with high brightness and excellent performance characteristics.

Quick Details
  • 0.7 inch (1.9mm) 5×7 dot matrix LED display
  • Ultra bright white illumination
  • Row Anode Column Cathode configuration
Product Description

Dot matrix LED displays are engineered with advanced features:

  • High brightness using high luminous LED dice
  • Low current operation and power consumption
  • Stable quality and consistent performance
  • Excellent dot uniformity and wide viewing angle
  • Fast heat dissipation and long lifespan
  • Easy mounting on PC boards and sockets
  • IC compatible and RoHS compliant

Available colors: red, green, blue, white, amber, orange, bi-color, RGB. Character heights range from 17.8mm (0.7") to 106.5mm (4.2").

Key Specifications
Package Dimensions 12.7 × 17.8 × 6.3 mm
Face Color Yellow Segments Black Face
Connection Row Anode Column Cathode
Color Pure White
(X,Y) 0.29-0.33
IV 120-140mcd/dot
Forward Voltage (VF) 3.0-3.6V
Forward Current 20mA
Reverse Voltage 5V
Key Features
  • High luminous intensity with low power consumption
  • Large viewing angle and stable performance
  • Continuous uniform dots and long lifetime
  • Easy assembly and IC compatibility
  • RoHS directive compliant
  • Fast heat dissipation for lift position indicators
Applications
  • Home appliances and instrument panels
  • Digital displays and display screens
  • Lift position indicators
  • Elevator floor number indicators
  • Set-top boxes, clock displays, digital timers
  • Numeric displays and similar applications
Product Images
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
Technical Specifications
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40～+85 ℃
Storage Temperature Range Tstg -40～+85 ℃
Solder Temperature (3 sec) Th 260 ℃
Competitive Advantages
  • Stable quality with prompt delivery
  • Long lifespan and cost competitive pricing
  • Excellent pre-sale and after-sale service
  • No minimum order quantity (MOQ)
  • Various colors available
  • OEM / ODM services acceptable
Manufacturing Capabilities
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
Company Exhibitions
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
Certifications
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
Shipment Services
High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.
Q2: What are your main products?
A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, and more.
Q3: What is your MOQ?
A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.
Q4: Can I get samples for testing?
A: Yes. We can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.
Q5: How long is your delivery time?
A: Delivery time: About 10-20 days; according to order quantity and raw materials. Urgent orders can be ready within 7-10 days.
Q6: What are your terms of payment?
A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Details are negotiable.
Q7: Can you quote FOB prices?
A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.
Q8: How can I get your catalogue and price list?
A: Please provide your email address or contact us from our website directly.
Q9: Can I negotiate the prices?
A: Yes, we may consider discounts for bulk orders.
Q10: How much will the shipping charges be?
A: It depends on shipment size and method. We will provide charges as requested.
Q11: Can you do custom design products?
A: Yes, OEM & ODM services are available. We can customize sizes, LED color and functional icons.
Q12: If I send my design, can you make it exclusively for me?
A: Yes, we will not show it or sell to others without your authorization.
Q13: What is the samples lead time for customized products?
A: Samples lead time will be about 20-25 working days after receiving mold cost and approval.
Q14: What are the shipping methods?
A: We ship by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA, etc. You can choose preferred methods.
Q15: How do you ensure product quality?
A: We are ISO 9001 QMS certified with over 20 years experience. We conduct twice 100% testing before shipment.
