Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-SOK049
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
32 inch
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Operating Temperature :
0°C to 50°C
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Power Supply :
AC 100~240V, 50hz-60hz
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

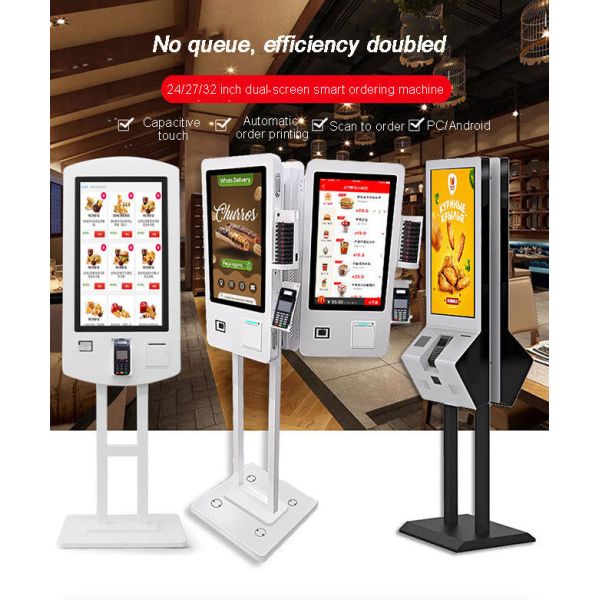

32-inch Dual-Screen Ultra-Thin Self-Service Ordering Touch Screen All-in-one Machine with Gesture Control


In today's rapidly evolving digital and intelligent landscape, the 32-inch Self-Service Ordering Touch Screen All-in-one Machine has not only brought revolutionary changes to the catering industry, but its flexible and diverse hardware features also give it unique advantages in other fields. With its advanced technology, user-friendly design, and high customizability, this device has become an ideal choice for many businesses to improve efficiency and service quality.


32-inch Dual-Screen Ultra-Thin Self-Service Ordering Touch Screen All-in-one Machine with Gesture Control

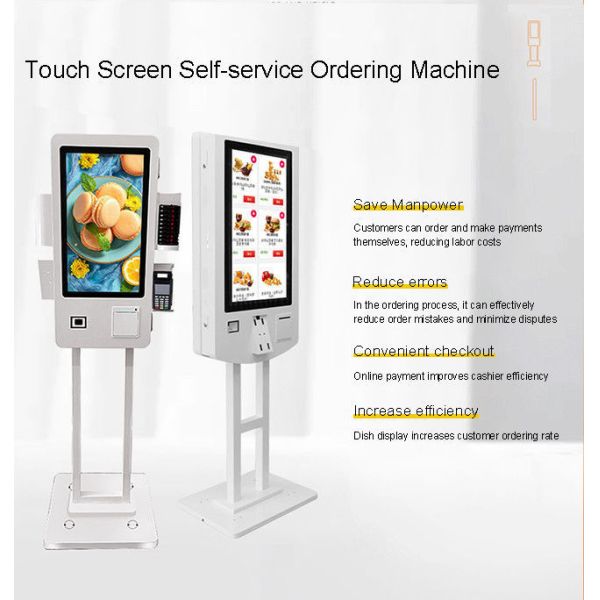

32-inch Self-Service Ordering Touch Screen All-in-one Machine: The Intelligent Hub for Upgrading Catering Services

In the catering industry's pursuit of both personalization and efficiency, the 32-inch Self-Service Ordering Touch Screen All-in-one Machine, with its high adaptability and intelligent functions, has become a revolutionary tool for chain brands, themed restaurants, and high-end dining scenarios.


32-inch Dual-Screen Ultra-Thin Self-Service Ordering Touch Screen All-in-one Machine with Gesture Control

32-inch Self-Service Ordering Touch Screen All-in-one Machine: A Brand-Specific Intelligent Interactive Platform

Addressing the differentiated needs of various catering formats, the 32-inch Self-Service Ordering Touch Screen All-in-one Machine offers comprehensive customization services from hardware configuration to software interface.


The machine body supports brand VI color spraying, logo etching, and decorative element embedding, achieving seamless integration of the device with the store's visual system.


The screen interface can be custom-designed based on menu categorization logic and promotional activity modules, and even supports dynamic theme switching to meet the visual presentation needs of holiday marketing or seasonal limited-edition menus.

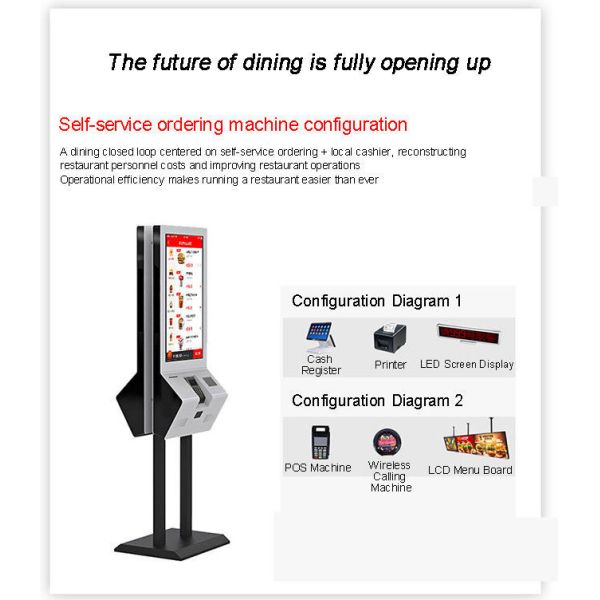

The device adopts a modular structure design, supporting flexible selection of peripherals such as printing modules, ID card readers, and membership card readers, adapting to the operational needs of different scenarios such as fast food, hot pot, and baking.


The industrial-grade dustproof and waterproof body, combined with a wide temperature range operation capability (-20℃ to 60℃), ensures stable operation in complex environments such as open kitchens and outdoor dining areas, significantly reducing equipment failure rates.

32-inch Dual-Screen Ultra-Thin Self-Service Ordering Touch Screen All-in-one Machine with Gesture Control

32-inch Self-Service Ordering Touch Screen All-in-one Machine: A Powerful Tool for All-Scenario Operations

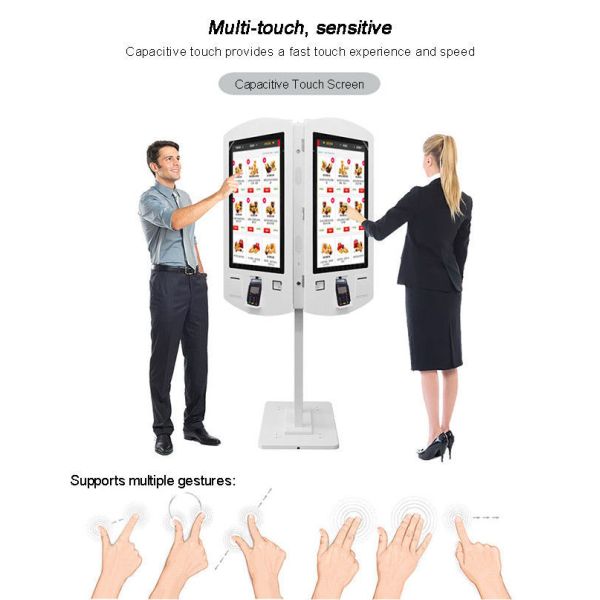

By integrating AI visual recognition and multimodal interaction technology, the 32-inch Self-Service Ordering Touch Screen All-in-one Machine offers innovative interaction methods such as voice ordering, gesture page turning, and facial recognition membership login.


Its extra-large touch interface supports dual-user operation, allowing customers to simultaneously browse menus and adjust set meal combinations during peak hours, reducing the average ordering time to less than 18 seconds.


The built-in intelligent recommendation engine dynamically pushes suitable dishes based on time of day, weather, and customer historical order data, improving average order value and new product conversion rates.


To enhance operational management, the device is equipped with a cloud-based data platform system, synchronizing real-time data on raw material consumption, dish sales, and equipment status across all stores.


Managers can monitor bottlenecks in food preparation efficiency through visual dashboards, automatically generating replenishment alerts and equipment maintenance plans.


Furthermore, customized API interfaces support seamless integration with third-party ERP and CRM systems, enabling advanced functions such as unified membership points redemption and cross-store discount verification.

32-inch Dual-Screen Ultra-Thin Self-Service Ordering Touch Screen All-in-one Machine with Gesture Control

32-inch Dual-Screen Ultra-Thin Self-Service Ordering Touch Screen All-in-one Machine with Gesture Control


The 32-inch Self-Service Ordering Touch Screen All-in-one Machine, through deep customization and integration of intelligent technology, not only restructures the customer's ordering and payment experience but also becomes a core node in the digital operation of catering enterprises.


From reducing labor costs by 30% to increasing table turnover by 45%, from enhancing brand recognition to accumulating precise consumer data, this device is redefining the efficiency standards of catering services. With the maturity of technologies such as 3D dish projection and AR interactive menus, its value as a "smart service terminal" in catering spaces will continue to expand.


LCD Panel Parameters Screen Size 32 inch
Display area 698(H) X 391.8(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency 60Hz
PCAP Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature 0 ~ 50
Storage temperature below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size 832 X 530 X 150mm
The Gross weight of Unit Package 50kg


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
