Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OD003
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
30 inch
Type of backlight :
OLED self-luminous
refresh rate :
120Hz
Resolution :
1080×1920
Panel transparency :
38%
Standard colours :
1.07B 10Bit
Appearance Color :
White/Black/Customization
Brightness :
400nits (center 1 point.typ.)
Contrast ratio :
8ms
Viewing Angle :
Min 60/60/60/60
Audio system :
Built-in 10 W X 2 Speakers
Built-in wifi :
150Mbps 802.11n wifi integate
OS :
Android or Windows optional
Touchscreen type :
Projected Capacitive Touch screen
Touch points :
10 points
CPU :
14th Gen Intel I9-14900KF Proceesor
RAM :
16GB
SSD :
512GB
Discrete Graphics card :
12GB GIGABYTE 4070
Input Voltage :
AC 100~240V, 50hz-60hz
Onboard interface :
1 X RJ45, 2 X HDMI, 4 X USB2.0
Protype :
Desktop / Floor standing / Interactive(Optional)
Description

30 inch HD Interactive Transparent OLED Display Transparent Digital Signage


Science Fiction Becomes Everyday Life: Customized Transparent OLED Display Solutions

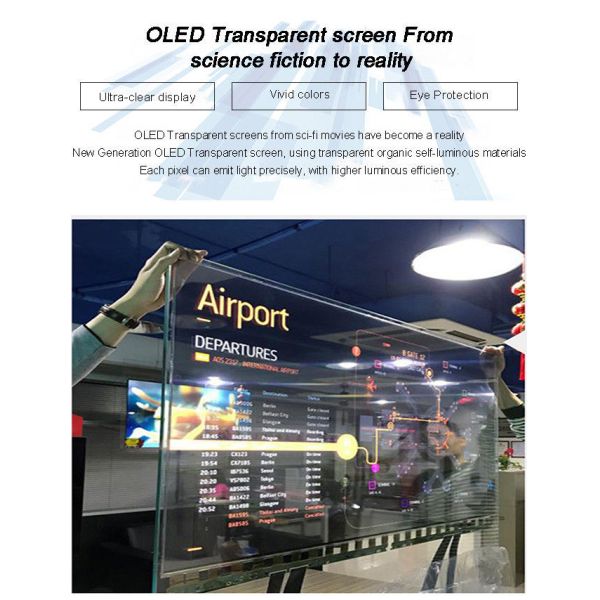

Once upon a time, information screens floating in the air were merely a figment of science fiction movies. Today, the new generation of transparent OLED Display has brought this imagination to life. Utilizing transparent organic self-emissive materials, each pixel emits light precisely, delivering ultra-high definition, vivid colors, and an eye-friendly experience with higher luminous efficiency. It can also be fully customized to suit your space and creative vision.


30 inch HD Interactive Transparent OLED Display Transparent Digital Signage

II. Flexible Customization: Versatile Forms, Flexible Installation

We understand that standardized products cannot meet the unique needs of different scenarios. Therefore, we offer a full-chain customized solution from product form to installation method:

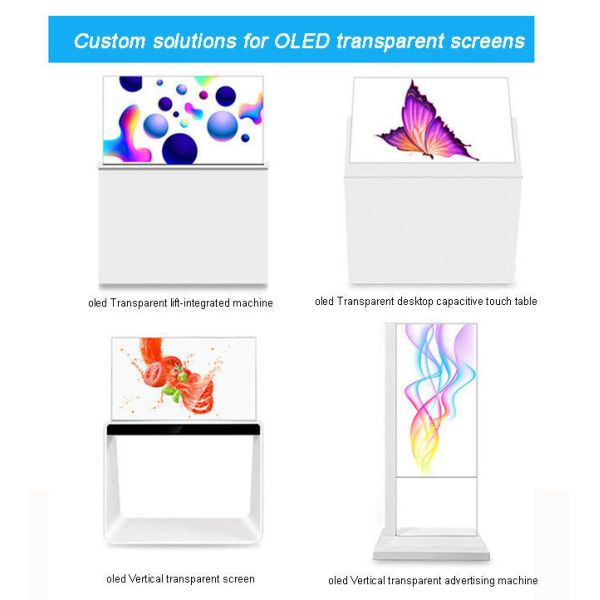

1. Customization of Five Core Product Forms:


Transparent Lifting Integrated Unit: Hidden design, one-button rise, combining a sense of ceremony and technology.


Desktop Transparent Capacitive Touch Table: Transforms the entire desktop into an interactive interface, suitable for high-end retail and showroom interaction.


Vertical Transparent Screen: Serves as a visual focal point and brand image wall.


Vertical Transparent Advertising Machine: An intelligent terminal integrating information dissemination and touch query.

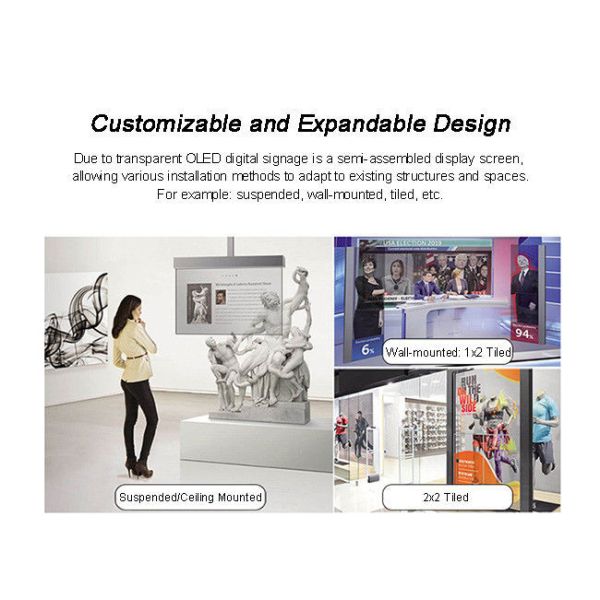

2. Scalable Modular Installation Design:


Transparent OLED digital signage adopts a semi-assembled structure, supporting various flexible installation methods, perfectly adapting to existing building structures and space designs:


Wall-mounted: Saves space, simple and neat.


Suspended/Hanging: Creates a suspended visual spectacle, attracting all eyes.


Modular: Supports free splicing of 1x2, 2x2, etc., to create giant visual walls or creative shapes, meeting the needs of exhibitions, command centers, and other large-view applications.


30 inch HD Interactive Transparent OLED Display Transparent Digital Signage

30 inch HD Interactive Transparent OLED Display Transparent Digital Signage

III. Scene Empowerment: Defining Future Spaces from Airports to Exhibition Halls

With its unique perspective effect, you can freely choose to install it in open spaces or interactive areas, unlocking unlimited application scenarios:


Transportation Hubs: Such as airport check-in islands and train station halls, as ultra-high-definition flight/train information screens, the information floats in the air, allowing passengers to see both the screen content and the rear signage simultaneously, improving both efficiency and experience.

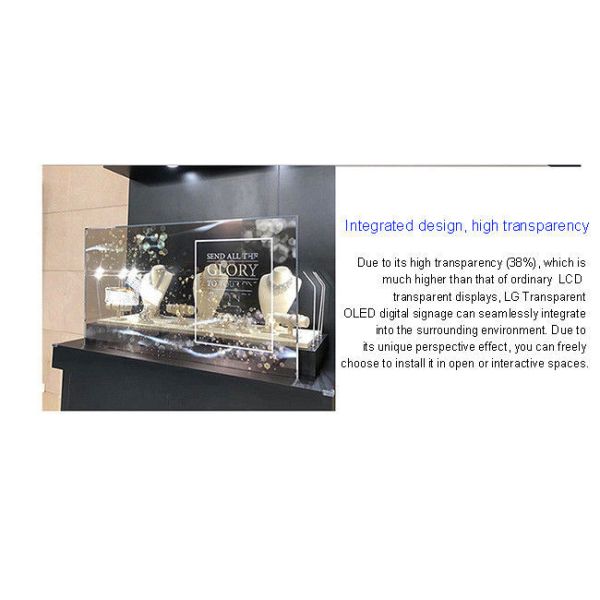

Technology Exhibition Halls and Retail: As a product display window, the superimposed virtual and real elements of physical products and dynamic parameters and usage scenarios allow the products to "speak for themselves."


Corporate Lobbies and Conference Rooms: As a brand image wall or data cockpit, it presents a futuristic visual impact when receiving visitors or holding internal meetings.


30 inch HD Interactive Transparent OLED Display Transparent Digital Signage


Transparent OLED Display have evolved from science fiction concepts into a key element defining the future of commercial, cultural, and public spaces. By choosing our customized solutions, you gain more than just a screen; you gain a strategic visual system that is deeply integrated into your spatial DNA and precisely serves your business goals.


Display Size 30 inches
Backlight Type OLED
Display Resolution 1366*768
Display ratio 16:9
Brightness 200-600d/mt Automatic Adjustment
Contrast ratio 135000:1

Visibility
178*/178
Response time 0.1ms(Gray To Gray)
Color Depth 10bit(R),1.07 billon colors
Interface
Input Interface USB*1+HDMI*1+DC*1
Power Supply Parameters
Power Input DC24V
Total Power Consumption <90W
Operating Environment
Operating Time 7*16h
Life Span 3000h
Operating Temperature 0°C~40°C
Operating Humidity 20%~80%
Structure
Material Aluminum Profile + Tempered Glass + Sheet Metal
Dimensions 1225.4*699.7*29.5(mm), see structural dimension diagram for details
Packaging Dimensions TBD
Installation Method Wall-mounted installation
Net weight/Gross weight 6kg/8KG
Accessory list Base, adapter, HDMI cable, remote control, certificate of conformity, warranty card
Others One year warranty


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
