Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-SOK055
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
32 inch
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Operating Temperature :
0°C to 50°C
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Power Supply :
AC 100~240V, 50hz-60hz
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

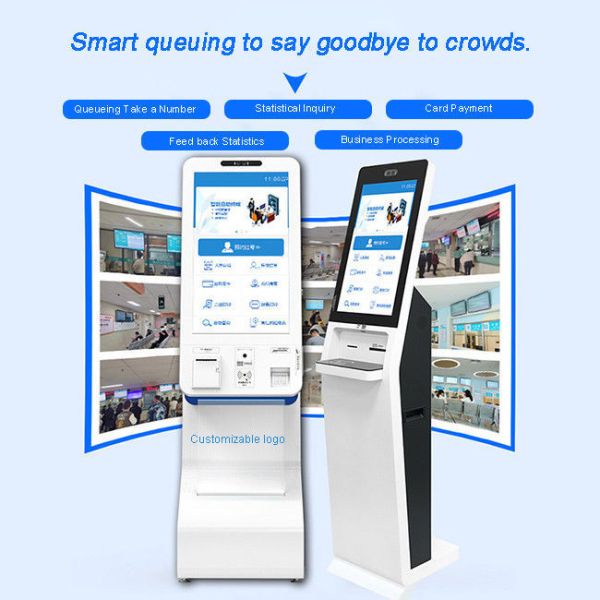

32 inch Touchscreen Hospital Triage Queuing and Ticket Dispensing Machine Improve efficiency


In tertiary hospitals with daily patient traffic exceeding 10,000, triage efficiency directly impacts patient experience and the utilization rate of medical resources. Traditional manual triage windows often suffer from chaotic queuing, information errors, leading to patient delays and even disputes. The 32-inch hospital triage queuing and ticket dispensing machine, with "intelligent triage + seamless interaction" at its core, reshapes the outpatient process, allowing for both efficiency and humanistic care.


32 inch Touchscreen Hospital Triage Queuing and Ticket Dispensing Machine Improve efficiency

32-inch Hospital Triage Queuing and Ticket Dispensing Machine: From "Blind Queuing" to "Symptom-Based Triage"

The 32-inch hospital triage queuing and ticket dispensing machine terminal is equipped with an AI pre-diagnosis system. Patients select key information such as symptoms and medical history via a touchscreen, and the system intelligently recommends the best department. For example, patients complaining of "chest pain" will be prioritized for cardiology, rather than the traditional "first-come, first-served" approach. The system supports multi-media recognition, including ID cards, medical insurance cards, and electronic health cards, automatically retrieving patient records within 3 seconds, avoiding repetitive entry of basic information.


32 inch Touchscreen Hospital Triage Queuing and Ticket Dispensing Machine Improve efficiency

32-inch Hospital Triage and Queue Dispenser: Robust Protection Creates a Safety Barrier

To cope with the high-intensity use environment of hospitals, the device uses a medical-grade antibacterial tempered glass screen with a nano-silver ion coating, achieving an antibacterial rate of over 99% against E. coli and Staphylococcus aureus. The entire machine is IP65 dustproof and waterproof certified and supports alcohol spray disinfection, avoiding the cross-infection risk of traditional paper ticket receipts.


The device includes components such as ID card/social security card readers, bank card readers, barcode scanners, and receipt printers, employing a modular design for easy maintenance and repair. In special areas such as fever clinics, the device supports a "contactless mode": patients can scan a QR code to complete triage and ticket dispensing on their mobile phones, minimizing the probability of infection transmission.


32 inch Touchscreen Hospital Triage Queuing and Ticket Dispensing Machine Improve efficiency

32-inch Hospital Ticket Dispenser: Driving Lean Management of Medical Resources

The 32-inch hospital ticket dispenser is not only a traffic entry point but also a "data radar" for hospital operations. The system monitors 18 core indicators in real time, including peak patient flow, average waiting time, and cancellation rate in each department, and automatically generates resource allocation suggestions. For example, when the number of pediatric patients suddenly increases by 20%, the system coordinates with the pharmacy to stock up on commonly used medications in advance.


Furthermore, the massive amount of symptom data accumulated by the device can feed back into the hospital's departmental development. By analyzing triage keywords over three years, a tertiary hospital found that 23% of patients with "chronic cough" actually needed to be referred to the ENT department, and based on this, optimized the collaborative diagnosis and treatment mechanism between the respiratory and ENT departments.


LCD Panel Parameters Screen Size 32 inch
Display area 698(H) X 391.8(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency 60Hz
PCAP Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature 0 ~ 50
Storage temperature below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size 832 X 530 X 150mm
The Gross weight of Unit Package 50kg


The 32-inch hospital triage and queuing machine is becoming a core node in the construction of smart hospitals. From shortening the average waiting time to reducing the workload of the information desk by 65%, from resolving queuing disputes to improving the turnover rate of medical resources, this device redefines modern medical efficiency with "hard technology + warm service." With the popularization of 5G + medical IoT, its derivative value, such as remote triage and cross-hospital scheduling, will continue to be released, allowing limited medical resources to benefit more patients.
