Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-SOK054
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
27 inch
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Operating Temperature :
0°C to 50°C
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Power Supply :
AC 100~240V, 50hz-60hz
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

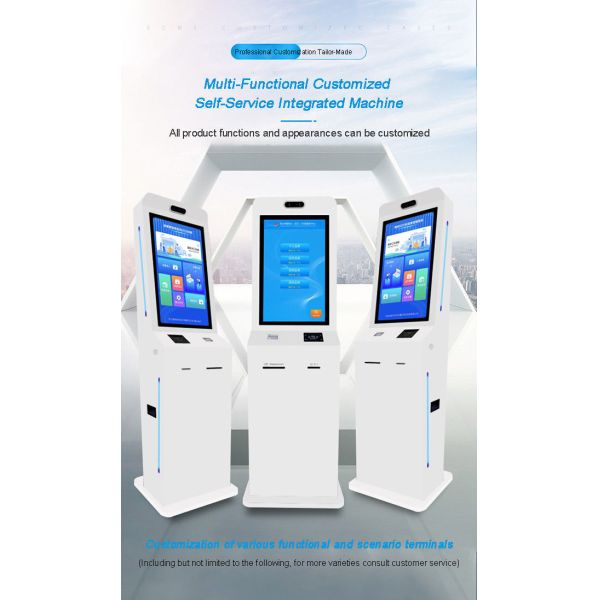

All In One Self Service Food Ordering System FHD Restaurant Self Service Kiosk


In today's highly competitive restaurant market, improving customer loyalty and operational efficiency is a key concern for every business.

The 27-inch Self Service Food Ordering System, with its large screen display, powerful hardware support, and deep integration with membership systems, offers restaurants an ideal solution for comprehensively enhancing service quality and customer experience.


All In One Self Service Food Ordering System FHD Restaurant Self Service Kiosk

27-inch Self Service Food Ordering System: Superior Visual Experience

The 27-inch Self Service Food Ordering System utilizes a large 27-inch high-definition display (1080P), ensuring clarity and color accuracy of menu content and advertisements. Its wide viewing angle design provides a good viewing experience from any angle. The anti-glare coating maintains image clarity even in complex lighting environments.


The 27-inch screen not only provides ample display space but can also be used to play high-quality video advertisements or promotional activities, attracting customer attention and increasing interactivity. Through customized UI design, businesses can incorporate brand elements such as logos, colors, and style, transforming the device from a mere ordering tool into a work of art showcasing their brand image.



All In One Self Service Food Ordering System FHD Restaurant Self Service Kiosk

27-inch Self Service Food Ordering System: Rugged and Durable Industrial-Grade Design

To adapt to various complex operating environments, the 27-inch Self Service Food Ordering System adopts industrial-grade design standards. The casing is made of high-strength aluminum alloy, possessing excellent pressure resistance and corrosion resistance, effectively resisting impacts and wear during daily use. The device is also equipped with an efficient heat dissipation system, ensuring stable temperature during prolonged high-load operation and extending its service life.


Furthermore, the terminal is waterproof and dustproof, suitable for various commercial environments. Whether in a humid kitchen area or a high-traffic restaurant lobby, the device operates stably, reducing maintenance costs and failure rates.


LCD Panel Parameters Screen Size 27 inch
Display area 597.9(H) X 336.3(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency 60Hz
PCAP Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature 0 ~ 50
Storage temperature below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size 720 X 460 X 120mm
The Gross weight of Unit Package 50kg


The 27-inch self-service terminal for membership ordering systems, with its superior visual experience, robust and durable industrial-grade design, and deep integration with membership management systems, is an ideal choice for improving restaurant operational efficiency and service quality. Whether it's displaying clear menu information on a large screen or enhancing customer loyalty through a membership management system, this device demonstrates its powerful application potential.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
