Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-SOK052
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
15.6 inch
Panel type :
BOE Original A+ Grade IPS
Brightness :
350cd/m²
Resolution :
1920 X 1080
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Operating Temperature :
0°C to 50°C
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Power Supply :
AC 100~240V, 50hz-60hz
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

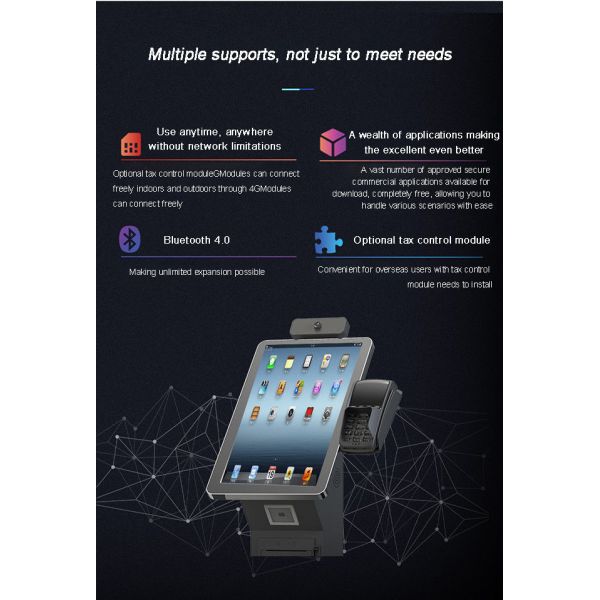

A Compact 15.6-inch Desktop Smart Ordering Terminal with Intelligent Features is Suitable For Milk Tea Shops and Community Fast Food Restaurants


In small and medium-sized catering establishments, space utilization and ease of operation directly impact service quality and operating costs.

The 15.6-inch desktop smart ordering terminal, with its compact design and intelligent functions, has become a powerful tool for transformation in milk tea shops, bakeries, and community fast-food restaurants.


A Compact 15.6-inch Desktop Smart Ordering Terminal with Intelligent Features is Suitable For Milk Tea Shops and Community Fast Food Restaurants

15.6-inch Desktop Interactive Terminal: The Golden Ratio for Space Optimization

Addressing the limited front-desk space in small catering establishments, the 15.6-inch desktop interactive terminal achieves a perfect balance between space utilization and user experience with its golden screen ratio. Its ultra-narrow bezel design reduces the size by 25% compared to traditional devices, allowing for flexible integration into cash registers, bar counters, or independent stands. It supports 0°-90° tilt adjustment, adapting to standing or sitting operating scenarios.


Built-in dual-screen display functionality allows the main screen to display the ordering interface to customers, while the secondary screen allows staff to view order details, enabling "one machine, two roles" collaboration.


The device is IP65 certified, resisting common contaminants such as water splashes and flour dust. Equipped with an industrial-grade capacitive touchscreen, it allows for precise operation even while wearing gloves. Its wide operating temperature range of -10℃ to 50℃ ensures stability in special environments such as breakfast shops and beverage stations. The modular interface design supports external devices such as barcode scanners and receipt printers, meeting diverse operational needs.


A Compact 15.6-inch Desktop Smart Ordering Terminal with Intelligent Features is Suitable For Milk Tea Shops and Community Fast Food Restaurants

15.6-inch Desktop Smart Terminal: The Intelligent Hub for Human-Machine Collaboration

Generally, the 15.6-inch desktop smart terminal only supports manual touchscreen ordering, with the order record synchronized to the restaurant's logistics system. However, some customized models integrate AI voice interaction and visual recognition technology, simultaneously supporting touch, voice, and barcode scanning ordering modes.


For example, if a customer says "one cup of pearl milk tea with less ice and half sugar," the system automatically recognizes the taste preference and generates an order, reducing the ordering time to less than 15 seconds. Staff can monitor the status of six orders in real time via a secondary screen, and the intelligent scheduling system automatically optimizes queuing logic based on food preparation progress, reducing customer waiting anxiety.


A Compact 15.6-inch Desktop Smart Ordering Terminal with Intelligent Features is Suitable For Milk Tea Shops and Community Fast Food Restaurants


The back-end management system deeply integrates with the supply chain data chain. When the inventory of a certain raw material falls below a threshold, it automatically triggers a procurement alert and simultaneously adjusts the availability status of the front-end menu. The built-in energy consumption monitoring module analyzes peak and off-peak operating times and intelligently activates sleep modes, helping merchants save over 20% on electricity costs.


A Compact 15.6-inch Desktop Smart Ordering Terminal with Intelligent Features is Suitable For Milk Tea Shops and Community Fast Food Restaurants

A Compact 15.6-inch Desktop Smart Ordering Terminal with Intelligent Features is Suitable For Milk Tea Shops and Community Fast Food Restaurants


The 15.6-inch desktop smart ordering machine, with its combination of lightweight hardware and intelligent software, provides small and medium-sized catering enterprises with a cost-effective digital transformation solution. From saving 40% of front-end space to reducing labor costs by 30%, from reducing ordering errors to strengthening supply chain management, this device is becoming a standard configuration for refined operations in the catering industry. With the integration of edge computing and IoT technologies, its value as a "store data collection terminal" will be further unleashed, driving the evolution of catering services towards a smarter and more efficient direction.


LCD Panel Parameters Screen Size 15.6 inch
Display area 344.16(H) X 193.59(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency 60Hz
PCAP Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature 0 ~ 50
Storage temperature below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size 450 X 310 X 110mm
The Gross weight of Unit Package 50kg


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
