Specifications
Type of backlight :
OLED self-luminous
Protype :
Desktop / Floor standing / Interactive(Optional)
RAM :
16GB
SSD :
512GB
Screen Size :
55 inch
OS :
Android or Windows optional
Onboard interface :
1 X RJ45, 2 X HDMI, 4 X USB2.0
Touchscreen type :
Projected Capacitive Touch screen
Audio system :
Built-in 10 W X 2 Speakers
Built-in wifi :
150Mbps 802.11n wifi integate
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OD018
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500 pcs per month
Delivery Time :
15 working days
Packaging Details :
wooden case, carton, flight cases are optional
Description

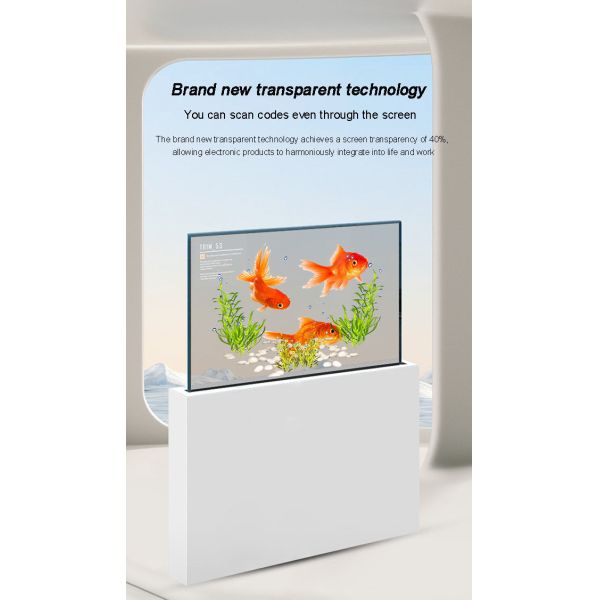

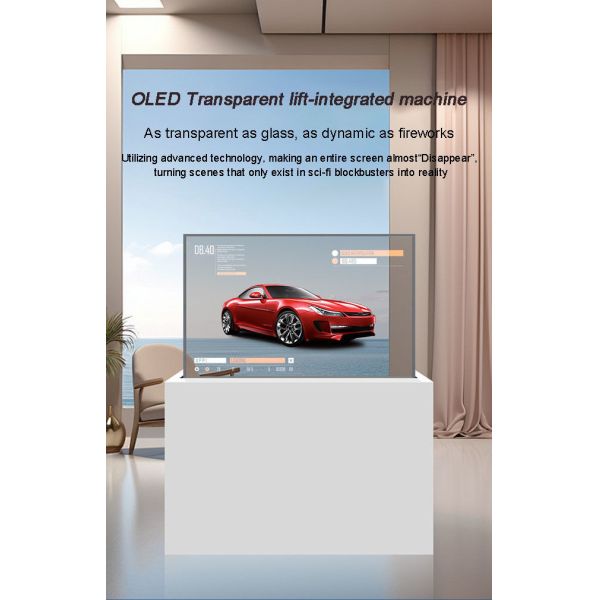

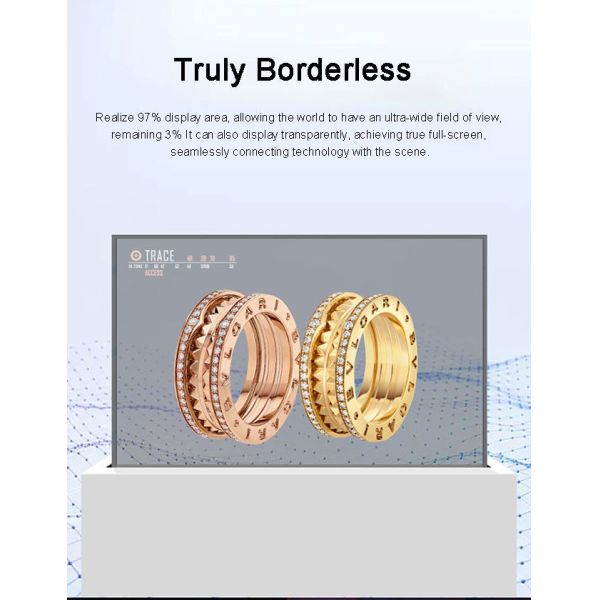

55 Inch Floor Standing See-Through Transparent OLED Lifting All-in-One TV Interactive Touchscreen Display


Advanced Transparent OLED Display for Smart Commercial and Interactive Spaces


The 55 Inch Floor Standing See-Through Transparent OLED Lifting All-in-One TV Interactive Touchscreen Display is a premium digital signage solution designed for retail stores, museums, exhibitions, smart showrooms, and high-end commercial environments. It integrates advanced transparent OLED display technology with a lifting floor-standing structure, delivering a dynamic transparent OLED screen experience that combines motion, interactivity, and visual transparency.


As a professional OLED display manufacturer, this solution is engineered for next-generation transparent digital signage, enabling immersive storytelling where digital content appears to float in space while real objects remain visible behind the screen.



Lifting Transparent OLED Screen with Self-Emissive Technology


Floating Visual Effect with Motorized Lifting Structure

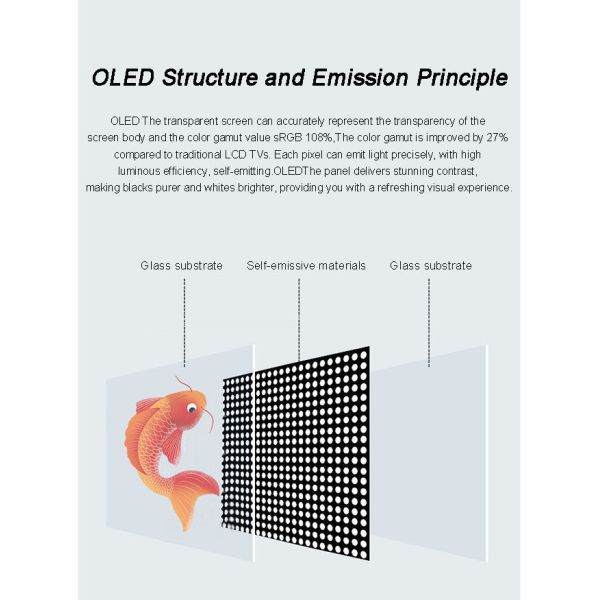

This transparent OLED screen uses self-luminous OLED pixels, eliminating the need for a backlight system. Each pixel emits its own light, ensuring high contrast, vivid colors, and a true see-through display effect.


Key display features include:

  • 55-inch transparent OLED panel
  • Full HD 1920 × 1080 resolution
  • 38%–43% transparency level
  • Motorized lifting mechanism (adjustable height)
  • Capacitive multi-touch support
  • Wide 178° viewing angle
  • High contrast ratio with deep blacks and bright colors
  • Ultra-thin commercial-grade design

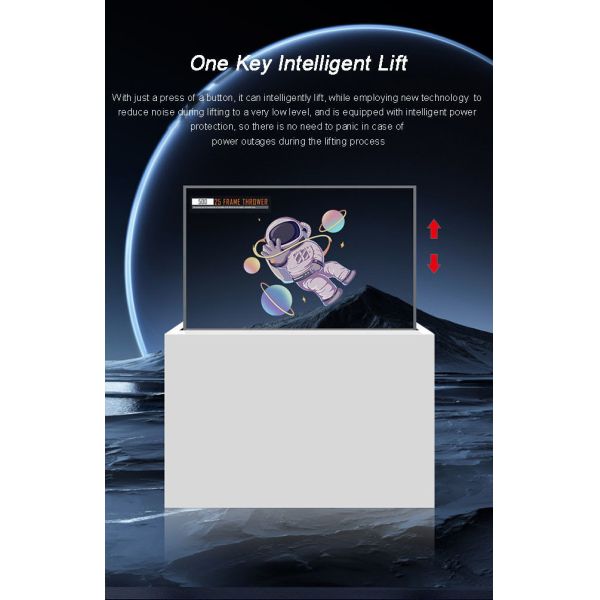

The lifting structure adds a dynamic visual experience, allowing the screen to rise or lower automatically for presentation, product launches, or interactive demonstrations.


Interactive All-in-One Smart Display System


This all-in-one system integrates display, touch, and intelligent control into a single platform.


Functional advantages include:

  • Multi-touch interaction for user engagement
  • Android/Windows system support
  • Real-time content playback and control
  • Optional AI digital content integration
  • Smooth video and animation performance
  • Smart kiosk functionality

This transforms traditional signage into a fully interactive smart display system.


Transparent OLED — 55-inch Lift Model(ZXTLCD-OD018)
Parameters






Panel
Size 55 inches
Type OLED panel technology
Light transmittance 43%
Dynamic contrast ratio 200000:1
Aspect ratio 16:9
Resolution 1920*1080(FHD)
Viewing angle R/L 120(min) U/D 120(min)
Brightness 600/200 cd/m² (Center 1point,Typ)
Number of pixels(HxVx3) 6220800
Color gamut 90%
Lifespan (typical value) 30,000 hours
Operating time 18 hours/7 days (dynamic images only)
Orientation Landscape orientation
Refresh rate 120Hz
Interfaces Input HDM IInterfaces*1
USB Interfaces*1
Function Touch control None/Capacitive (optional)
Features Transparent display, pixel-level self-controlling backlight, ultra-fast response
Power/Environment Power supply Operating power supply: AC100-240V, 50/60Hz
Environment Temperature: 0-40°C, Humidity: 10%-80%
Dimension Display size 1209.6 x 680.4(mm)
Panel size 1209.6 x 680.4mm
Overall dimensions 1688.1*1434*360(mm )
Power Consumption Typical value 190W
DPM 3W
Power off 0.5W
Packaging Stand Main unit box, cover plate, base
Accessories Remote control, power cord


FAQ


What is a transparent OLED display?

A transparent OLED display is a self-emissive screen that allows viewers to see through it while displaying high-definition digital content.

What is the advantage of the lifting structure?

It allows the screen to move up and down automatically, enhancing presentation impact and interactive flexibility.

Does it support touch interaction?

Yes, it supports capacitive multi-touch functionality.

Where is it commonly used?

It is widely used in retail, exhibitions, museums, and high-end commercial environments.


Conclusion

The 55 Inch Floor Standing See-Through Transparent OLED Lifting All-in-One TV Interactive Touchscreen Display combines motion design, interactivity, and advanced transparent OLED display technology. As a professional OLED display manufacturer, it provides powerful transparent OLED screen and transparent digital signage solutions that deliver immersive, futuristic, and high-impact commercial experiences.
