Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-SOK008
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
15.6 inch
Resolution :
1920 X 1080
Panel type :
BOE Original A+ Grade IPS
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Operating Temperature :
0°C to 50°C
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Power Supply :
AC 100~240V, 50hz-60hz
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

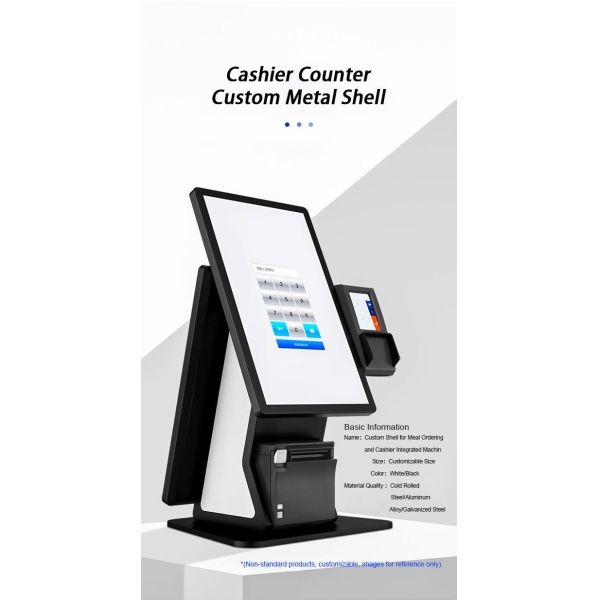

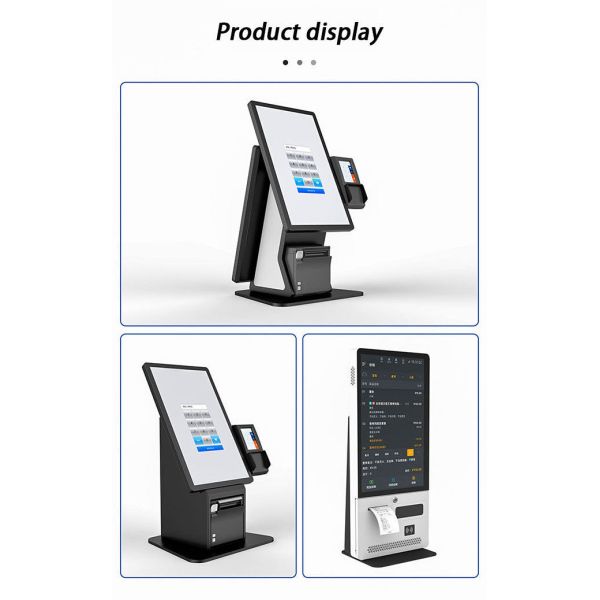

15.6 inch Automated Fast Food Kiosk Terminal for Retail and Hospitality


Tailor-made, Robust and Durable: Metal Shell Solutions for Desktop Automated Fast Food Kiosk

In the wave of digitalization in the catering industry, Desktop Automated Fast Food Kiosk have become crucial for improving efficiency and optimizing the customer experience. As their "armor" and "face," the shell not only affects the product's appearance but also directly impacts its durability, safety, and brand image. We focus on providing highly customized metal shell solutions, creating a robust and aesthetically pleasing "outer garment" for your self-service ordering and POS machines.


15.6 inch Automated Fast Food Kiosk Terminal for Retail and Hospitality

I. Core Product Features: Robust and Reliable, Tailor-made

Flexible Customization: ZXTLCD understands that standard sizes cannot meet all needs, therefore offering fully customizable size services to perfectly adapt to the internal structures of different hardware models.


Diverse Materials: Utilizing high-quality cold-rolled steel, aluminum alloy, galvanized steel, and other metal materials, we ensure robustness and durability while effectively protecting internal precision components, and also address requirements for lightweight design and heat dissipation.


Classic Color Schemes: Offering two classic mainstream color options—white and black—we easily blend into the design styles of various catering spaces, showcasing professionalism and simplicity.


15.6 inch Automated Fast Food Kiosk Terminal for Retail and Hospitality

II. Exclusive Customization Services: Comprehensive Support from Branding to Functionality

We offer more than just casings; we provide a complete customization service to help you create uniquely competitive products.


Brand Customization


You can easily integrate your brand logo and visual elements into our casings. From casing to packaging, we provide comprehensive branding services to strengthen brand awareness and help you expand into broader markets.


Functional Customization


You simply provide your specific requirements, and our experienced engineering team will handle the rest.

Whether it's special openings, interface layouts, heat dissipation structures, or internal bracket designs, we can precisely achieve them, ensuring the casing perfectly matches your functional needs—truly a "tailor-made" solution.


Service Customization


With years of industry experience, we deeply understand the differentiated needs of different markets for metal casings and brackets. We offer a one-stop service from design advice to marketing support, helping your products quickly gain market share.


15.6 inch Automated Fast Food Kiosk Terminal for Retail and Hospitality

III. Wide Range of Applications

Our customized metal casing solutions are highly versatile and suitable for numerous industries requiring durable, professional equipment:


Food and Beverage Industry (Core Applications): Self-service ordering machines, cash registers, kitchen display terminals, etc.


Commercial & Retail: Shopping mall information kiosks, vending machines, retail POS terminals.


Public Services: Hospital self-service registration and payment machines, government service hall inquiry and processing kiosks, bank self-service terminals.


Education & Entertainment: School information inquiry machines, stadium ticketing terminals, amusement park self-service equipment.


Enterprises & Professional Fields: Office information display screens, exhibition equipment, construction site industrial control computer protection, etc.


LCD Panel Parameters Screen Size 18.5 inch
Display area 409.8(H) X 230.4(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency 60Hz
PCAP Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature 0 ~ 50
Storage temperature below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size 520 X 345 X 110mm
The Gross weight of Unit Package 50kg


Choosing ZXTLCD's custom metal casing means choosing reliability, professionalism, and flexibility. Let us protect the "core" of your smart devices with a robust metal casing, while adding luster to your brand image. Whether you are a startup or a well-known brand, we can be your trusted hardware partner.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
