Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-SOK028
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
21.5 inch
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Operating Temperature :
0°C to 50°C
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Power Supply :
AC 100~240V, 50hz-60hz
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

21.5 inch High-Performance Food Ordering Kiosk Machine With Dual-Screen Display for Enhanced Interaction


The High-Performance Food Ordering Kiosk Machine is designed to revolutionize customer interaction and streamline the ordering process. Featuring a dual-screen display, it allows customers to browse product details, promotions, and special offers while placing their orders. This innovative design enhances engagement by delivering a more interactive and immersive experience.


Powered by high-performance hardware, the kiosk ensures smooth, fast, and reliable operation, even during peak hours. Its intuitive user interface makes navigation effortless, catering to customers of all technical backgrounds. The responsive touchscreen provides an efficient ordering process, minimizing wait times and improving overall service efficiency.


21.5 inch High-Performance Food Ordering Kiosk Machine With Dual-Screen Display for Enhanced Interaction



To meet modern business needs, the Food Ordering Kiosk Machine supports multiple payment options, including contactless payments, mobile wallets, QR code scanning, and traditional card transactions. This flexibility enhances customer convenience while ensuring secure, cashless transactions. Additionally, businesses can customize the kiosk’s software to align with their branding, offering a personalized experience that reinforces brand identity.


21.5 inch High-Performance Food Ordering Kiosk Machine With Dual-Screen Display for Enhanced Interaction


Designed for versatility, this Food Ordering Kiosk Machine is ideal for retail stores, showrooms, fast-food chains, high-end restaurants, airports, and entertainment venues. It features a durable construction built to withstand high-traffic environments, ensuring longevity and reliability. Furthermore, its energy-efficient design minimizes power consumption, reducing operational costs.


21.5 inch High-Performance Food Ordering Kiosk Machine With Dual-Screen Display for Enhanced Interaction


LCD Panel Parameters Screen Size 21.5 inch
Display area 476.5(H) X 268(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency 60Hz
PCAP Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature 0 ~ 50
Storage temperature below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m

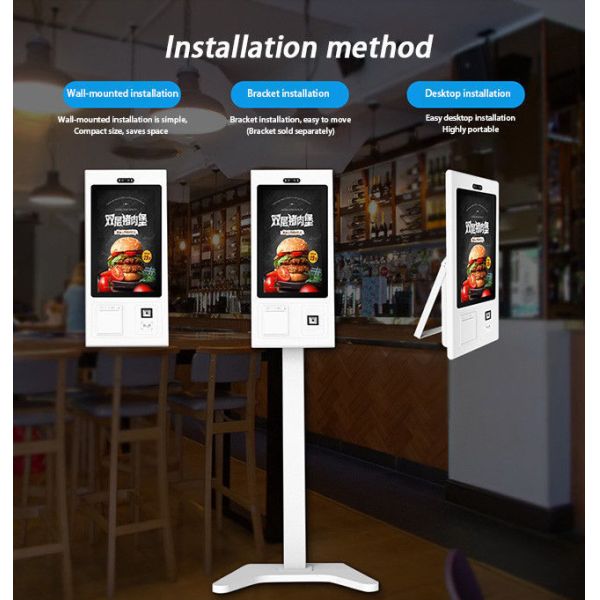

Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size 585 X 380 X 110mm
The Gross weight of Unit Package 50kg

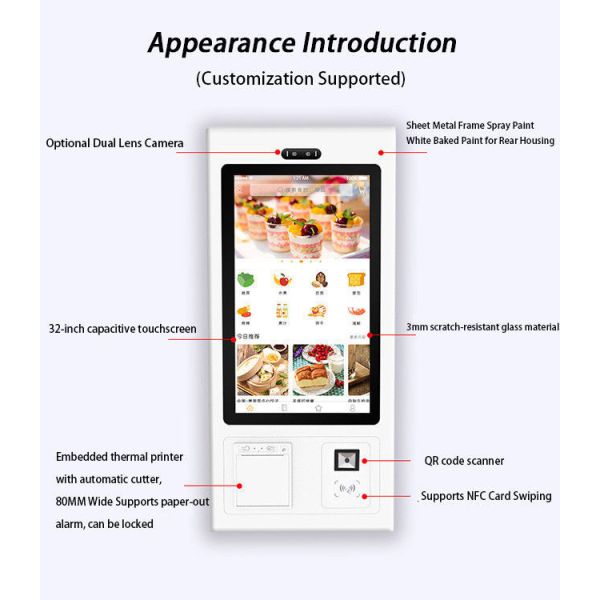

Key Features:

Dual-screen display for enhanced customer engagement


High-resolution touchscreen for crisp visuals and easy navigation


Seamless ordering process with an intuitive interface


Multiple payment options for cashless transactions


Customizable software for branding and promotional displays


Robust construction for durability in busy locations


Energy-efficient technology to reduce power consumption


This self-ordering kiosk is the perfect solution for businesses looking to enhance efficiency, improve customer experiences, and drive higher sales through digital transformation.


21.5 inch High-Performance Food Ordering Kiosk Machine With Dual-Screen Display for Enhanced Interaction


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
