Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-SOK012
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
21.5 inch
Resolution :
1920 X 1080
Panel type :
BOE Original A+ Grade IPS
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Operating Temperature :
0°C to 50°C
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Power Supply :
AC 100~240V, 50hz-60hz
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

21.5 Inch Customer Service Touchscreen Food service Restaurant Self Service Ordering Kiosk


In today's fast-paced life, the fast food industry faces the dual challenge of improving service efficiency while ensuring a positive customer experience. The 21.5-inch Restaurant Self Service Ordering Kiosk, with its large screen display, intuitive interface, and rich functional expansion capabilities, has become an ideal choice for optimizing fast food restaurant operations. This article will explore how the 21.5-inch Restaurant Self Service Ordering Kiosk can improve service levels and operational efficiency in the fast food industry, focusing on its unique advantages, innovative application scenarios, and practical operating experience.


21.5 Inch Customer Service Touchscreen Food service Restaurant Self Service Ordering Kiosk

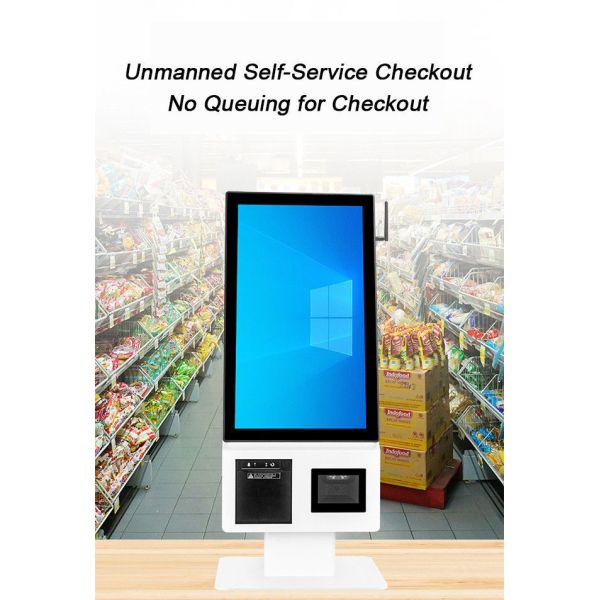

I. Self-service, Say Goodbye to Queues: The Ultimate Smooth Shopping Experience

The core mission of self-service checkout machines is to completely eliminate checkout queues. Customers use the device's built-in high-sensitivity scanner to scan product barcodes, and then quickly complete payment via mobile payment methods such as mobile phone scanning, facial recognition, or NFC. The entire process requires no employee intervention, reducing the average checkout time to less than one minute. This is especially suitable for customers buying small quantities of items and prioritizing efficiency, significantly improving shopping smoothness and satisfaction.


21.5 Inch Customer Service Touchscreen Food service Restaurant Self Service Ordering Kiosk

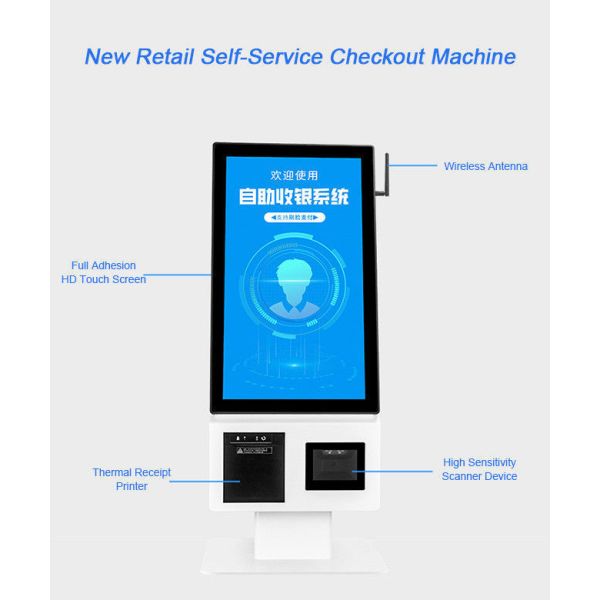

II. Smart Hardware Integration: High-Definition Touchscreen, High-Speed ​​Printing, and Stable Connection

The device integrates the core hardware required for retail POS systems:


High-Definition Large-Size Touchscreen: Provides clear and intuitive operation guidance and information confirmation interface.


High-Sensitivity Scanner: Quickly and accurately recognizes 1D/2D barcodes.


Thermal Receipt Printer: Automatically prints a receipt after successful payment.


Wireless Antenna: Ensures stable Wi-Fi/4G network connectivity and supports real-time data synchronization and updates.


21.5 Inch Customer Service Touchscreen Food service Restaurant Self Service Ordering Kiosk

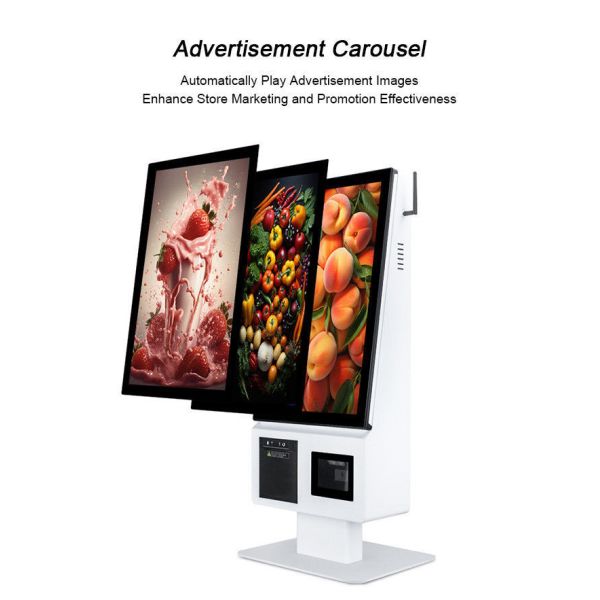

III. Advertising Carousel: Transforming Idle Screens into Marketing Platforms

The device features an intelligent advertising carousel mode. In standby mode or during checkout intervals, the screen automatically loops preset advertising images or videos, covering content such as:


Store Promotions


New Product Recommendations and Brand Promotions


Member Discount Information


Public Welfare or Friendly Reminders


This function transforms previously idle terminals into 24/7 online digital billboards, continuously enhancing store marketing exposure and promotional effectiveness, and improving space efficiency without incurring additional costs.


21.5 Inch Customer Service Touchscreen Food service Restaurant Self Service Ordering Kiosk

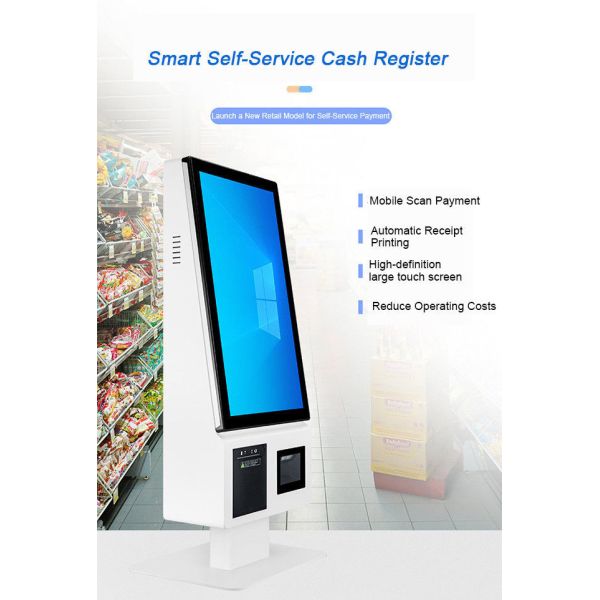

IV. Building a New Retail Model: A Smart Choice for Low Cost and High Efficiency

By deploying unmanned self-service checkouts, merchants can:


Significantly reduce operating costs: Reduce reliance on cashiers and optimize manpower structure.


Improve operational efficiency: Achieve 24/7 unmanned checkout capability and extend effective service time.


Optimize customer experience: Provide autonomous, private, and convenient payment options, catering to digital consumption habits.


Collect consumer data: Accumulate transaction data to provide decision support for product selection, pricing, and promotions.


21.5 Inch Customer Service Touchscreen Food service Restaurant Self Service Ordering Kiosk


Unmanned Restaurant Self Service Ordering Kiosk are not just checkout tools, but also key entry points for new retail stores to revolutionize efficiency, upgrade experience, and achieve digital management. They represent a shift from "people serving people" to "technology empowering people," helping merchants find the optimal balance between cost control and service quality, and confidently address the challenges and opportunities of the future retail market. Embracing unmanned self-service checkouts means choosing a smarter, more efficient, and more consumer-oriented future in retail.


LCD Panel Parameters Screen Size 21.5 inch
Display area 476.5(H) X 268(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency 60Hz
PCAP Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature 0 ~ 50
Storage temperature below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size 585 X 380 X 110mm
The Gross weight of Unit Package 50kg


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
