Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-SOK019
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Resolution :
1920 X 1080
Screen Size :
32 inch
Panel type :
BOE Original A+ Grade IPS
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Operating Temperature :
0°C to 50°C
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Power Supply :
AC 100~240V, 50hz-60hz
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

OEM ODM Self Ordering Kiosk 32 inch Interactive Burger King Self Service Kiosk

Multifunctional Interactive Terminal: A 32-inch Burger King Self Service Kiosk Defining a New Height of Industry Intelligence

In the ever-deepening wave of digital services, a powerful, high-quality, flexible, and deeply customizable self-service terminal has become a strategic choice for various industries to improve efficiency and optimize user experience. The 32-inch Burger King Self Service Kiosk, with its commercial-grade large screen, high-speed printing, multi-modal interaction, and flexible installation, not only meets basic service needs but also serves as a dynamic medium for brand communication and information dissemination, providing integrated intelligent solutions for various scenarios.


OEM ODM Self Ordering Kiosk 32 inch Interactive Burger King Self Service Kiosk

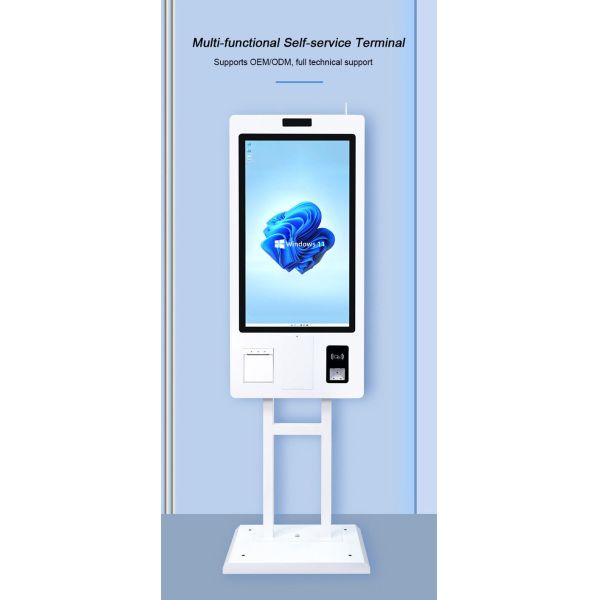

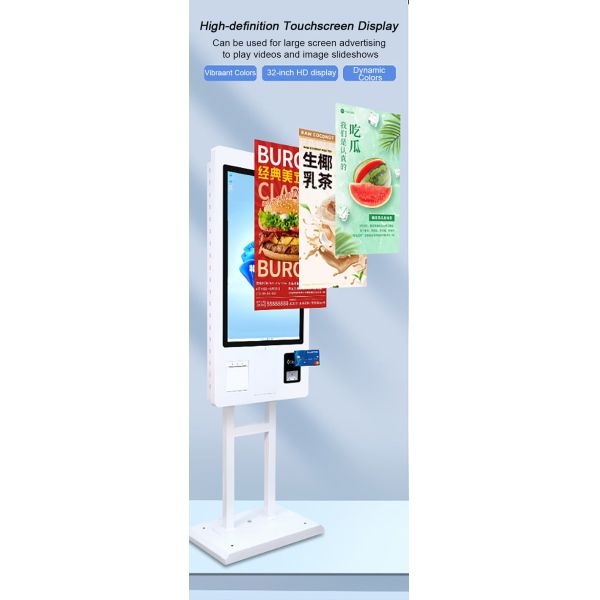

I. High-Definition Giant Screen, Dual Visual Effectiveness: Interactive Interface and Advertising Media Combined

The device is equipped with a 32-inch high-definition touchscreen display with vibrant colors and strong dynamic performance. This large screen not only provides a clear and intuitive self-service interface, guiding users to smoothly complete operations, but also serves as a large advertising display screen, continuously playing brand promotional videos, product image slideshows, or promotional information during standby or idle periods. This multi-functional screen improves service efficiency, unlocks potential marketing value, and enhances the information carrying capacity and atmosphere creation capabilities of the space.


OEM ODM Self Ordering Kiosk 32 inch Interactive Burger King Self Service Kiosk

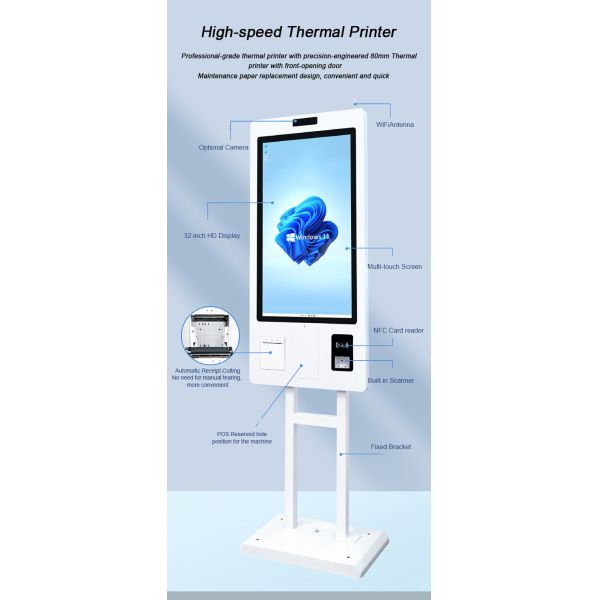

II. High-Speed ​​Silent Printing: Professional Thermal Printer, Convenient Maintenance

Integrating a professional-grade 80mm thermal printer, this machine features a precision structural design, offering high-speed printing and quiet operation. Its automatic paper cutter automatically cuts printed documents, eliminating the need for manual tearing and providing a more convenient and professional user experience. The printer compartment features a front-opening door design, eliminating the need for complex operations or moving equipment when changing paper rolls, simplifying daily maintenance and significantly reducing operating costs and downtime.


OEM ODM Self Ordering Kiosk 32 inch Interactive Burger King Self Service Kiosk

III. Multifunctional Hardware Integration: Modular Configuration, Expandable as Needed

The 32-inch Burger King Self Service Kiosk adopts a highly integrated modular design, ready for standard and advanced business applications:

Built-in Scanner: Supports rapid 1D/2D barcode recognition for product scanning and payment verification.


NFC Card Reader: Supports contactless IC card and membership card reading.


Optional Camera: For facial recognition payment, security monitoring, or visual interaction applications.


POS Reserved Interface: Provides expansion possibilities for connecting more peripherals (such as card readers and customer display screens).


WiFi Antenna: Ensures a stable and high-speed wireless network connection.


OEM ODM Self Ordering Kiosk 32 inch Interactive Burger King Self Service Kiosk


IV. Powerful System and Deep Support: Windows 11 and OEM/ODM Services The device runs on the stable Windows 11 operating system, offering strong compatibility and smooth operation of various professional applications. We also provide comprehensive OEM/ODM services and end-to-end technical support, from hardware design and structural customization to software pre-installation and brand identity integration. We can deeply customize solutions to meet specific customer needs, helping brand owners, integrators, and large enterprises create their own exclusive smart terminal products.


LCD Panel Parameters Screen Size 32 inch
Display area 698(H) X 391.8(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency 60Hz
PCAP Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature 0 ~ 50
Storage temperature below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m

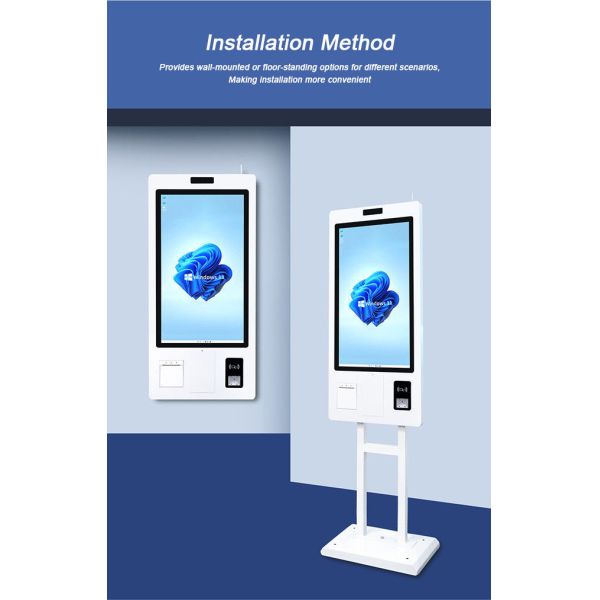

Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size 832 X 530 X 150mm
The Gross weight of Unit Package 50kg


The 32-inch Burger King Self Service Kiosk transcends the scope of a single-function device. It is a hub for intelligent interaction, an efficient service executor, and a platform for brand information dissemination. Whether it's restaurant ordering, retail POS, government services, hospital guidance, transportation ticketing, or corporate presentations, it provides customers with a one-stop intelligent upgrade solution through excellent hardware performance, flexible configuration options, and reliable system support, becoming a key bridge connecting the digital world and physical services.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
