Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-SOK043
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
21.5 inch
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Operating Temperature :
0°C to 50°C
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Power Supply :
AC 100~240V, 50hz-60hz
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

21.5 Inch Self-service Ordering Kiosks to Improve Restaurant Operational Efficiency and Service Quality


In today's fast-paced life, service efficiency and customer experience are paramount in the catering industry. The 21.5-inch self-service ordering terminal, with its moderate screen size, powerful hardware configuration, and flexible application scenarios, is an ideal choice for improving restaurant operational efficiency and service quality.


21.5 Inch Self-service Ordering Kiosks to Improve Restaurant Operational Efficiency and Service Quality

21.5-inch Self-Service Ordering Terminal: Exquisite Design and High Performance

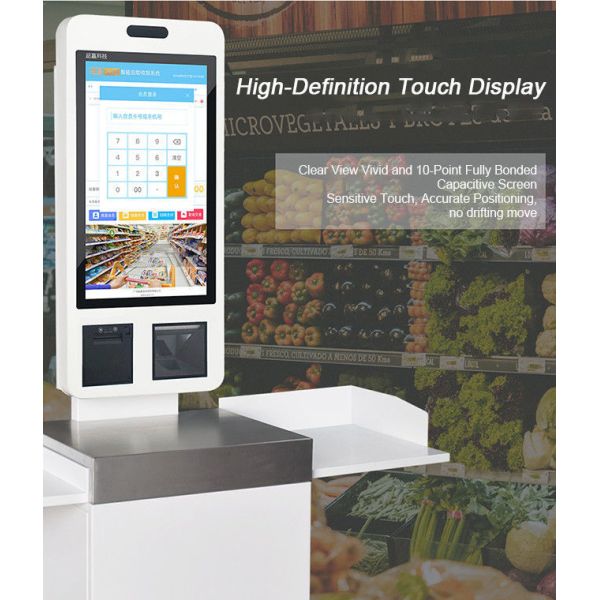

The 21.5-inch self-service ordering terminal is designed to balance aesthetics and practicality. Its 21.5-inch 1080P high-definition display not only provides a clear and detailed visual effect but also features a wide viewing angle, ensuring a good viewing experience for customers from any angle. The screen surface uses an anti-glare coating, maintaining clear visibility even in bright light and preventing reflections from affecting operation.


Internally, the device is equipped with a high-performance processor and large-capacity memory, ensuring smooth system operation and rapid response. Whether during peak hours or daily use, it can stably process orders and quickly respond to user operations. Furthermore, the terminal is equipped with a high-speed solid-state drive (SSD), further improving data read speed and system startup time, reducing customer waiting time.


21.5 Inch Self-service Ordering Kiosks to Improve Restaurant Operational Efficiency and Service Quality

21.5-inch Self-Service Ordering Terminal: Rugged and Durable Industrial-Grade Design

To adapt to various complex operating environments, the 21.5-inch self-service ordering terminal adopts industrial-grade design standards. The casing is made of high-strength aluminum alloy, possessing excellent pressure resistance and corrosion resistance, effectively resisting impacts and wear during daily use. The device also features an efficient heat dissipation system, ensuring stable temperature during prolonged high-load operation and extending its service life.


Furthermore, the terminal is waterproof and dustproof, achieving an IP65 protection rating, suitable for various commercial environments. Whether in a humid kitchen area or a high-traffic restaurant lobby, the device operates stably, reducing maintenance costs and failure rates. This rugged and durable design makes the 21.5-inch self-service ordering terminal a reliable long-term choice for businesses.


21.5 Inch Self-service Ordering Kiosks to Improve Restaurant Operational Efficiency and Service Quality

21.5 Inch Self-service Ordering Kiosks to Improve Restaurant Operational Efficiency and Service Quality

21.5-inch Self-Service Ordering Terminal: Flexible Installation Options

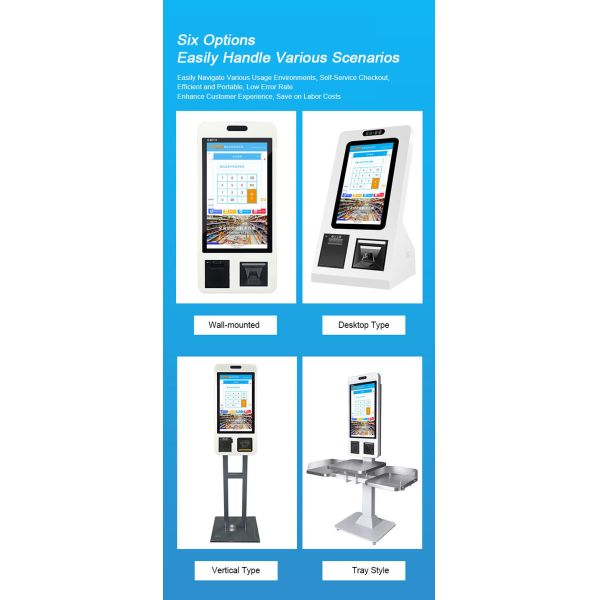

The 21.5-inch self-service ordering terminal supports multiple installation methods, allowing for flexible placement according to actual needs. In addition to the common vertical installation, the device can also be wall-mounted or recessed into a desktop to meet the needs of different space layouts. For example, in small fast-food restaurants, a desktop embedded installation can be chosen to save valuable counter space; while in large restaurants or shopping malls, a freestanding or wall-mounted installation can be used for convenient customer access.


The device is equipped with a height-adjustable stand at the bottom, allowing the screen height and angle to be adjusted according to the user's height and usage habits, providing a more comfortable interactive experience. Furthermore, the terminal supports a modular design, facilitating future expansion and upgrades, such as adding payment modules, printers, or other peripherals to further enhance its functionality.


21.5 Inch Self-service Ordering Kiosks to Improve Restaurant Operational Efficiency and Service Quality


With its elegant design, powerful hardware performance, and flexible installation options, the 21.5-inch self-service ordering terminal has become an indispensable part of the modern catering industry. Whether it's providing a clear menu display through a high-definition screen or ensuring stable operation over long periods through a robust and durable industrial-grade design, this device demonstrates its outstanding application potential. For businesses seeking to improve customer experience and operational efficiency, the 32-inch self-service ordering terminal is undoubtedly a worthwhile investment.


LCD Panel Parameters Screen Size 21.5 inch
Display area 476.5(H) X 268(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency 60Hz
PCAP Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature 0 ~ 50
Storage temperature below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size 585 X 380 X 110mm
The Gross weight of Unit Package 50kg
