Specifications
Type of backlight :
OLED
Brightness :
200-600cd/㎡ Automatic adjustment
MOQ :
1
Panel transparency :
43%(Typ.)
Audio system :
Built-in 10 W X 2 Speakers
Contrast ratio :
135000:1
Brand Name :
ZXTLCD
Delivery Time :
3-5 working days
Certification :
CE/Rohs/FCC
Resolution :
1080*1920
Price :
negotiable
Screen Size :
55 inch
Model Number :
ZXTLCD-OLED-T55-WPXA
refresh rate :
120Hz
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Packaging Details :
wooden case, carton, flight cases are optional
Viewing Angle :
178 °, 178 °
Place of Origin :
Guangdong, China
Supply Ability :
2000 pcs per month
Protype :
Desktop / Floor standing / Interactive(Optional)
Description

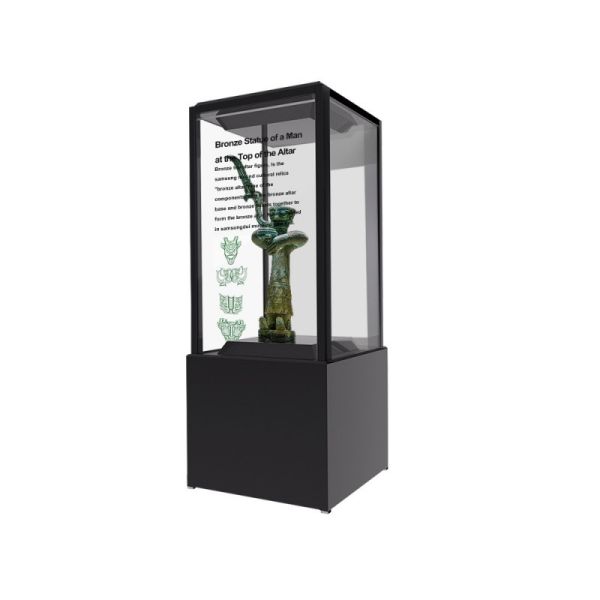

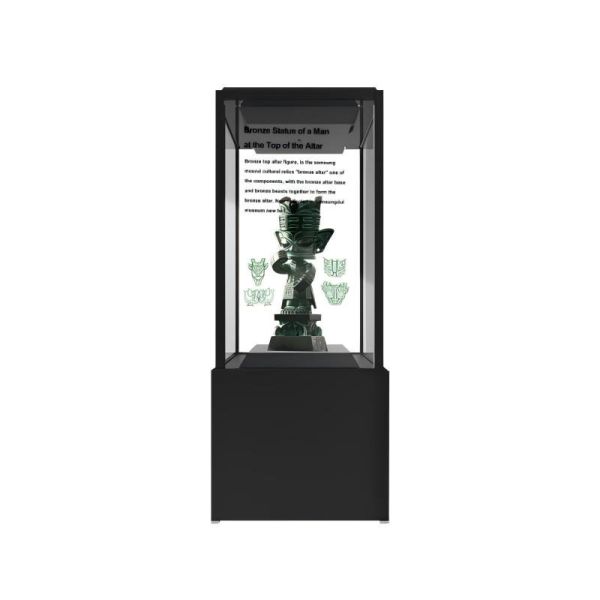

55 Inch OLED Self-luminous Window System HDR Support Cultural Relics OLED Transparent Display Showcase

Transform Museum Windows into Interactive Cultural Storytelling Spaces

The 55 Inch OLED Self-Luminous Window System is an advanced transparent display solution designed specifically for museums, cultural heritage centers, galleries, and historical exhibition environments. Unlike traditional glass display cases, this transparent OLED display transforms ordinary showcase windows into dynamic storytelling platforms, combining physical cultural relics with high-definition digital content.


Powered by self-emissive OLED technology, the screen delivers vivid colors, deep contrast, and high transparency, allowing visitors to clearly observe both the artifact and its digital interpretation simultaneously without visual obstruction.


55-inch Cultural Relics Exhibition Showcase Transparent Equipment(ZXTLCD-T55-WPXA)
LCD Panel Parameters
Screen Size 55 inch
Panel type Transparent OLED
Resolution 1080*1920
Brightness 200-600cd/ Automatic adjustment
Contrast Ratio 135000:1
Viewing angle(up/down/left/right) 178°(H)/178°(V)
Response Time 0.1ms(Gray To Gray)
Display color 10bit(R),1.07 billon colors
Onboard interface
Input Interface USB*1 + HDMI*1 +DP*1+RS232*1
Output interface TBD
Touch Method
Capacitive Touch screen Default 10 points Capacitive Touch
Power Specifications
Power supply AC 100-240V
Total System Power Consumption <200W
Machine Operating Parameters
running time 7*12h
Screen life 30000h
Operating temperature 0~40
Operating Humidity 20%~80%
structure
Material Aluminum+Tempered Glass+Metal
external dimensions 810*810*2053.5(mm)
Overall dimensions 920*920*2190mm
Installation Method Integrated base
Net weight / Gross weight 108KG/180KG
Accessories
Power cord, HDMI cable, remote control, certificate of conformity and warranty card
other
After-Sales Service 1-Year Warranty

Designed for Cultural Heritage and Exhibition Innovation

Enhance Artifact Storytelling with Digital Overlay

This transparent OLED screen enables museums to present layered content directly over cultural relics, including historical background, restoration details, 3D animations, multilingual explanations, and interactive narratives. This approach significantly improves visitor understanding and engagement while preserving the authenticity of physical exhibits.

Window-Type Integration for Showcase Environments

The system is designed for installation in glass window structures and exhibition cabinets, turning static display cases into intelligent information surfaces. Its frameless and ultra-thin structure ensures that it does not interfere with the visual integrity of cultural artifacts, making it ideal for high-end museum presentation standards.

Premium HDR Visual Performance

With HDR support, Full HD resolution, wide color gamut, and fast refresh rate, the display ensures highly detailed and realistic visual performance. The self-luminous OLED panel eliminates the need for backlighting, delivering superior contrast, consistent brightness, and wide viewing angles for all visitors.


The transparent nature of the screen allows real objects and digital content to coexist, creating a layered visual experience that enhances cultural storytelling.


55 Inch OLED Self-Luminous Window System with HDR Support for Cultural Relic and Museum Display

Ideal Applications

This transparent digital signage solution is widely used in:

  • Museums and cultural heritage centers
  • Historical artifact exhibition halls
  • Art galleries and installations
  • Science and technology museums
  • Educational institutions and research centers
  • Cultural tourism exhibition spaces
  • Interactive museum showcase cabinets
  • Public cultural experience zones

FAQ

What is a transparent OLED window system?

It is a transparent OLED display integrated into glass window or showcase structures, allowing digital content to overlay physical exhibits.

What is the benefit for museums?

It enhances storytelling by combining real artifacts with interactive digital information, improving visitor engagement and education.

Does it support HDR content?

Yes. The system supports HDR playback for higher dynamic range, better contrast, and more realistic visual performance.


The 55 Inch OLED Self-Luminous Window System with HDR Support is a cutting-edge solution for modern museum and cultural exhibition design. By merging transparent OLED technology with interactive storytelling, it transforms traditional showcase windows into immersive digital-cultural experience platforms.
