Specifications
Price :
negotiable
Place of Origin :
Guangdong, China
MOQ :
1
Type of backlight :
OLED self-luminous
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Screen Size :
30 inch
Brand Name :
ZXTLCD
RAM :
16GB
refresh rate :
120Hz
Packaging Details :
wooden case, carton, flight cases are optional
Supply Ability :
2000 pcs per month
Resolution :
1366*768
CPU :
14th Gen Intel I9-14900KF Proceesor
Input Voltage :
AC 100~240V, 50hz-60hz
Delivery Time :
3-5 working days
SSD :
512GB
Discrete Graphics card :
12GB GIGABYTE 4070
Protype :
Desktop / Floor standing / Interactive(Optional)
Model Number :
ZXTLCD-OLED030V007
Onboard interface :
1 X RJ45, 2 X HDMI, 4 X USB2.0
Certification :
CE/Rohs/FCC
Description

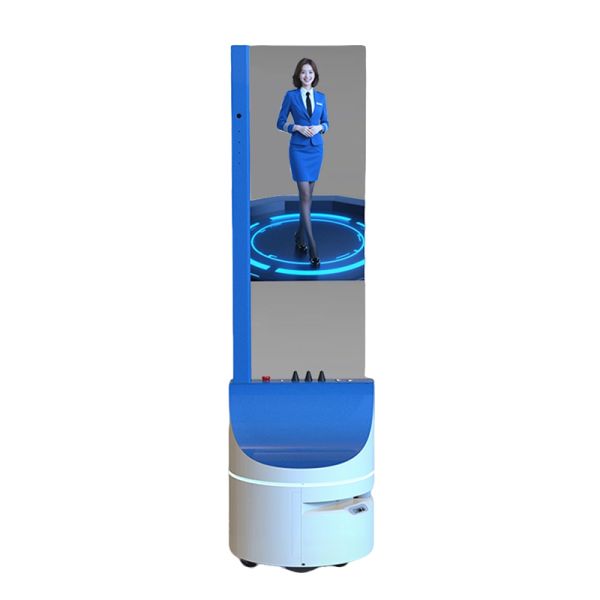

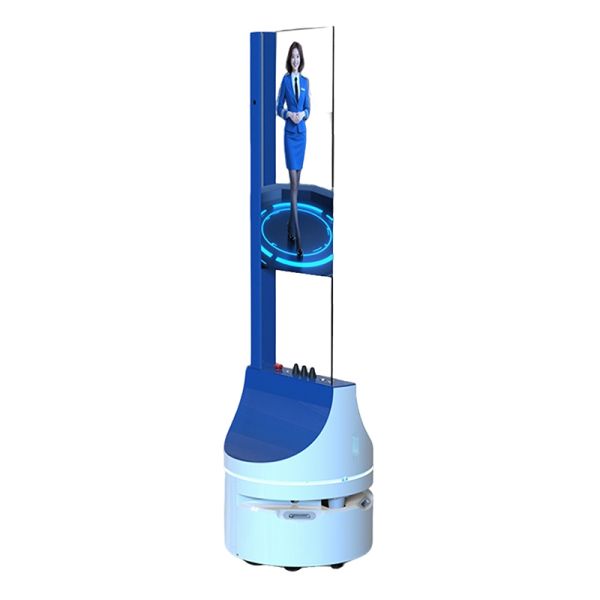

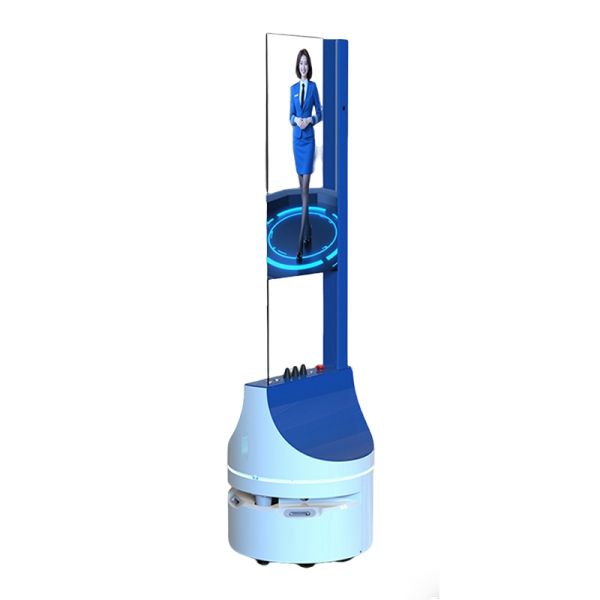

30 Inch Smart Mobile Advertising Robot with Transparent OLED Interactive Display for Shopping Malls


Next-Generation Transparent OLED Mobile Advertising Solution


The 30 Inch Smart Mobile Advertising Robot with Transparent OLED Display is an advanced commercial solution designed for shopping malls, retail stores, exhibition centers, hotels, museums, and corporate environments. It combines a high-performance transparent OLED display, autonomous mobility system, and interactive AI functions to deliver a dynamic and engaging advertising experience.


Unlike traditional static digital signage, this intelligent robot can move freely within indoor environments, actively interact with customers, and display floating visual content through a transparent OLED screen, making it a powerful tool for modern transparent digital signage applications.

As a professional OLED display manufacturer, we focus on developing innovative solutions that enhance brand visibility and customer engagement through cutting-edge display technology.


High-Performance Transparent OLED Screen with Interactive Function


Self-Emissive OLED Technology with Stunning Visual Effects


The integrated transparent OLED screen uses self-luminous pixel technology, eliminating the need for a backlight and enabling ultra-thin, high-contrast, and highly transparent display performance.


Key display features include:


  • 30-inch transparent OLED panel
  • 43% transparency for see-through visual effect
  • Full HD resolution with vivid color reproduction
  • High contrast ratio and deep blacks
  • Wide 178° viewing angle
  • Smooth animation playback for dynamic content

This allows digital content to appear as if it is floating in mid-air while still revealing the physical environment behind the screen.



screen parameters

Panel size

30 inches.

Panel type

OLED

display area

664.29Mm * 373.48mm

external dimensions

676.09Mm × 387.48mm × 1.6mm (width × height × thickness)

transmittance

43%

viewing angle

178 °, 178 °

static contrast

100000:1 (Typ.) Transmission

Dynamic Contrast

200000:1 (Typ.) Transmission

patchwork

Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/8.1 (left/right/top/bottom)

screen scale

16:9

brightness

200-600 (nits)

Best resolution

1366*768

Screen life

≥ 30000 hours

power

≤ 130W

Display color

10-Bit, 1.07B (1B = 1 billion)

Speaker

8Ω/5W * 2

screen gross weight

Screen weight 1.04kg

Gross weight of the whole machine

to be determined

environment

Working temperature 1 ℃~ 45 ℃

working humidity

30%~80%

running time

18 hours x 7 days

Ambient height

(Altitude) 0~ 5000m

response time

8ms

working voltage

100V-240VAC, 50/60Hz

Fitting method

frame sticker

Fitting method (optional)

Full fit

Driver Board

input interface

HDMI IN

USB

USB 2.0

DP

DP IN

weight

0.4Kg

Control signal IN

RS232 serial port (RJ45)

Control signal OUT

RS232 serial port (RJ45)

function

With splicing function

protect

Anti-afterimage, anti-burn, repair function

Touch screen parameters: capacitance standard

touch technology

Capacitive touch technology

positioning accuracy

3Mm

Installation method

Built-in integrated

writing method

Finger ≥ 5mm

touch points

10 touch writing

Writing screen medium

5-8Mm tempered high transparency glass

response speed

≤ 5ms

computer driven

drive-free

mode of communication

USB

service life

≥ 60 million times

PC configuration (optional)

main board

Intel Core

CPU

4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional)

Memory

4G/8G/16G-DDR3 (optional)

Hard disk

SSD120G/240G/480-HDD500G/1T/2T (optional)

nuclear display

Intel HD Graphics 4000

Backplane I/O

1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output)

Operating System

Win 7/Win 10 operating system

Android configuration (standard)

master control

RK3588

CPU

Quad-core Cortex-A55 clocked at up to 1.92 GHz

Memory

4G

storage

64G

Operating System

Android 11

Power supply battery parameters

Power input (charger)

AC 220V

battery life voltage

28.4V--7A

battery life capacity

Lithium iron phosphate 25.6V/25Ah

Charging method

Low battery automatic recharge. You can also manually send back the pile command.

Time required to fully charge

7A (about 4 hours) (can be automatically recharged)

Battery life

More than 2000 full charge and discharge cycles

Power consumption of the whole machine

< 200W

packing list

Package size

Honeycomb box:/

Air box (default): 65 * 57 * 198CM

Weight information

Bare metal weight: 75KG

Packing weight (bare metal + air box): 135KG

name

With PC/Android

Specifications

quantity

Remarks

transparent display

30 inch OLED transparent screen

1 piece

system

Customized according to actual needs (built-in)

1 set

remote control

Universal version (without battery)

1

Power cord

National standard 1.5 meters

Article 1

Charging pile

Wireless charging pile

1 set

Warranty card certificate

Chinese version

1 sheet

Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment.



Autonomous Mobile Advertising Robot System


The key advantage of this solution is its intelligent mobility system.

Core capabilities include:

  • Autonomous indoor navigation
  • Obstacle detection and avoidance
  • Pre-set route advertising mode
  • Automatic return-to-charging function
  • Stable long-time operation in public spaces

By moving through high-traffic areas, the robot significantly increases advertisement exposure compared to fixed digital signage.


30 Inch Smart Mobile Advertising Robot with Transparent OLED Interactive Display for Shopping Malls

OEM & ODM Support from OLED Display Manufacturer


As an experienced OLED display manufacturer, we provide full OEM and ODM customization services for global clients.


Customization options include:

  • Robot exterior design and branding
  • Android or Windows system integration
  • AI voice interaction modules
  • Navigation software customization
  • Touch and non-touch configurations
  • CMS remote content management system
  • Hardware interface customization

We support distributors, system integrators, and commercial solution providers with complete turnkey solutions.


FAQ


What is a transparent OLED display robot?


It is a mobile advertising device that integrates a transparent OLED screen with autonomous navigation and AI interaction for dynamic commercial advertising.


What are the advantages of a transparent OLED screen?


It provides a see-through visual effect, high contrast, vivid colors, and ultra-thin structure, making digital content appear floating in space.


Can the robot move automatically?


Yes, it supports autonomous navigation, obstacle avoidance, and automatic charging for continuous operation.


Is it suitable for commercial use?


Yes, it is designed for retail, exhibitions, malls, airports, and other indoor commercial environments.


30 Inch Smart Mobile Advertising Robot with Transparent OLED Interactive Display for Shopping Malls


30 Inch Smart Mobile Advertising Robot with Transparent OLED Interactive Display for Shopping Malls


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
