Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OLED055F004
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
55 inch
Type of backlight :
OLED self-luminous
Resolution :
1080×1920
refresh rate :
120Hz
Panel transparency :
40%(Typ.)
Standard colours :
1.07B(10bit)
Appearance Color :
White/Black/Customization
Brightness :
200-600 (nits)
Contrast ratio :
150000:1
Viewing Angle :
178 °, 178 °
Audio system :
Built-in 10 W X 2 Speakers
Built-in wifi :
150Mbps 802.11n wifi integate
OS :
Android or Windows optional
Touchscreen type :
Projected Capacitive Touch screen
Touch points :
10 points
CPU :
14th Gen Intel I9-14900KF Proceesor
RAM :
16GB
SSD :
512GB
Discrete Graphics card :
12GB GIGABYTE 4070
Input Voltage :
AC 100~240V, 50hz-60hz
Onboard interface :
1 X RJ45, 2 X HDMI, 4 X USB2.0
Protype :
Desktop / Floor standing / Interactive(Optional)
Description

Transparent OLED Display 55 Inch with Optional Full Lamination (<100m) AR Coating Capacitive Touch Indoor Use


Features:


1. High transparency: OLED transparent screens achieve high transparency, allowing users to see through the screen to the background scenery.


2. Ultra-thin design: Using OLED technology, the screen is very thin and can be easily integrated into various designs.


3. High contrast: OLED technology provides high contrast and vibrant colors, resulting in vivid and realistic image quality.


4. Wide viewing angles: The screen maintains clear images from multiple viewing angles.


5. Strong flexibility: Transparent screens can be customized into different shapes and sizes to meet various scene requirements.


Functions:


1. Display content: Can display text, images, videos, and other multimedia content.


2. Touch functionality: Some models support touch operations, enhancing user interaction experience.


3. Multi-screen linkage: Supports multiple transparent screens linked together for expanded display areas.


4. Product Display: Can be used to showcase products, models, artworks, etc., The transparent display effect brings novelty, attracting more viewers.


Advantages:


1. Innovation: Transparent screen technology showcases innovation and progress in technology, attracting users' attention.


2. Communication effectiveness: Transparent screens can be used to display products, information, and enhance communication effectiveness.


3. Aesthetics: The thin, transparent design makes transparent screens more aesthetically pleasing, suitable for commercial displays, retail showcases, etc.


4. Attention-grabbing: Used in commercial displays, event venues, etc., transparent screens can attract more audience attention.


55 Inch Transparent OLED Floor-Standing Display
LCD Panel Parameters
Screen Size 55 inch
Panel type OLED
transmittance 40%(Typ.)
Max Resolution 1080×1920
Aspect Ratio 16:9
Brightness 600/200 cd/m2
Contrast Ratio 150000:1
Viewing angle(up/down/left/right) R/L 178°(Min.), U/D 178°(Min.)
Response Time 0.1ms(Gray To Gray)
Display color 1.07B(10bit)
Onboard interface
port HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1
Touch Method
Capacitive Touch screen(Optional) Default 10 points Capacitive Touch
Power Specifications
Power supply 100-240V~, 50/60Hz
Total System Power Consumption ≈85W System Not Included
Machine Operating Parameters
running time 7*12h
Screen life 30000h
Operating temperature 0~40
working humidity 20%~80%
structure
Material Aluminum+Tempered Glass+Metal

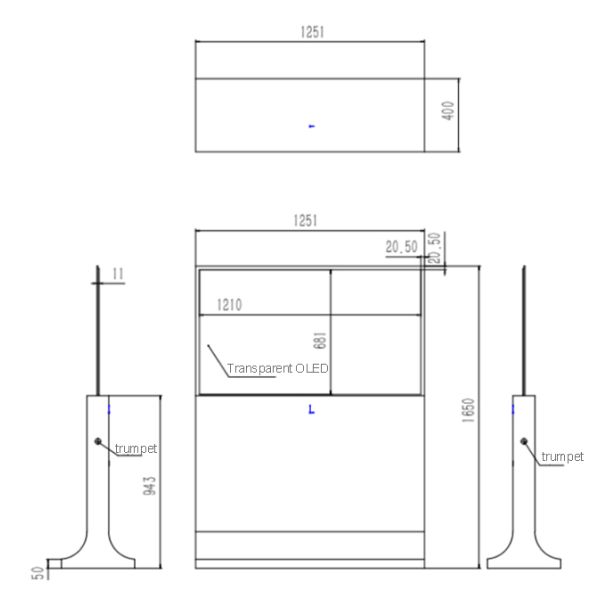

external dimensions 1251mm×400mm×1650mm Refer to the structural dimension drawings.
Package size 1310mm×500mm×1730mm
Installation Method Floor-standing
Net weight 60KG
Accessories
Power Cord,Remote Control
other
After-Sales Service 1-Year Warranty
