Specifications
Operating Temperature :
0°C to 50°C
Touch Screen :
10-point capacitive touch screen
View Angle :
178°/178° (H/V)
80mm Thermal Printer :
Support, built-in
Application :
Hospitality, hotel and catering
Power Consumption :
80W
NFC Reader/scanner/QR reader :
Support, built-in
Screen Size :
17 inch
Resolution :
1920 X 1080
Cabinet material :
Metal case + Glass
Protype :
Desktop / Floor standing /wall mounted(Optional)
Brightness :
350cd/m²
Passport Scanner :
Optional
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM170SL
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
POS terminal installation :
Resever space
Description

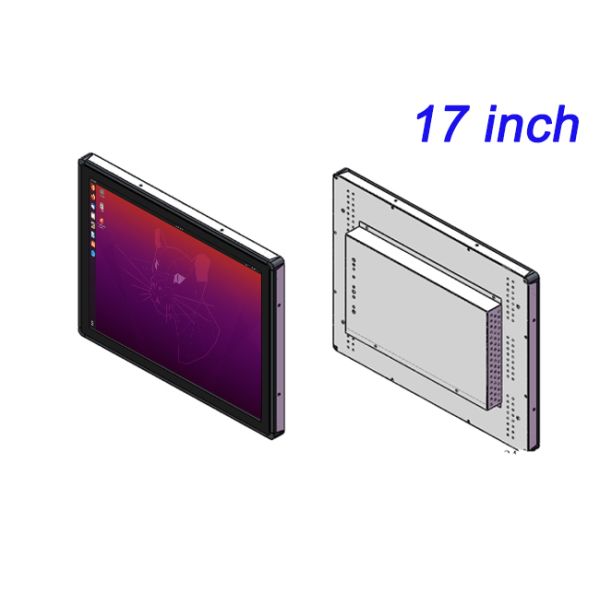

17 inch Embedded Industrial Panel Mount Monitors IPS Full View Widescreen LCD Display


Industrial Panel Mount Monitors: Building the "Technology Coordinate System" for Industrial Intelligence

In the ongoing digital transformation of industrial automation, industrial Panel Mount Monitors brands act as both setters of technical standards and enablers of industry-specific applications. With differentiated product portfolios and ecosystem service capabilities, they provide the underlying hardware support for intelligent upgrades in manufacturing, energy, transportation, and other fields, establishing a "technology coordinate system" for the industrial control domain.


17 inch Embedded Industrial Panel Mount Monitors IPS Full View Widescreen LCD Display

Scenario-Driven Technological Breakthroughs by Leading Brands

Global top-tier industrial all-in-one brands have developed distinct competitive advantages through deep vertical expertise.


Renowned brands such as Siemens, Advantech, Kontron, and Beckhoff leverage their military-grade reliability designs and edge computing + AIoT capabilities. This enables their all-in-one computers to not only possess secure, stable, and durable characteristics but also to fully realize their potential within smart application scenarios.


17 inch Embedded Industrial Panel Mount Monitors IPS Full View Widescreen LCD Display

The Ecosystem Strategy of Emerging Brands

Alongside product innovations from industry giants, Chinese domestic brands are capturing market share through cost-effectiveness and rapid responsiveness. Addressing the fragmented demands of Industry 4.0, emerging industrial all-in-one brands like Zhixiantong are building differentiated advantages via flexible ecosystems:


Modular Design: Introducing structural designs with replaceable CPU/GPU modules allows users to upgrade computing power without replacing the entire unit, saving up to 60% in hardware iteration costs in machine vision inspection scenarios.


Cloud-Edge Collaboration: Integration with specific IoT platforms enables direct cloud connectivity for industrial computers, facilitating remote parameter optimization for injection molding machines and improving fault diagnosis efficiency by fivefold.


Industry-Specific Kits: Developing corrosion-resistant all-in-ones for medical equipment, with housings certified for ISO 10993 biocompatibility, suits frequent sterilization in operating rooms and extends touchscreen lifespan to 10 years.


17 inch Embedded Industrial Panel Mount Monitors IPS Full View Widescreen LCD Display


From international giants to domestic contenders, the competition among industrial all-in-one brands fundamentally revolves around the depth of understanding industrial scenarios. Whether establishing barriers with core technologies or breaking boundaries through ecosystem collaboration, they collectively propel industrial control equipment toward higher reliability, intelligence, and integration, injecting sustained momentum into global smart manufacturing.


LCD Panel Parameters Screen Size 17 Inch
Display Area 337.9 mm.(Height) X 270.3(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1280 X 1024
Display Color 16.7M , 72% NTSC
Brightness 250cd/m²
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 20ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Internal computer configuration
(Choose one of two)
CPU i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Linux Linux
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 385 X 317 X 51.7mm.
Net Weight 5.5 Kilogram
Package Size 44.3 X 38 X 10.5Centimeter
Gross Package Weight per Unit 6 Kilogram


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
