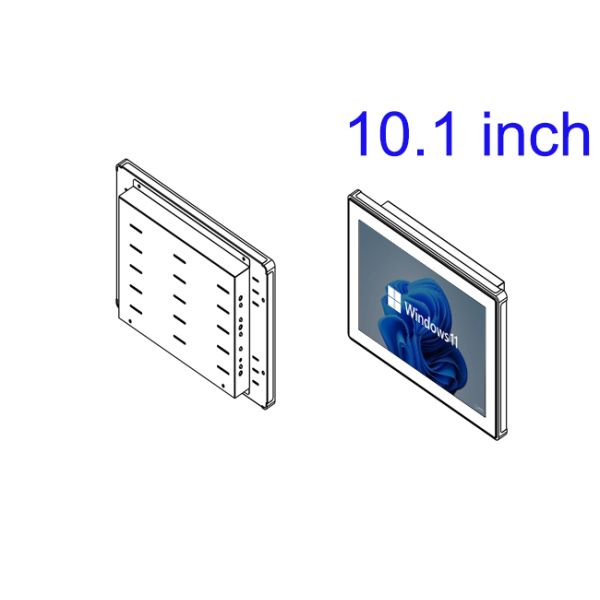

Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor
Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor
Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor
Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor
Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor
Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor
Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor
Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor
Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor
Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM101SW
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
10.1 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor


Embedded Industrial LCD Monitor: The 'Seamless Integration' Concept

The embedded Industrial LCD Monitor, guided by the principle of "seamless integration," serves as an invisible interactive hub for medical equipment, smart production lines, and public service terminals. It combines industrial-grade stability with spatial aesthetics, silently supporting the visual operation of critical equipment in harsh environments.


Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor

Industrial Design: Unobtrusive Integration into Equipment

The cold-rolled metal shell is formed through integrated stamping, with a thickness of only 48mm, allowing it to be seamlessly embedded into equipment cabinets such as medical detectors and CNC machines. A fanless cooling architecture, paired with honeycomb airflow vents, enables 72 hours of continuous operation without overheating (core temperature ≤50°C). Certified for -10°C to 60°C wide-temperature operation and IP54 protection, it resists frost in cold storage scanning terminals and withstands metal dust impact in foundry workshops.


Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor

Intelligent Software Ecosystem Driving Scenario Upgrades

Pre-installed with Linux/Windows IoT systems and supporting OPC UA and Modbus TCP protocols, it can directly connect to PLC and MES systems. In medical scenarios, customized interfaces simultaneously display CT images and patient vital signs; in smart factories, data dashboards centrally showcase OEE (Overall Equipment Effectiveness) and energy consumption curves.


An open SDK toolkit allows customers to perform secondary development of UI interfaces and alarm logic, meeting rapid deployment needs for scenarios such as nucleic acid testing booths and government self-service kiosks.


Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor

Energy Efficiency and Durability Redefining Operational Value

Utilizing low-power LED backlight modules (power consumption <18W) and industrial wide-voltage power supplies (12-24V DC), it reduces annual electricity costs by over 40% in 7×24 operational scenarios like airport self-check-in terminals and substation monitoring centers.


The metal shell, combined with an anti-corrosion coating, triples the device lifespan in salt-fog environments such as coastal ports and chemical workshops, extending maintenance cycles from 3 months to 2 years.


LCD Panel Parameters Screen Size 10.1 Inch
Display Area 217 mm.(Height) X 135.6(Width)mm.
Aspect Ratio 16 : 9 16 : 10
LCD Type a-Si TFT-LCD Monitor a-Si TFT-LCD Monitor
Maximum Resolution 1280 X 800 1920 X 1200
Display Color 16.7M, 50% NTSC 16.2M , 50% NTSC
Brightness 400cd/m² 1000cd/m²
Contrast Ratio 900 : 1 1000 :1
Viewing Angle (Up/Down/Left/Right) 85°/85°/85°/85° (Type)(CR≥10) 80°/80°/80°/80° (Type)(CR≥10)
Response Time 30ms 30ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Internal computer configuration
(Choose one of two)		 CPU i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Win10 or win11 Optional Win10 or win11 Optional
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 15 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃

Stereo Speaker Length 1.5m
Package Size Device Dimensions 259.62 X 177.62 X 41.6 mm.
Net Weight 2 Kilogram
Package Size 31 X 23.3 X 11Centimeter
Gross Package Weight per Unit 4 Kilogram


From nucleic acid analyzers to smart warehouse robots, the Industrial LCD Monitor undertakes the interactive mission of critical equipment in an "invisible" manner. With military-grade hardware and a flexible software ecosystem, it provides a cost-effective pivot for digital upgrades across industries.


if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
