Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM430SM
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
43 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

43 inch Embedded HDMI Input LCD Display Wholesale Manufacturer Customized


Customized Input LCD Display: The Reliable Mainstay in Industrial Control Scenarios

In today's rapidly evolving industrial automation landscape, equipment durability, stability, and intelligence have become critical factors. The new generation of Customized Input LCD Display, with their high integration, specialization, and multifunctional advantages, serve as reliable workhorses in industrial control scenarios.

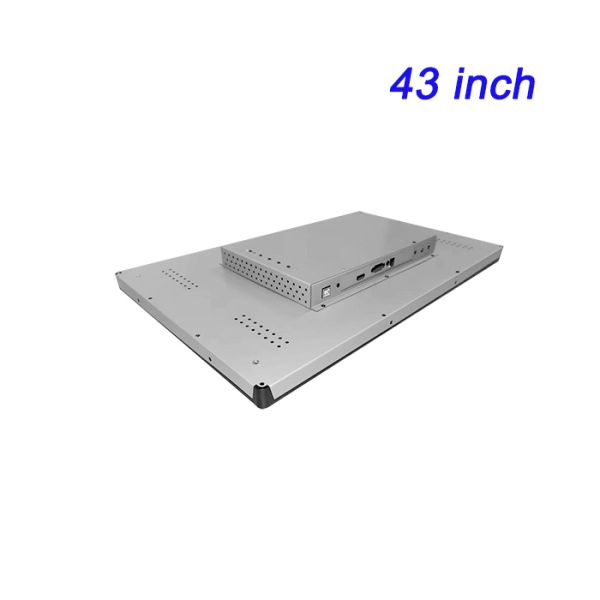

The device features an exquisite metal industrial body that balances texture and sturdiness. It is lightweight and portable yet maintains a professional demeanor. The fully sealed housing design effectively prevents the intrusion of dust, moisture, and oil, providing all-weather protection for the equipment and adapting to a wider range of industrial environments—whether in power dispatch centers, water monitoring platforms, or control hubs in petrochemical workshops, it handles all with ease.


43 inch Embedded HDMI Input LCD Display Wholesale Manufacturer Customized

Customized Input LCD Display: Comprehensive Performance Upgrade

Traditional industrial computers often feature rear power switches and fan-based cooling, which not only complicate wiring but also tend to accumulate dust and generate noise. In contrast, the new generation of fully sealed all-in-one PCs adopts front-facing USB interfaces and waterproof switch designs for convenient operation. It replaces fan-based cooling with an efficient thermally conductive aluminum alloy structure and dense heat sinks, maintaining long-term stable operation in a silent state, truly achieving "zero noise, zero maintenance."


43 inch Embedded HDMI Input LCD Display Wholesale Manufacturer Customized

Intelligent Compatibility for Effortless Configuration Integration

It fully supports multiple mainstream systems and industrial configuration software, such as Windows 7/10 and Linux, and is compatible with most automation platforms on the market.


The device is widely used in power systems, urban water supply, oil and gas chemicals, smart buildings, and other fields, enabling one-stop intelligent operations such as data acquisition, remote monitoring, real-time analysis, and process control.


Rich Interfaces for Flexible Use

Built with abundant I/O interfaces, it meets the connection needs of various external devices, such as USB, COM serial ports, LAN network ports, and HDMI/VGA video outputs.

It can be customized and expanded based on actual project requirements, facilitating industrial data interoperability and achieving high system integration.


43 inch Embedded HDMI Input LCD Display Wholesale Manufacturer Customized

Standard Package + Optional Support

The package includes an adapter, power cable, user manual, and warranty card. Optional accessories such as desktop stands and wall mounts are available to suit different on-site needs, enabling more flexible deployment.


LCD Panel Parameters Screen Size 43 Inch

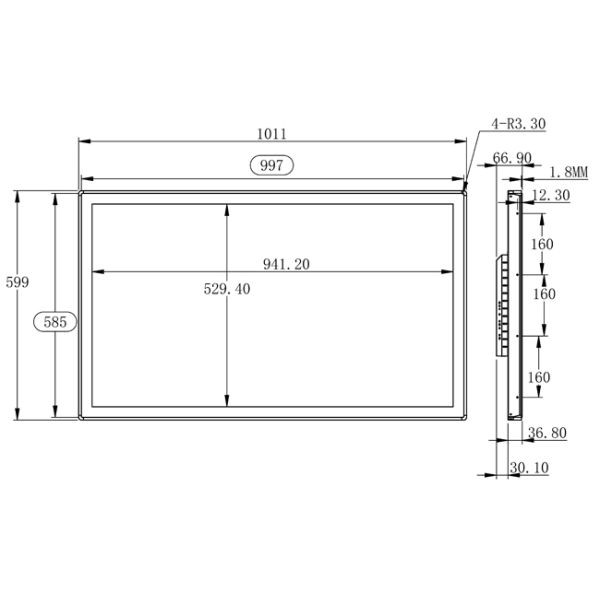

Display Area 941.2 mm.(Height) X 529.4(Width)mm.
Aspect Ratio 16 : 9 16 : 9
LCD Type a-Si TFT-LCD Monitor a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080 3840 X 2160
Display Color 16.7m , 72% NTSC 1.06B, 74% NTSC
Brightness 300cd/m² 400cd/m²
Contrast Ratio 1200 : 1 1000 :1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10) 89°/89°/89°/89°(Type)(CR≥10)
Response Time 8ms 6ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio Parameters
(External Speaker Option)		 Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 90 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m
Package Size Device Dimensions 1011 X 599 X 66.9 mm.
Net Weight 22 Kilogram
Package Size 108.6 X 69.6 X 12.5Centimeter
Gross Package Weight per Unit 24 Kilogram


The Customized Input LCD Display, with its professional construction and thoughtful details, pushes industrial intelligent equipment to higher standards. It is not just a control platform but also the "core brain" of industrial sites, providing sustained power for efficient production and intelligent management.
