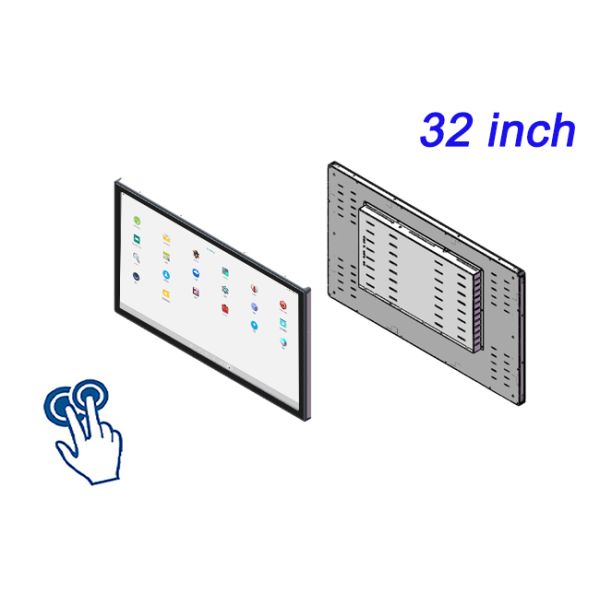

32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display
32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display
32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display
32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display
32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display
32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display
32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display
32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM320SAT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
32 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display


Embedded Industrial TouchScreen Monitors

The Embedded Industrial TouchScreen Monitors is constructed with a cold-rolled steel plate body, offering exceptional high-temperature resistance and stable operation in extreme temperature environments ranging from -20°C to 70°C. It adapts to complex scenarios such as industrial workshops and outdoor equipment.


32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display


The rounded corner frame design, crafted with curved edge-wrapping technology, not only enhances the device's aesthetic appeal but also effectively prevents screen damage caused by edge impacts, balancing safety and practicality.


32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display


The screen adopts a completely flat, dead zone-free touch solution combined with 10-point capacitive touch technology, achieving seamless integration between the display and the body. The capacitive touch delivers precise response, supports multi-point operation, and offers high sensitivity without blind spots, ensuring smooth and lag-free user interaction. This design is particularly suitable for industrial equipment requiring high-frequency operation, such as automated production line monitoring and self-service terminals.


32 inch Smart Vision Terminal Embedded High Brightness Capacitive Industrial TouchScreen Monitors Integrated Machine Display


Furthermore, the Embedded Industrial TouchScreen Monitors features an integrated structural design that reduces external wiring and gaps, enhances dust and water resistance (IP65 protection rating), and lowers maintenance costs. It supports both Windows and Android systems, boasts strong compatibility, and can be quickly integrated into various industrial control systems, facilitating intelligent equipment upgrades.


LCD Panel Parameters Screen Size 32 Inch
Display Area 698 mm.(Height) X 391.8(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 8 Bit + FRC Color 1.07G
Brightness 400cd/m²
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 8ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Configuration PCB Android Built-in
(Choose one of two)		 CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 11.0
Ethernet 1 x RJ45, Ethernet 1,000 Mbps 1 x RJ45, Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 USB2.0 x 2
HDMI IN x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 60 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 749 X 446 X 58 mm.
Net Weight 13 Kilogram
Package Size 83 X 53 X 15Centimeter
Gross Package Weight per Unit 15 Kilogram


From structural craftsmanship to interactive experience, the Embedded Industrial TouchScreen Monitors, with its stability, reliability, efficiency, and responsiveness, serves as a core interactive component in smart manufacturing, logistics terminals, and public service fields.


if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
