Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM156SA
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
15.6 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

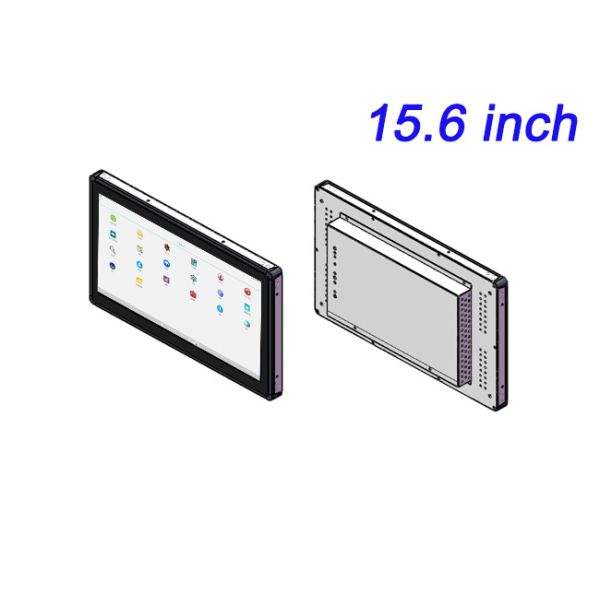

15.6 Inch LCD Industrial Control Display Monitors With High And Low Temperature Resistance Embedded Android Pure Flat Wall Mounted Display


High-Brightness Industrial Control Display Monitors: Conquering Harsh Environments with Intelligent Visibility

In today's era where smart devices are extensively deployed in outdoor settings, display terminals face increasingly complex environmental challenges. The High-Brightness Industrial Control Display Monitors, specifically designed for outdoor applications, has become an ideal companion for smart charging piles, parcel lockers, self-service retail terminals, and other equipment due to its high brightness, intelligent adjustment capabilities, and all-weather stable operation.


15.6 Inch LCD Industrial Control Display Monitors With High And Low Temperature Resistance Embedded Android Pure Flat Wall Mounted Display

Exceptional Visibility and Environmental Adaptability

The High-Brightness Industrial Control Display Monitors features a high-definition 1080P resolution panel with a brightness of up to 1000 cd/m², offering excellent anti-glare performance. Even under direct sunlight, it maintains vibrant colors and clear visuals. The built-in ambient light sensor automatically adjusts brightness according to external lighting conditions, reducing energy consumption while ensuring an optimal user visual experience.


15.6 Inch LCD Industrial Control Display Monitors With High And Low Temperature Resistance Embedded Android Pure Flat Wall Mounted Display

All-Weather Multi-Scenario Application Support

Considering long-term exposure to rain, wind, and dust, the display adopts a fully sealed industrial structure with an IP rating for water and dust resistance. It is corrosion-resistant and oxidation-resistant, suitable for extreme conditions such as rain, snow, high humidity, and dusty environments. Additionally, the automatic temperature control and heat dissipation system enable 365×24 continuous operation, effortlessly supporting 30-day standby operation.


15.6 Inch LCD Industrial Control Display Monitors With High And Low Temperature Resistance Embedded Android Pure Flat Wall Mounted Display


This product series is widely used in various smart terminal devices, including smart charging piles, parcel lockers, waste sorting machines, recycling stations, self-service vending equipment, and smart bus stop signs, providing a reliable visual interactive interface for urban smart systems. It is compatible with mainstream operating systems such as Windows, Linux, and Android, ensuring seamless integration with diverse software platforms.


LCD Panel Parameters Screen Size 15.6 Inch
Display Area 344.2 mm.(Height) X 193.5(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7M , 72% NTSC
Brightness 250cd/m²
Contrast Ratio 700 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 30ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Built-in Speaker Power 2 x 5W
Built-in Android PCB Configuration (Choose one of two) CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 11.0
Ethernet 1 x RJ45, 1,000 Mbps Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 USB2.0 x 2
HDMI IN x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 389 X 249X 51.7mm.
Net Weight 5 Kilogram
Package Size 44.2 X 30 X 10.5Centimeter
Gross Package Weight per Unit 5.5 Kilogram


With the advancement of smart city initiatives, the demand for outdoor self-service equipment continues to grow. As a key component, the High-Brightness Industrial Control Display Monitors, with its exceptional display performance, environmental adaptability, and system compatibility, provides robust support for enhancing the intelligent interactive experience of urban terminal devices. It is the optimal choice for building efficient and intelligent outdoor solutions.


if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
