18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel
18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel
18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel
18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel
18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel
18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel
18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel
18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM185SA
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
18.5 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

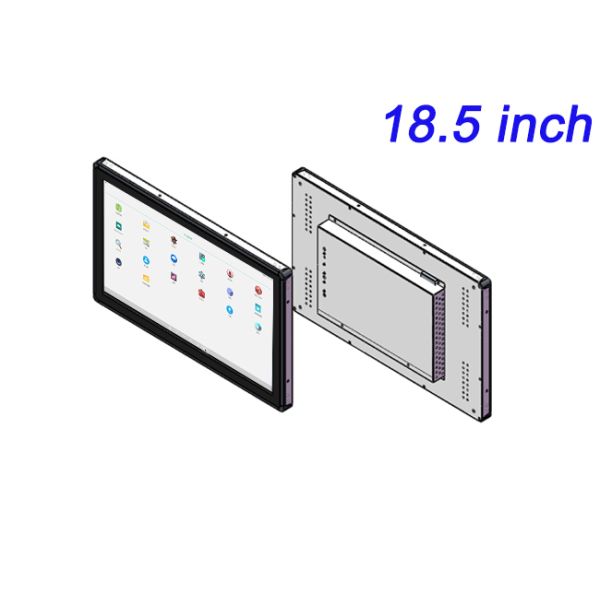

18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel


Industrial Control LCD Panel: Engineered for Demanding Environments

In industrial settings where equipment operates continuously amidst high dust, humidity, and even liquid splash conditions, display terminals must demonstrate exceptional sealing and stability. The fully sealed industrial display meets these rigorous demands with high-level protection design and long-term reliable operation, fully addressing the challenges of industrial scenarios.


18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel

Flush Protection Design: Enhanced Dust and Water Resistance

This Industrial Control LCD Panel adopts a completely flat panel design with a seamless surface structure that effectively prevents dust, oil, and liquid splashes from penetrating the interior, achieving IP65 industrial-grade protection standards.


The housing is constructed from highly sealed metal material with reinforced edges, ensuring continuous stable operation even in complex industrial environments such as liquid splashes and airborne dust.


The fully enclosed shell not only improves the overall protection level but also significantly extends the display's service life, reducing maintenance frequency and costs, making it an ideal choice for high-reliability scenarios.


18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel

Industrial-Grade Hardware Enables Efficient Operation

To meet the industrial requirements for 24/7 continuous operation, the display is equipped with a low-power industrial motherboard and customized hardware modules, offering both high performance and low thermal output.


Combined with an optimized passive cooling structure, it maintains stable long-term operation even without fans, making it particularly suitable for noise-sensitive working environments.


Furthermore, the industrial display passes rigorous industrial protection tests and supports normal operation under various extreme conditions including high temperatures, high humidity, and electromagnetic interference. It is widely applicable in high-standard scenarios such as automated production lines, CNC machines, and warehouse logistics systems.


18.5 Inch Embedded Display Brand Android Industrial Control LCD Panel

More Than Just a Screen: A Critical Interface for Industrial Automation

The Industrial Control LCD Panel is not merely a screen—it serves as a vital interactive and information presentation window within industrial automation control systems. Its stability, protection capabilities, and compatibility are key to enhancing industrial efficiency, making it a trustworthy professional choice for every industrial customer.


LCD Panel Parameters Screen Size 18.5 Inch

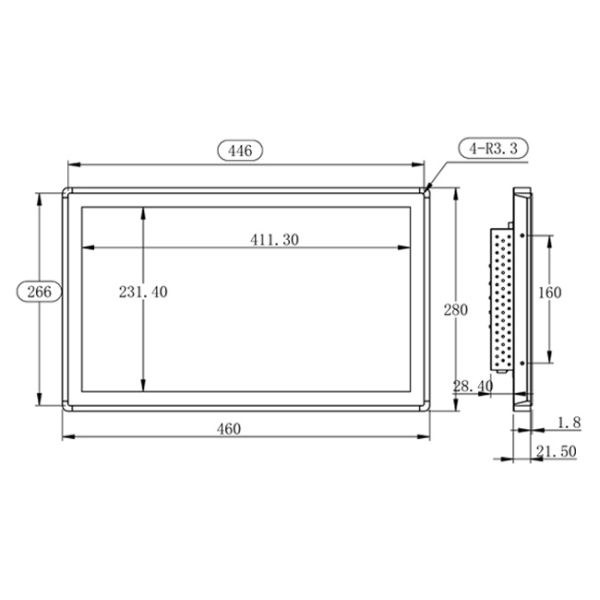

Display Area 411.3 mm.(Height) X 231.4(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7m , 72% NTSC
Brightness 250cd/m²
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 14ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Built-in Speaker Power 2 x 5W
Built-in Android PCB Configuration (Choose one of two) CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 11
Ethernet 1 x RJ45, 1,000 Mbps Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 OTG USB2.0 x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 460 X 280 X 51.7mm
Net Weight 6.5 Kilogram
Package Size 51 X 33.5 X 11Centimeter
Gross Package Weight per Unit 7 Kilogram


if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
