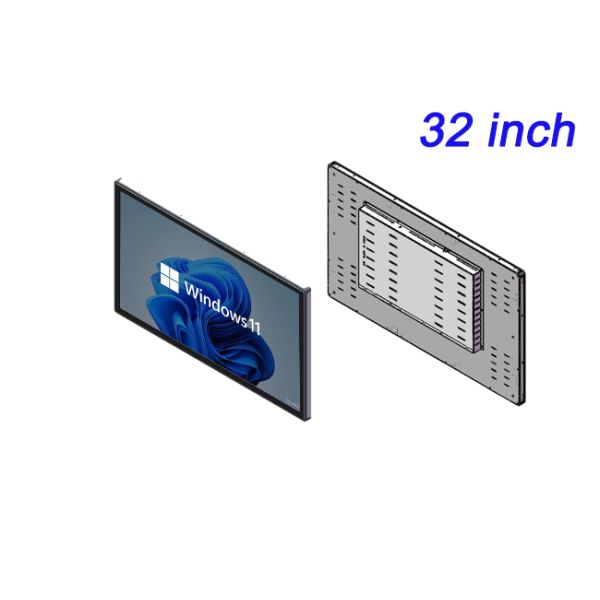

32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display
32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display
32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display
32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display
32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display
32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display
32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display
32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM320SW
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
32 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display


Cheap TouchScreen Display

The Cheap TouchScreen Display is a highly integrated control device specifically designed for industrial automation systems. Featuring an embedded installation structure, it seamlessly integrates into various industrial equipment or control panels. This terminal combines computing units and human-machine interaction functions, making it widely applicable in production line control, equipment status monitoring, logistics dispatch, smart warehousing, and other scenarios.


32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display


The product utilizes an industrial-grade motherboard, supporting long-term stable operation, and can be equipped with X86 or ARM architecture processors based on actual requirements. It comes with a high-brightness LCD display panel, ensuring operability even in environments with strong light, high dust, or oil contamination.


32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display


The Cheap TouchScreen Display boasts a compact design, suitable for installation in space-constrained control cabinets or operation consoles. Its front panel meets IP65 protection standards, effectively resisting dust and water ingress, thereby extending the device's service life. Additionally, it supports multiple communication interfaces and expansion functions to meet practical needs such as industrial network connectivity, data acquisition, and edge computing.


32 inch Customizable Embedded Industrial Control Integrated Computer Industrial Resistance Capacitance Cheap TouchScreen Display


Such terminals play a core role in the intelligent transformation of equipment, not only optimizing control processes but also enhancing the overall system's automation and digitalization levels.


Embedded Windows PC All-in-One Computer 32 Inch
LCD Panel Parameters Screen Size 32 Inch
Display Area 698 mm.(Height) X 394.5(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 8 Bit + FRC Color 1.07G
Brightness 400cd/m²
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 8ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Built-in Speaker Power 2 x 5W
Internal computer configuration
(Choose one of two)		 CPU i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Win10 or win11 Optional Win10 or win11 Optional
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 60 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 752 X 446 X 51.7 mm.
Net Weight 13 Kilogram
Package Size 82.3 X 52.5 X 12Centimeter
Gross Package Weight per Unit 15 Kilogram
