65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
65 inch Portable PC Panel Mount Monitor for Industrial Application
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM650SL
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
65 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

65 inch Portable PC Panel Mount Monitor for Industrial Application


PC Panel Mount Monitor: Large-Screen Interactive Terminal for Demanding Applications

Amid rapid industrial automation development, large-size display terminals are increasingly becoming the preferred equipment for various high-demand scenarios. The PC Panel Mount Monitor, with its expansive visual presentation, robust performance configuration, and stable, reliable industrial structure, is widely used in manufacturing workshops, automated production line monitoring centers, medical equipment terminals, traffic dispatch platforms, and other critical positions requiring large-screen interaction and display.


65 inch Portable PC Panel Mount Monitor for Industrial Application

Industrial-Grade Design: Stable and Durable

The PC Panel Mount Monitor adopts high-standard industrial design principles. The unit utilizes high-strength cold-rolled steel and aluminum alloy frames, offering excellent pressure resistance, corrosion resistance, and wear resistance.


The front panel supports an IP65 protection rating, effectively resisting dust and water splashes, and adapts to various complex working environments.


The chassis cooling system employs multi-vent ventilation design or a fanless silent solution, ensuring stable and efficient operation even during prolonged use.


Wide-Viewing-Angle Large Screen: Clear and Detailed Presentation

Features a 27-inch high-definition LCD screen with resolutions up to 1920x1080 or even 2K, delivering detailed image quality and high brightness.


The wide-viewing-angle IPS panel supports 178° viewing from all angles, ensuring clear, color-accurate display even during multi-person operation or viewing.


65 inch Portable PC Panel Mount Monitor for Industrial Application

High-Performance Configuration, Multi-System Support

Internally equipped with Intel or ARM architecture industrial-grade processors, capable of running various systems like Windows, Android, and Linux, meeting the operational needs of different software platforms.


Customized options from entry-level to high-performance configurations are available based on project requirements, supporting continuous 7x24 operation to ensure system stability and reliability.

Rich Interfaces for Flexible Expansion

The industrial panel all-in-one reserves multiple common industrial interfaces, including USB, HDMI, VGA, RS232/RS485, RJ45 Ethernet, audio input/output, and GPIO, facilitating the connection of various industrial control devices, data acquisition terminals, barcode scanners, cameras, etc.


Optional Wi-Fi, Bluetooth, and 4G modules enable wireless communication and remote data transmission, meeting Industrial IoT application needs.


65 inch Portable PC Panel Mount Monitor for Industrial Application

Versatile Application Scenarios

The industrial panel all-in-one screen is used in numerous scenarios:


Smart Factories: As production data display boards, operation control platforms, and production line status monitoring terminals.


Transportation: Dispatch center command large screens, information broadcast terminals.


Healthcare Systems: Self-service terminals, diagnostic image displays, information processing centers.


Smart Cities: Self-service government kiosks, self-service payment and inquiry terminals.


Exhibition & Display: Interactive screens in digital exhibition halls, industrial large-screen demonstration equipment.


LCD Panel Parameters Screen Size 65 Inch
Display Area 1429.48 mm.(Height) X 804.52 (Width)mm.
Aspect Ratio 16 : 9 16 : 9
LCD Type a-Si TFT-LCD Monitor a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080 3840 X 2160
Display Color 16.7m , 72% NTSC 1.06B, 74% NTSC
Brightness 300cd/m² 400cd/m²
Contrast Ratio 1200 : 1 1000 :1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10) 89°/89°/89°/89°(Type)(CR≥10)
Response Time 8ms 6ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Internal computer configuration
(Choose one of two)		 CPU i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Linux Linux
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 90 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃

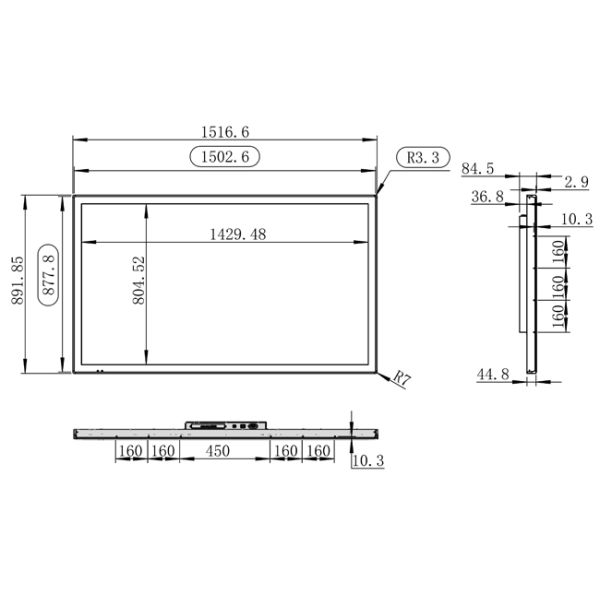

Package Size Device Dimensions 1516.6 X 891.85 X 84.5 mm.
Net Weight 43 Kilogram
Package Size 165.0 X 20.5 X 102.4Centimeter
Gross Package Weight per Unit 48 Kilogram


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
