15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display
15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display
15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display
15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display
15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display
15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display
15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display
15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display
15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display
15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM150SL
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
15 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display


In industrial automation, control systems, and commercial self-service applications, Rackmount HDMI LCD Display serve as high-performance visual devices widely used in production lines, monitoring centers, intelligent equipment, and various harsh environments, making them an ideal display solution for industrial sectors.


15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display

Rackmount HDMI LCD Display: Efficient Heat Dissipation, Stable Operation

Constructed with high-hardness metal chassis and cold-rolled steel casing, offering exceptional pressure resistance and corrosion protection specifically engineered for industrial settings.Effectively withstands magnetic interference, strong vibrations, and extreme temperature fluctuations while maintaining stable operation for long-term efficiency.Features a 1.2mm slim front bezel design and 1.2mm front panel embedded structure that enables seamless integration with equipment contours, saving space while delivering a clean, modern aesthetic.

Protective Design for Harsh Environments

Rated IP65 for dust and water resistance, with an operating temperature range of -20°C to 60°C, ensuring reliable performance in demanding conditions.Incorporates electromagnetic interference resistance compliant with EMC standards, providing dependable and stable display performance in industrial settings.

15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display

Flexible Installation & Multiple Applications

Supports multiple mounting configurations: wall-mounted to conserve space, or embedded for seamless equipment integration.Delivers clear, precise visualization for machine control panels, self-service terminals, factory production monitoring, corporate offices, and security surveillance systems.

Typical applications include:

Smart Manufacturing: Operational interface for workshops, CNC machinery, and automated equipmentIntelligent Monitoring: Real-time data display and analysis for control centers Commercial Self-Service: ATMs, smart parcel lockers, and kiosk systemsOutdoor Equipment: Reliable operation and information display in adverse weather conditions

15 inch Embedded Linux System Industrial Rackmount HDMI LCD Display

Customization Services

To better serve diverse industry requirements, we offer customization options including:


Housing colors


Interface expansions (USB/RS232/HDMI)


Front panel functionalities (touch capabilities, enhanced sealing)


These tailored solutions ensure flexible integration and enriched functionality across various environments and equipment types.


LCD Panel Parameters Screen Size 15 Inch
Display Area 304.2 mm.(Height) X 228(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1024 X 768
Display Color 262K/16.2M , 72% NTSC
Brightness 300cd/m²
Contrast Ratio 1500 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 15ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Internal computer configuration
(Choose one of two)		 CPU i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Linux Linux
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 25 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃

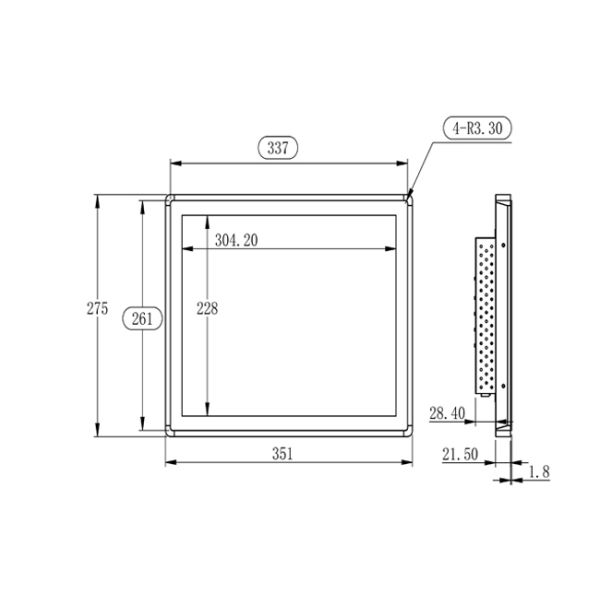

Package Size Device Dimensions 351 X 275X 51.7mm.
Net Weight 5 Kilogram
Package Size 38.9 X 23.3 X 11Centimeter
Gross Package Weight per Unit 5.5 Kilogram


The Rackmount HDMI LCD Display represents an indispensable component for industrial automation, smart equipment management, and commercial intelligent terminals. Whether deployed in production facilities, smart office environments, or outdoor self-service equipment, it consistently delivers exceptional visual performance and operational reliability.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
