32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor
32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor
32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor
32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor
32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor
32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor
32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor
32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM320SLT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
32 inch
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Operating Temperature :
0°C to 50°C
Description

32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor

Amidst the rapid development of smart manufacturing, high-end equipment, and industrial automation, equipment control cores are becoming increasingly integrated, customized, and high-performance. The Industrial PC Touch Monitor is precisely the professional-grade product born to meet this trend. With its high reliability, customized craftsmanship, and excellent electromagnetic protection capabilities, it has become the ideal core for numerous industrial systems.


32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor

Industrial PC Touch Monitor: Custom Mold Craftsmanship for Industrial-Grade Precision Structure

This industrial computer is custom-built using aluminum alloy and proprietary mold technology. From the mold to the casing, everything is meticulously designed by the engineering team, resulting in a tight structure, higher precision, and effectively improved installation compatibility and structural stability.


The chassis utilizes selected high-quality panels, undergoing multiple treatments and reinforcements, enabling the unit to excel in pressure resistance, corrosion resistance, and anti-static performance, easily handling complex industrial environments with high dust, high humidity, and high interference.


32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor

Industrial PC Touch Monitor: Outstanding Performance, Stable Protection

The core configuration features an industrial-grade high-performance motherboard, supporting Intel low-power processor series. Processor and memory capacity can be customized based on project requirements, ensuring stable 7x24 operation without issues.


The internal circuit layout is scientific, incorporating multiple electromagnetic shielding designs and added EMI/EMC electromagnetic immunity components. It possesses stronger electromagnetic oxidation resistance and anti-interference performance, complies with industrial EMC protection standards, and ensures long-term stable operation of the equipment.


Supports various common industrial interfaces, including USB, HDMI, VGA, COM serial ports, LAN ports, etc., while reserving expansion interfaces like GPIO to meet the diverse access needs of industrial automation, instrumentation, machine vision, and other scenarios.


32 inch Embedded Self-Service Vending Machine Capacitive Touch Linux System Industrial PC Touch Monitor

Flexible Embedded Structure, Adapts to Multiple System Platforms

The embedded design facilitates equipment integration and can be widely used in industrial all-in-one computers, control terminals, self-service equipment, CNC machine tools, and other systems. Its compact structural design saves installation space and supports multiple installation methods such as horizontal/vertical embedding, wall-mounting, or bracket mounting, significantly improving deployment flexibility.


Capacitive Touch System All-in-One Computer Linux Size 32 Inch
LCD Panel Parameters Screen Size 32 Inch
Display Area 698 mm.(Height) X 391.8(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 8 Bit + FRC Color 1.07G
Brightness 400cd/m²
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 8ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Morse Glass Size 7 Physically reinforced to prevent explosion
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Internal computer configuration
(Choose one of two)		 CPU i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Linux LInux
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 60 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃

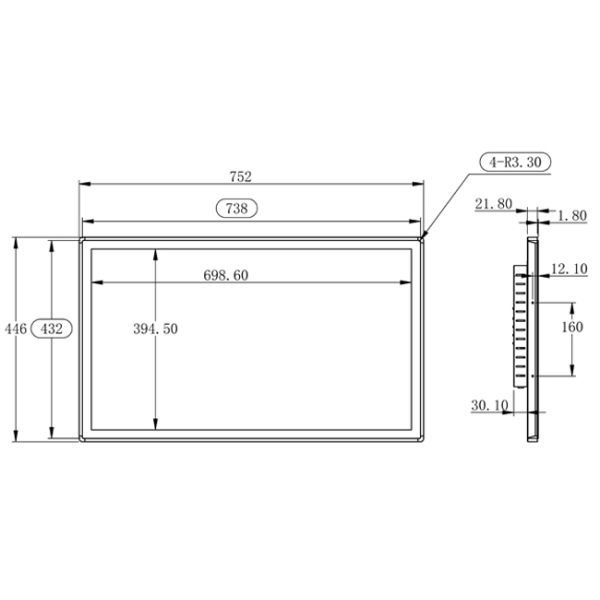

Package Size Device Dimensions 752 X 446 X 53.7 mm.
Net Weight 13 Kilogram
Package Size 82.3 X 52.5 X 12 Centimeter
Gross Package Weight per Unit 15 Kilogram


Compatible with mainstream operating systems such as Windows, Linux, and Ubuntu. It can be deployed as the core host for various automation control platforms, data acquisition systems, human-machine interaction devices, etc.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
