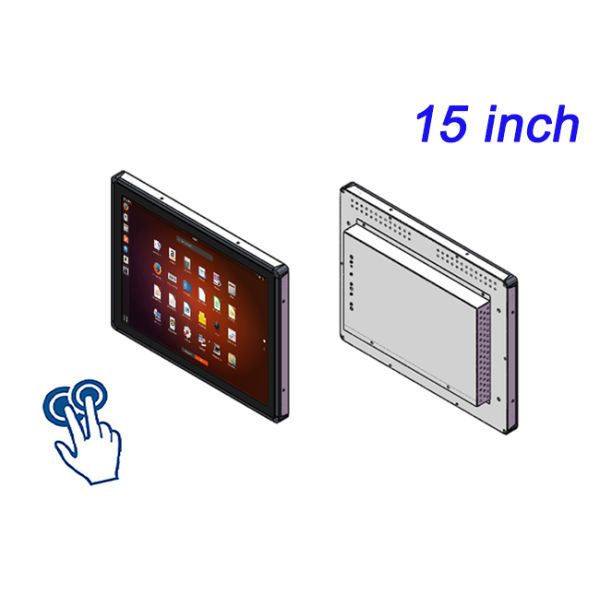

15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor
15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor
15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor
15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor
15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor
15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor
15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor
15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor
15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor
15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM150SLT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
15 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor

15-inch linux industrial touch panel monitor: A wise choice for intelligent robot data monitoring.


15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor


In today's world where intelligent robots are becoming increasingly popular, efficient and precise data monitoring has become the key to enhancing robot performance and efficiency. To this end, we have meticulously crafted the 15-inch linux industrial touch panel monitor solution, specifically designed for intelligent robot data monitoring panels, leading the industry with outstanding performance and compact structure.


15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor


15-inch linux industrial touch panel monitor: A clear vision for data monitoring.


As a core component for monitoring intelligent robot data, the 15-inch linux industrial touch panel monitor features a high-definition display that presents key metrics and status information of the robot's operation in real-time. Although the non-touch design simplifies the user interface, operators can still easily access and analyze data through an external keyboard or mouse, ensuring that the robot remains in optimal working condition. Its compact embedded structure perfectly integrates into the robot's body, saving space while enhancing overall aesthetics.



15 Inch Lcd Capacitive Touch Screen Industrial Multi Linux Touch Panel Monitor


15-inch industrial touch panel monitor: a stable and reliable monitoring partner.


In the complex and ever-changing working environment of intelligent robots, the 15-inch industrial touch panel monitor with an embedded display has become a reliable partner for robot data monitoring due to its industrial-grade high quality and stability. It not only withstands the erosion of harsh environments on the equipment but also operates stably for long periods, ensuring the continuity and accuracy of data monitoring. Whether in high temperatures, humidity, or vibration environments, this embedded display can handle it with ease, safeguarding the efficient operation of intelligent robots.


LCD Panel Parameters Screen Size 15 Inch
Display Area 304.2 mm.(Height) X 228(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1024 X 768
Display Color 262K/16.2M , 72% NTSC
Brightness 300cd/m²
Contrast Ratio 1500 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 15ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Internal computer configuration
(Choose one of two)		 CPU i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Linux Linux
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 25 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 351 X 275 X 51mm.
Net Weight 5 Kilogram
Package Size 41.2 X 34 X 11Centimeter
Gross Package Weight per Unit 5.5 Kilogram


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
