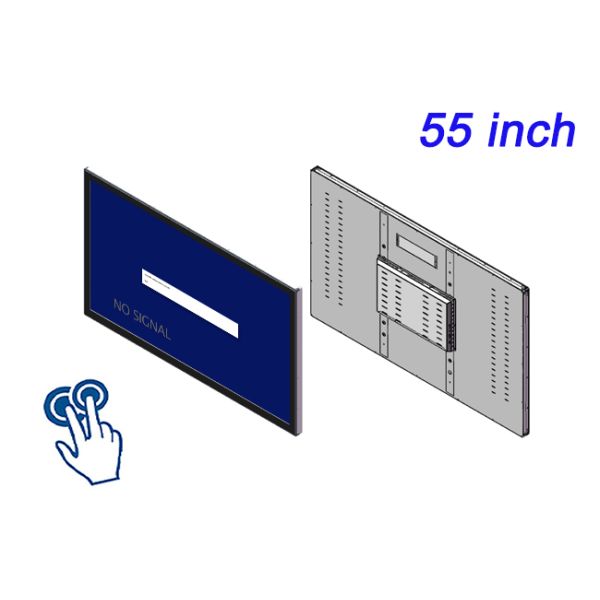

55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display
55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display
55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display
55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display
55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display
55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display
55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display
55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display
55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display
55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM550SMT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
55 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display


55-inch Capacitor TouchScreen PC Monitors: Capacitive Touch, Stable and Reliable

In today's rapidly evolving landscape of industrial automation and intelligent terminal equipment, the 55-inch Capacitor TouchScreen PC Monitors has become the preferred device for various complex environments due to its superior industrial performance and refined design. With high-quality touch experience and a rugged industrial-grade casing, it is widely used in industrial production lines, outdoor intelligent terminals, and many other fields.


55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display


This 55 inch Capacitor TouchScreen PC Monitors is equipped with a high-resolution touchscreen, supporting 10-point capacitive touch with a touch lifespan of over 50 million cycles. It features Mohs 7-level scratch-resistant design and a 10mm thick reinforced front frame, providing corrosion and wear resistance to ensure long-term stability and durability, adapting to various harsh environments.


Whether in high temperatures, humidity, dust, oil contamination, or other challenging conditions, it maintains stable performance, complies with EMC anti-electromagnetic interference standards, and meets the stringent requirements of industrial sites.


55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display


Multi-Function Installation Methods for Flexible Application

To adapt to different working environments and spatial needs, the 55-inch Capacitor TouchScreen PC Monitors offers multiple installation methods, including pendant mounting, VESA standard mounting holes, desktop stand, and wall mounting, allowing flexible deployment based on actual conditions.


This design not only saves space but also ensures more stable integration into various industrial equipment and intelligent terminals.


55 inch High and Low Temperature Resistant Embedded Dustproof Multi serial Port Capacitor TouchScreen PC Monitors PLC Configuration Display


As a 55-inch Capacitor TouchScreen PC Monitors that integrates touch technology and industrial strength, it meets multiple needs from industrial control to intelligent terminal equipment, providing a more precise, stable, and efficient solution for modern industrial production and smart application scenarios.


LCD Panel Parameters Screen Size 55 Inch
Display Area 1209.6 mm.(Height) X 680.4 (Width)mm.
Aspect Ratio 16 : 9 16 : 9
LCD Type a-Si TFT-LCD Monitor a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080 3840 X 2160
Display Color 16.7m , 72% NTSC 1.06B, 74% NTSC
Brightness 400cd/m² 400cd/m²
Contrast Ratio 1200 : 1 1000 :1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10) 89°/89°/89°/89°(Type)(CR≥10)
Response Time 8ms 6ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Capacitive Touchscreen Capacitive Projected
Touch Points 10 Points
Cover Glass Morse Glass Size 7 Physically reinforced to prevent explosion
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Audio Parameters
(External Speaker Option)		 Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 90 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m
Package Size Device Dimensions 1287 X 769 X 68.4 mm.
Net Weight 32 Kilogram
Package Size 137.8 X 20.0 X 89.4Centimeter
Gross Package Weight per Unit 35 Kilogram


if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
