17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal
17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal
17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal
17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal
17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal
17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal
17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal
17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal
17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal
17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM170SMT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
17 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal

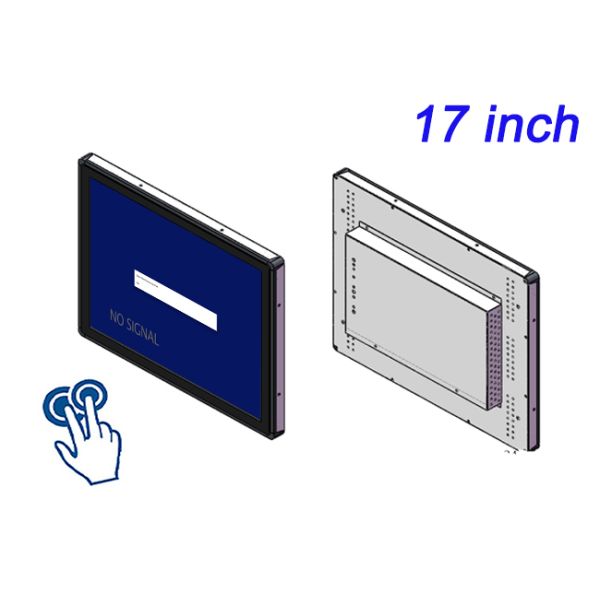

Embedded Touch Screen Self-service Terminal

The Embedded Touch Screen Self-service Terminal is a professional-grade display device specifically designed for self-service terminals, intelligent cabinets, and industrial control cabinets. Utilizing an embedded installation method, it delivers a clean and aesthetically pleasing setup where the display area sits flush with the cabinet panel. This achieves an integrated equipment front panel, enhancing both the industrial aesthetics and operational convenience. It serves as a key component in the upgrade and transformation of modern intelligent terminals.


17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal


The product adopts a fanless silent design, operating with zero noise during use, significantly reducing acoustic interference. This makes it suitable for environments with high requirements for quietness. Even under prolonged high-load operation, it maintains stable system performance, effectively extending the equipment's service life.

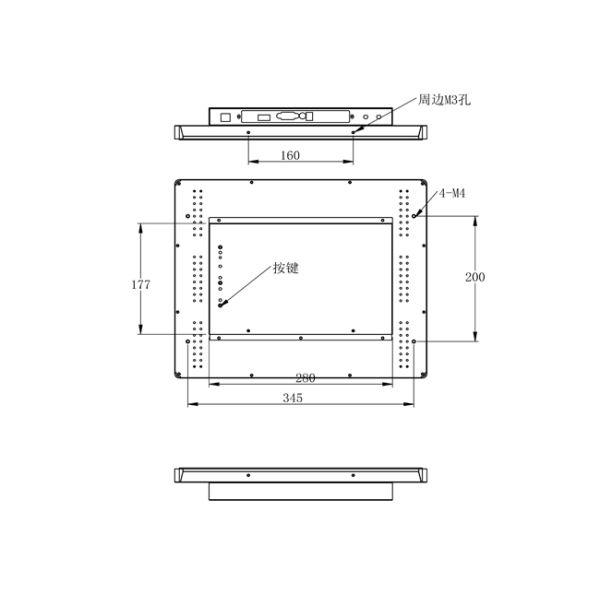

Structurally, the embedded installation is implemented from inside the cabinet outward, with only the display area exposed externally. The narrower bezel and higher screen-to-body ratio not only save space but also enhance visual immersion and interaction efficiency during use.


17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal


The front panel of the screen features an industrial-grade protective design, offering excellent dustproof, waterproof, and scratch-resistant capabilities. It can withstand minor physical impacts and environmental dust intrusion, ensuring stable operation in various complex working conditions.


In terms of hardware, it is equipped with an industrial-grade motherboard that supports 24/7 uninterrupted operation. Its powerful and stable performance meets the stringent requirements for high reliability and low failure rates in various industrial and commercial terminal applications.


17 Inch Wall Mounted Industrial Grade Explosion-proof Touch Screen Self-service Terminal


The system boasts strong compatibility, supporting mainstream operating platforms such as Windows and Linux, and facilitates integration with multiple control systems and configuration software.


LCD Panel Parameters Screen Size 17 Inch

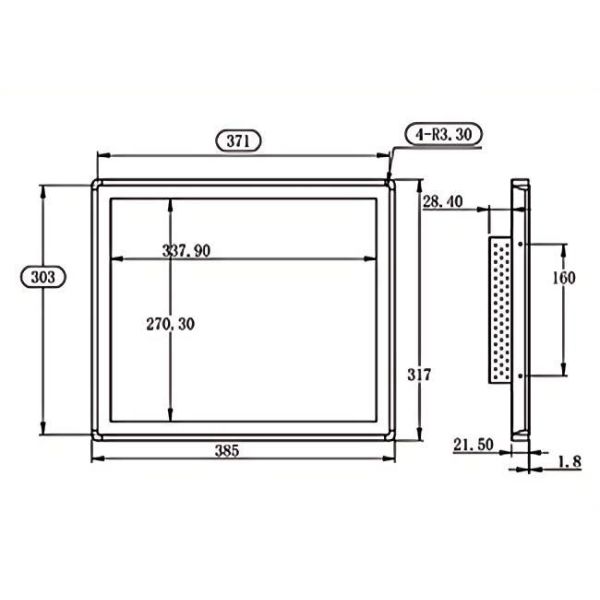

Display Area 337.92 mm.(Height) X 270.34(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1280 X 1024
Display Color 16.7M , 72% NTSC
Brightness 250cd/m²
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 20ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Audio Parameters
(External Speaker Option)		 Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm.
Stereo Speaker Length 1.5m
Package Size Device Dimensions 380 X 318 X 49mm.
Net Weight 5.5 Kilogram
Package Size 45 X 38.5 X 15Centimeter
Gross Package Weight per Unit 6 Kilogram


The Embedded Touch Screen Self-service Terminal is widely used in self-service terminals, information kiosks, data acquisition cabinets, industrial control cabinets, smart parcel lockers, and other fields. It is an ideal solution for enhancing equipment intelligence and user interaction experience.
