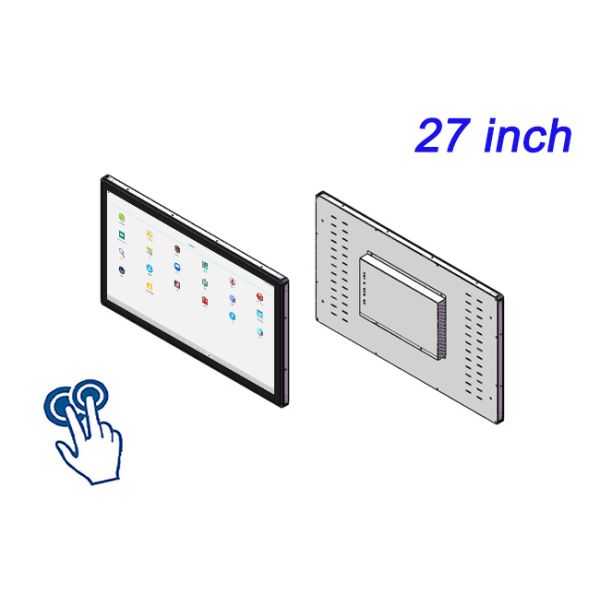

ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
Specifications
Resolution :
1920 X 1080
Cabinet material :
Metal case + Glass
Protype :
Desktop / Floor standing /wall mounted(Optional)
Brightness :
350cd/m²
Passport Scanner :
Optional
POS terminal installation :
Resever space
Touch Screen :
10-point capacitive touch screen
Operating Temperature :
0°C to 50°C
View Angle :
178°/178° (H/V)
80mm Thermal Printer :
Support, built-in
Application :
Hospitality, hotel and catering
Power Consumption :
80W
NFC Reader/scanner/QR reader :
Support, built-in
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM270SAT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
27 inch
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Description

ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display


Industrial TouchScreen Display

The Industrial TouchScreen Display, with its modular design and high integration, serves as a core device in the field of industrial automation. It features abundant interfaces, supporting multiple communication methods such as serial ports, USB, and Ethernet. Interface types and layouts can be customized according to customer requirements, enabling flexible adaptation to complex industrial scenarios.


ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display


As a product from a source factory with strong capabilities, the device undergoes strict quality control from hardware to software, ensuring stable and reliable performance.


In terms of system compatibility, the embedded industrial touch computer comes pre-instalLCD with Win 7 operating system and also supports Linux, Android, and other operating systems. It is compatible with mainstream human-machine configuration software, enabling seamless integration into industrial control processes.


ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display


The device boasts an IP65 industrial protection rating, with excellent dustproof and waterproof performance, making it suitable for harsh environments such as dusty, humid, and vibrating conditions.


The screen utilizes an industrial-grade high-definition A-class panel, with real-time display optimization for vibrant colors and flicker-free performance, ensuring a smooth and clear operating interface.


ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display


The device supports power-on startup and can operate 360 days × 24 hours continuously. Paired with an efficient heat dissipation system and a design resistant to high and low temperatures, it guarantees long-term stable operation.


LCD Panel Parameters Screen Size 27 Inch
Display Area 476.5 mm (Height) X 268 mm (Width)
Aspect Ratio 16 : 9 16 : 9
LCD Type a-Si TFT-LCD Monitor a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080 3840 X 2160
Display Color 16.7m , 99% sRGB 1.07B , 95% DCI-P3
Brightness 300cd/m² 400cd/m²
Contrast Ratio 1000 : 1 1000 :1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10) 89°/89°/89°/89°(Type)(CR≥10)
Response Time 14ms 14ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Capacitive Touchscreen Capacitive Projected
Touch Points 10 Points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Configuration PCB Android Built-in
(Choose one of two)		 CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 11.0
Ethernet 1 x RJ45, Ethernet 1,000 Mbps 1 x RJ45, Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 USB2.0 x 2
HDMI IN x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 45 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 651.4 X 389.6 X 52.2 mm.
Net Weight 10 Kilogram
Package Size 72 X 47 X 15Centimeter
Gross Package Weight per Unit 11 Kilogram


Whether for production line monitoring, equipment interaction, or smart warehouse management, the Industrial TouchScreen Display enhances efficiency in industrial scenarios with its high performance and reliability, making it an ideal choice for modern industrial control.


if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
