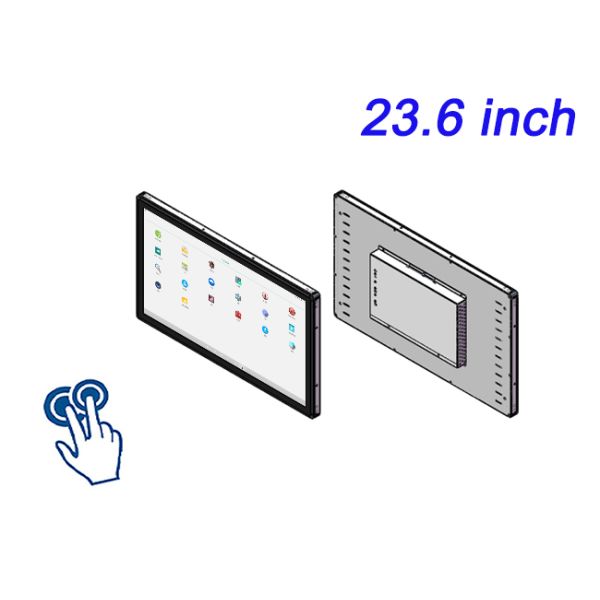

ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-RM236SAT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,MoneyGram,Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
23.6 inch
Operating Temperature :
0°C to 50°C
Power Supply :
AC 100~240V, 50hz-60hz
Panel type :
BOE Original A+ Grade IPS
Resolution :
1920 X 1080
Brightness :
350cd/m²
View Angle :
178°/178° (H/V)
Power Consumption :
80W
Cabinet material :
Metal case + Glass
Touch Screen :
10-point capacitive touch screen
NFC Reader/scanner/QR reader :
Support, built-in
80mm Thermal Printer :
Support, built-in
Passport Scanner :
Optional
POS terminal installation :
Resever space
Application :
Hospitality, hotel and catering
Protype :
Desktop / Floor standing /wall mounted(Optional)
Description

ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display


Capacitive LCD Monitor Touch Screen Display: Redefining Interaction with High Sensitivity and Reliability

The Capacitive LCD Monitor Touch Screen Display breaks the limitations of traditional mechanical buttons through its highly sensitive touch and industrial-grade reliability, serving as a "fingertip control hub" for smart manufacturing, smart logistics, medical diagnostics, and other scenarios. It redefines human-machine interaction efficiency in industry through precise touch.


ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display

Military-Grade Touch and All-Weather Protection

The 10-point capacitive touchscreen is protected by 6H hardness tempered glass, supporting gloved, wet-hand, and sharp tool operation. It achieves a touch response ≤3ms with ±0.05mm accuracy and a mis-touch rate below 0.1%.


The IP65-rated body features an aluminum alloy frame and an anti-corrosion ABS back cover, having passed -30℃~70℃ temperature cycle tests and 20G vibration impact certification, adapting to harsh environments like cold chain sorting lines and welding robot stations.


ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display

Intelligent Scenario Empowerment

Smart Factory: 15-27 inch 4K screens display equipment OEE (Overall Equipment Effectiveness) and real-time video monitoring in split-screen mode, with gesture swiping to switch production line data dashboards.


Medical Imaging: 10-point touch allows doctors to simultaneously zoom CT images and mark lesions, while the anti-glare design suits operating room shadowless lamp conditions.


Logistics Dispatch: Built-in RFID modules enable quick AGV path assignment via touch drag-and-drop, with 800-nit high-brightness screens ensuring outdoor visibility.


Hardware-Software Integration and Agile Development

Equipped with Intel/Rockchip dual platforms and pre-installed Windows IoT/Android systems, it supports:


Industrial Protocols: Direct Profinet and EtherCAT connectivity to PLCs, with touch command latency <10ms


Software Ecosystem: Integrated configuration software and edge computing frameworks, supporting local deployment of predictive maintenance algorithms


Deep Customization: Open SDK for touch gesture programming (e.g., three-finger screenshot, circle-drawing alarm), with UI themes adaptable to medical white/industrial black, etc.


ZXTLCD 23.6 Inch Embedded Fully Enclosed LCD Monitor Touch Screen Display Industrial All in One Machine Pure Flat Capacitive Display


From semiconductor cleanrooms to port crane control rooms, the Capacitive LCD Monitor Touch Screen Display sets an interaction benchmark for Industry 4.0 upgrades with its "fingertip precision" and "military-grade endurance." It simplifies complex operations into taps and swipes, advancing human-machine collaboration toward greater intelligence and intuition.


LCD Panel Parameters Screen Size 23.6 Inch
Display Area 522 mm.(Height) X 294(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7m , 72% NTSC
Brightness 250cd/m²
Contrast Ratio 1000 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 14ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 100Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Morse Glass Size 7 Physically reinforced to prevent explosion
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Configuration PCB Android Built-in
(Choose one of two)		 CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 11.0
Ethernet 1 x RJ45, Ethernet 1,000 Mbps 1 x RJ45, Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 USB2.0 x 2
HDMI IN x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 45 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 564.4 X 340.4 X 55.7mm.
Net Weight 8 Kilogram
Package Size 54 X 42 X 15Centimeter
Gross Package Weight per Unit 9 Kilogram


if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
