Specifications
Type of backlight :
OLED self-luminous
Screen Size :
30 inch
Brightness :
600nits (center 1 point.typ.)
Input Voltage :
AC 100~240V, 50hz-60hz
Touchscreen type :
Projected Capacitive Touch screen
Touch points :
10 points
OS :
Android or Windows optional
Resolution :
768×1366
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OLED300V
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T,MoneyGram,Western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days
Packaging Details :
wooden case, carton, flight cases are optional
Panel transparency :
43%
Protype :
Floor standing / Interactive(Optional)
Description

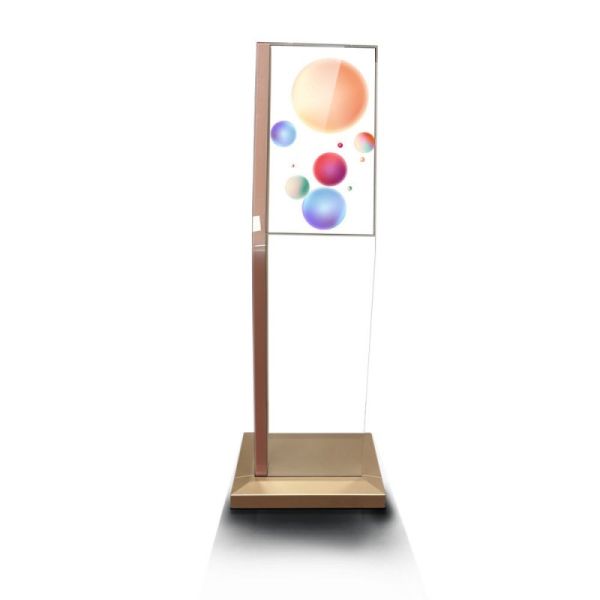

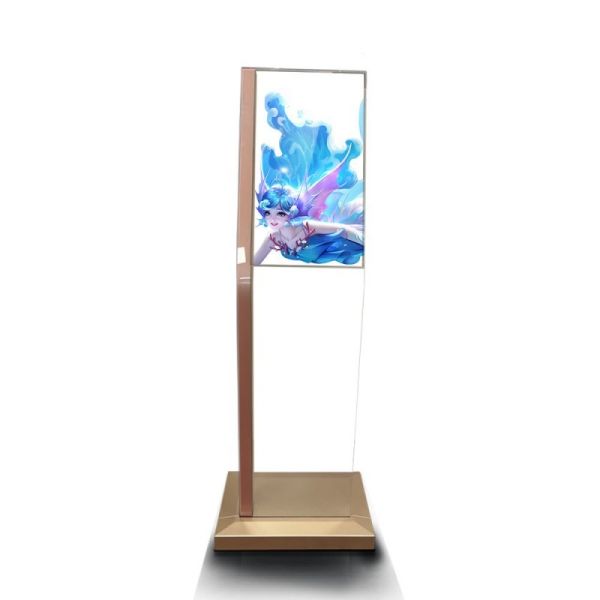

30 Inch Vertical Self-Luminous OLED LG Transparent Screen TV Advertising Display with P-Cap Touch


Premium Transparent OLED Display for Interactive Commercial Signage

The 30 Inch Vertical Self-Luminous OLED LG Transparent Screen TV Advertising Display with P-Cap Touch is a high-end compact digital signage solution designed for luxury retail stores, museums, exhibitions, smart kiosks, and corporate reception areas. It uses advanced transparent OLED display technology to deliver a futuristic transparent OLED screen experience where digital content appears to float in space while still allowing viewers to clearly see objects placed behind the display.


As a professional OLED display manufacturer, this product is designed for modern transparent digital signage applications that combine interactivity, premium design, and immersive visual storytelling.



LG Transparent OLED Screen with Self-Emissive Technology

Floating Visual Experience with High Transparency


This transparent OLED screen is based on self-emissive OLED technology, meaning each pixel generates its own light without a backlight layer. This enables ultra-thin structure, high contrast, and vivid color performance while maintaining a see-through visual effect.


Based on LG transparent OLED commercial panel standards, typical characteristics include:


  • 30-inch LG transparent OLED panel
  • HD resolution (1366 × 768)
  • Approx. 37% transparency level
  • Wide 178° viewing angle
  • High contrast with self-emissive pixels
  • 10-point capacitive P-Cap touch support
  • Ultra-slim glass structure design
  • Smooth motion video playback

This creates a “floating content” effect that significantly improves engagement in retail and exhibition environments.


30-inch vertical transparent kiosk(ZXTLCD-OLED300V)
LCD Panel Parameters
Screen Size 30 inch
Panel type Transparent OLED
Resolution 768*1366
Brightness 200-600cd/ Automatic adjustment
Contrast Ratio 135000:1
Viewing angle(up/down/left/right) 178°(H)/178°(V)
Response Time 0.1ms(Gray To Gray)
Display color 10bit(R),1.07 billon colors
Onboard interface
Input Interface HDMI*1,DP*1,RS232
Output interface RS232
Touch Method
Capacitive Touch screen Default 10 points Capacitive Touch
Power Specifications
Power supply AC 100-240V
Total System Power Consumption <280W
Machine Operating Parameters
running time 7*12h
Screen life 30000h
Operating temperature 0~40
Operating Humidity 20%~80%
structure
Material Aluminum+Tempered Glass+Metal
external dimensions TBD
Overall dimensions TBD
Installation Method Base installation
Net weight / Gross weight TBD
Accessories
Power cord, HDMI port, USB port, remote control, certificate of conformity and warranty card, instruction manual
other
After-Sales Service 1-Year Warranty


Vertical Design for Smart Interactive Applications


Space-Efficient Premium Display Structure


The vertical design makes this transparent OLED screen ideal for close-range interaction and high-traffic commercial areas.


Key advantages include:

  • Vertical orientation for eye-level engagement
  • Compact footprint for retail counters
  • Modern frameless glass aesthetic
  • Ideal for product storytelling and branding
  • Suitable for continuous commercial operation

It is especially effective for environments requiring both visibility and digital interaction.


Applications of Transparent Digital Signage

The 30-inch LG transparent OLED touch display is widely used in:

  • Luxury retail product showcases
  • Jewelry and cosmetics display counters
  • Museum interactive exhibits
  • Exhibition and trade show booths
  • Smart information kiosks
  • Corporate reception desks
  • High-end brand storytelling systems
  • Technology demonstration zones

Its transparency allows physical products to remain visible while digital content enhances presentation.


30 Inch Vertical Self-Luminous OLED LG Transparent Screen TV Advertising Display with P-Cap Touch


FAQ

What is a transparent OLED display?

A transparent OLED display is a self-emissive screen that allows users to see through it while displaying digital content.

What is the advantage of LG transparent OLED technology?

It provides high transparency, vivid colors, and interactive touch capability in a compact commercial format.

Does it support touch interaction?

Yes, it supports 10-point capacitive P-Cap touch input.

Where is it commonly used?

It is widely used in retail, museums, exhibitions, and smart commercial environments.


Conclusion

The 30 Inch Vertical Self-Luminous OLED LG Transparent Screen TV Advertising Display with P-Cap Touch combines LG-grade display performance, interactive touch capability, and advanced transparent OLED display technology. As a professional OLED display manufacturer, it delivers high-impact transparent OLED screen and transparent digital signage solutions that enhance engagement, branding, and immersive customer experiences.
