Specifications
Type of backlight :
OLED self-luminous
Brightness :
400nits (center 1 point.typ.)
Contrast ratio :
8ms
Screen Size :
55 inch
Onboard interface :
1 X RJ45, 2 X HDMI, 4 X USB2.0
Panel transparency :
38%
Input Voltage :
AC 100~240V, 50hz-60hz
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-OLED550D
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T,
Supply Ability :
100 pcs per month
Delivery Time :
15 working days
Packaging Details :
wooden case or flight cases are optional
refresh rate :
120Hz
Standard colours :
1.07B 10Bit
Resolution :
1080×1920
Description

55 Inch LG Transparent Display Self-luminous Automatic Door Video Wall Advertising Display


A buyer looking at 55-Inch Transparent OLED Automatic Door Display is usually trying to protect two things at once: the physical presentation and the digital message. The product is positioned around Architectural Door Media Surface, which means the display has to feel integrated into the site rather than added after the design is finished. Automatic Door Transparent OLED Display is valuable when the screen must explain, guide, or dramatize something that still needs to remain visible behind the panel.


Application Scenarios

For this model, the working environment is self-service consultation, guided product discovery, lobby explanation, and visitor-facing information points. The 55-inch format changes the brief because the viewer compares the media layer with a real object, route, fixture, or interior.

Content and Background Planning

For Architectural Door Media Surface, the first mockup should show the background and the content together, not as separate approvals. That discipline helps the architect or project integrator avoid a common mistake: buying a transparent display before deciding what the transparency is meant to reveal.

Technical Standpoint

From a technical standpoint, transparent OLED changes the project from screen placement to visual layering. The self-luminous structure helps the display avoid the heavy block effect associated with many conventional screens.

Selective Information Placement

For this 55-inch product, the benefit is not simply transparency; it is the ability to place selective information in the viewer's line of sight while leaving enough background depth for the installation to feel intentional. For 55-Inch Transparent OLED Automatic Door Display, that technical value should be judged through architectural door media surface, not as a generic transparent-screen effect.

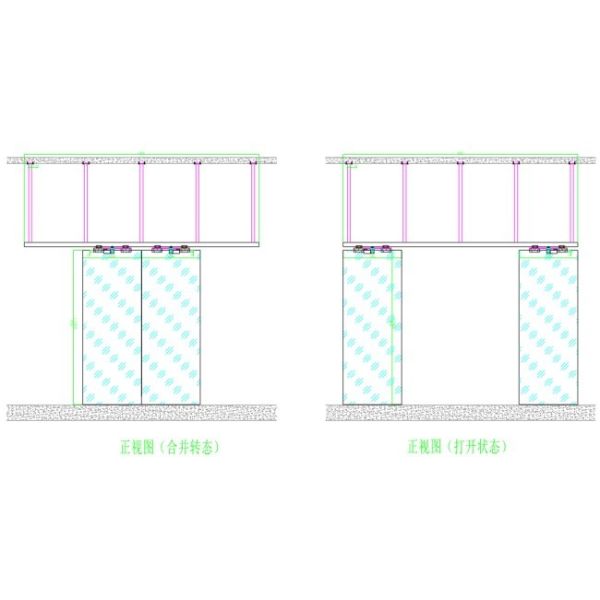

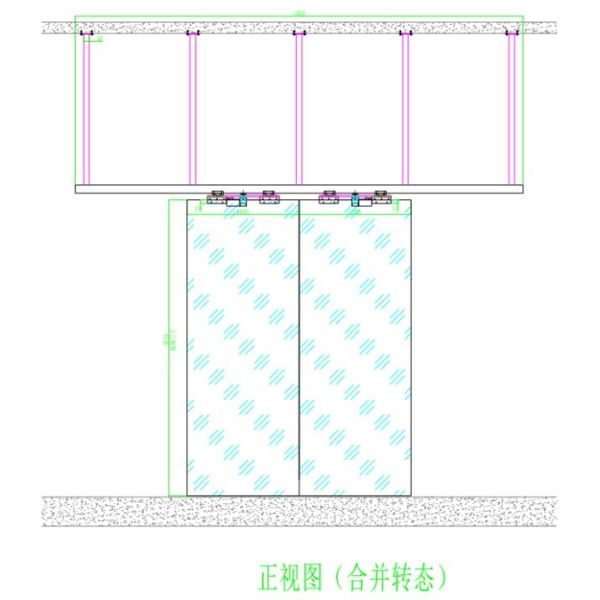

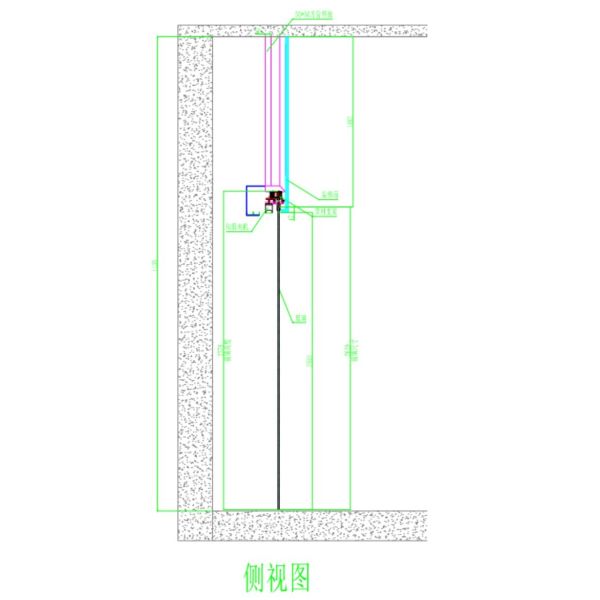

Installation

The first installation question for 55-Inch Transparent OLED Automatic Door Display is how the panel will live inside the space. The review should cover floor stability, lift or door movement, cable exit, controller location, and safe public placement.

Power, Signal and Ventilation

Although the front view of a 55-inch transparent OLED may look light, the build still needs a path for power, signal, ventilation, and service. For Architectural Door Media Surface, the mounting method should protect the panel, keep the visible area clean, and allow a technician to reach the system without disturbing the surrounding display environment.



Category Item Specification
Display Screen Size 55 inches
Panel Type Transparent OLED (LG OLED Grade)
Resolution 1920 × 1080 (Full HD)
Brightness 400–600 cd/m² (typical, APL dependent)
Contrast Ratio 200,000:1
Transparency ~43%
Viewing Angle 178° (H) / 178° (V)
Color Depth 10-bit / 1.07 Billion Colors
Refresh Rate 120Hz
Response Time ~0.1–8 ms
Mechanical Structure Installation Type Automatic Door / Glass Mount / Video Wall
Orientation Portrait / Landscape
Panel Thickness Ultra-thin OLED glass structure (~3–6 mm panel reference)
Frame Type Slim metal bezel / custom frame optional
Integration Door system / glass partition compatible
System Configuration (Optional Smart Version) CPU Intel i5 / i7 / i9 (optional)
RAM 8GB / 16GB
Storage 256GB / 512GB SSD
OS Android / Windows optional
Content System CMS remote advertising system
Control Mode RS232 / LAN / Remote control
Interfaces & Connectivity Video Input HDMI ×1
Data Interface USB ×1–2
Control Interface RS232 (RJ45)
Network RJ45 Ethernet
Wireless WiFi optional
CMS Support Yes
Electrical Specifications Power Supply AC 100–240V, 50/60Hz
Power Consumption ~200–230W (typical reference)
Standby Power <0.5W
Protection Industrial-grade power management system
Operating Environment Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Humidity 20% – 80% RH
Working Mode 7×12 hours / 24h optional


II. Three Key Values: More Than Just a Door, a Strategic Touchpoint

This transparent OLED automatic door imbues the entrance to the space with multiple strategic values:


First Impression Amplifier:As the "first touchpoint" of the space, it uses highly technological and artistic dynamic content to establish strong brand awareness and anticipation before visitors even enter, becoming an unforgettable landmark.


Information Interaction Portal:During off-peak hours or as a static partition, it serves as a high-end digital billboard or information screen. It can display product introductions, event previews, artistic content, or provide interactive guides, transforming waiting or observation time into valuable brand communication.


Spatial Narrative Installation:Through programmable control, the content displayed on the door can be linked to the theme, activities, and even the visitor's identity within the interior space. For example, in an exhibition hall, the images on the door can become an exhibition prologue; in a retail store, the theme can change with holidays or new product launches, making the entrance a dynamic extension of the entire spatial narrative.


III. Design Presentation: Floating Aesthetics and Multiple Size Options

Floating Visuals: The transparent screen, combined with a meticulously designed structural frame and a dedicated display stand or concealed installation, creates a futuristic aesthetic effect where the screen appears to "float" in mid-air.

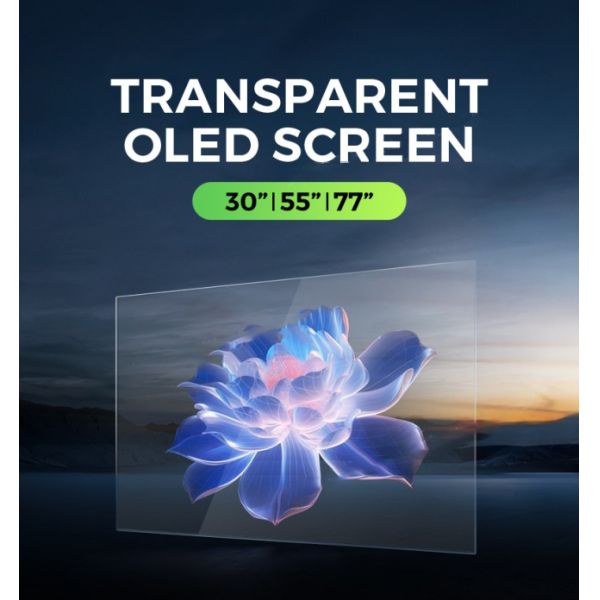

Size Coverage: In addition to the flagship 55-inch size, we also offer 30-inch and 77-inch options to accommodate different doorway dimensions, spatial proportions, and budget requirements, satisfying applications across all scenarios from boutiques to large venues.


55  Inch LG Transparent Display Self-luminous Automatic Door Video Wall Advertising Display


This 55-inch LG Transparent Display automatic door goes far beyond traditional access functionality. It is the brand's digital face, the space's intelligent entryway, and the prelude to an immersive experience for visitors. It redefines the entrance with light and information, elevating each entry into a ritual leading to a future experience.


55  Inch LG Transparent Display Self-luminous Automatic Door Video Wall Advertising Display

55  Inch LG Transparent Display Self-luminous Automatic Door Video Wall Advertising Display


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
