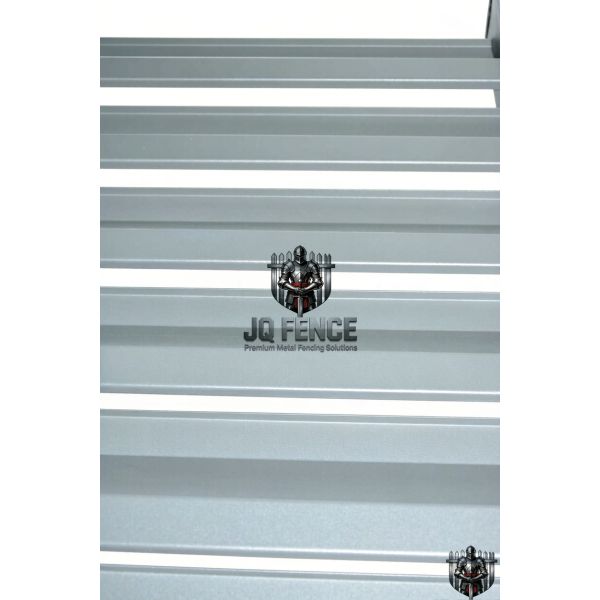

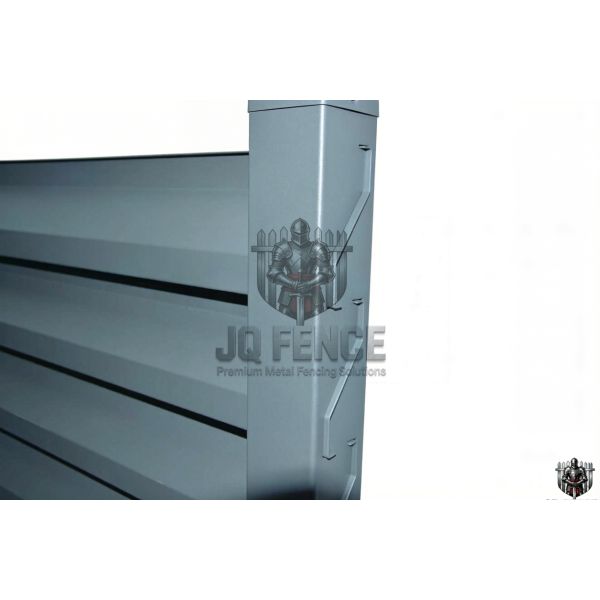

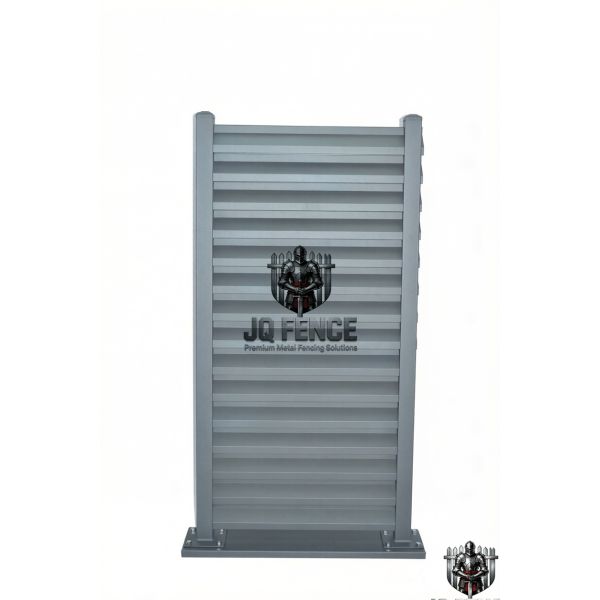

Louvered Privacy Fence Horizontal Slat Privacy Fence Panel

1. Basic Information

• Product Name: Horizontal Slat Privacy Fence Panel (Louvered Privacy Screen)

• Model No.: HSL-1800-1000 (customizable)

• Material: Premium hot-dip galvanized steel sheet

• Finish: High-quality powder coating (mimics the aesthetic of aluminum coating)

• Application: Residential, commercial, light industrial privacy screening

2. Key Advantages

• Cost-effective: Made from galvanized steel, offering the premium look of aluminum at a significantly lower cost.
• Durability: Hot-dip galvanized base provides excellent corrosion resistance, with a powder coating for enhanced protection against weathering.
• Aesthetic appeal: Fine powder coating finish replicates the sleek, modern appearance of aluminum products.
• Sturdiness: Steel construction ensures higher structural strength and wind resistance compared to aluminum alternatives.

3. Dimensions (Standard)

4.Customization Options

• Height: 1200 mm, 1500 mm, 1800 mm, 2000 mm, 2400 mm
• Width: 800 mm, 1000 mm, 1200 mm, 1500 mm
• Slat spacing: 10 mm, 15 mm, 20 mm (affects privacy level)
• Colors: RAL 9005 (black), RAL 6005 (green), RAL 8017 (brown), custom RAL available
• Accessories: post caps, gate hinges, lock sets, post extensions

5. Key Performance

• Corrosion resistance: ≥ 1000 hours salt spray test (ASTM B117)
• UV resistance: UV-stabilized coating, no obvious fading after 5 years of outdoor exposure
• Wind load resistance: ≥ 120 km/h (can be reinforced for higher wind zones)
• Fire rating: Class B1 (non-combustible, self-extinguishing)
• Service life: ≥ 15–20 years under normal outdoor conditions

6.Packaging & Logistics

Packing method:

• Slats and posts are packed separately to maximize container utilization and reduce shipping costs.
• Horizontal slats are stacked neatly and secured with protective wrapping to prevent scratching.
• Vertical posts are bundled together, with end caps and base plates packed in separate cartons to avoid damage.
• All components are wrapped in PE film and bubble wrap, then secured on wooden pallets with steel straps.
• Corner protectors are applied to all sharp edges and corners to ensure product integrity during transit.

Container loading efficiency:

• By shipping slats and posts in a disassembled state, we can achieve a significantly higher loading capacity compared to fully assembled panels.
• This optimized packing method allows for more efficient use of container space, directly reducing your overall logistics costs.

7.Warranty

• Standard warranty: 5 years against manufacturing defects in material and finish.

• Exclusions: damage from improper installation, misuse, or extreme weather events.

8.Applications

This horizontal louvered privacy fence is widely used for both residential and commercial projects. It provides excellent privacy, ventilation and modern appearance, while keeping strong and durable.

Main Applications:

• Private garden, backyard, patio and balcony privacy screening
• Swimming pool and outdoor shower area enclosure
• Building facade, sun shade and decorative wall cladding
• Commercial building exterior and property boundary fencing
• Air conditioner, garbage room and equipment covering
• Park, community and public area landscape separation
