PVC Coated 50*200mm Mesh 3D Curved Welded Wire Mesh Fence with Peach Post
PVC Coated 50*200mm Mesh 3D Curved Welded Wire Mesh Fence with Peach Post
PVC Coated 50*200mm Mesh 3D Curved Welded Wire Mesh Fence with Peach Post
PVC Coated 50*200mm Mesh 3D Curved Welded Wire Mesh Fence with Peach Post
Specifications
Brand Name :
Qijie
Model Number :
QJ-817
Certification :
Curved Mesh Fence
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs
Delivery Time :
12-15days
Packaging Details :
pallets
Material :
Steel
Size :
1.8m x 2.4m
Wire diameter :
4mm/5mm
Openning :
50x100mm
curved :
3 lines
post length :
2.4m / 3m
Description

PVC Coated 50*200mm Mesh 3D Curved Welded Wire Mesh Fence with Peach Post

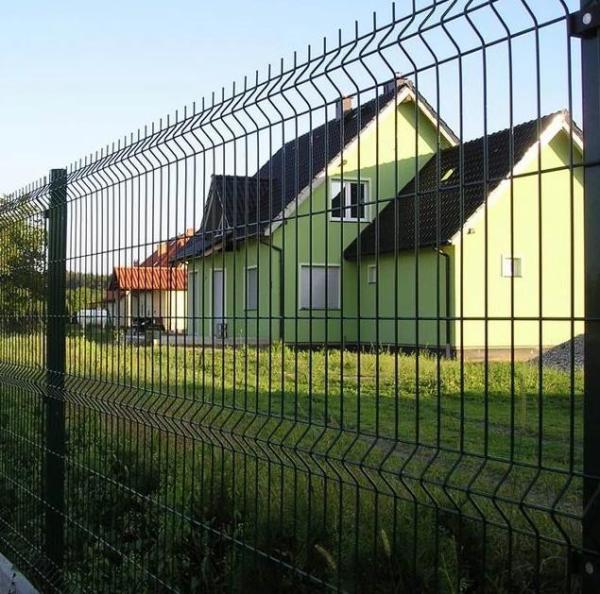

3D Wire Fence Introduction:

Security fencing also called 3D security fence, and wire mesh fence, is widely used in garden, factory, railway, farmland and residence. Curved wire mesh fence can supply strongth and rigidity. Besides curves varies according to the fence height to produce optimum strength.
Fence Panel Material Low carbon steel wire
Wire Diameter 3.0mm-6.0mm
Opening 50x100mm, 50x150mm, 50x200mm, 75x150mm, 75x200mm
Height 0.8-3m
Width 2-3m
Fence Post Square Post 40x40mm, 50x50mm, 60x60mm, 40x60mm
Round Post 40-60mm
Peach Posh 50x70mm, 70x100mm
Post Thickness 1.2mm-2.5mm
Post Height 0.8m-3.5m
Fence Finishing Hot-dipped galvanized;
PVC coated;
Galvanized+PVC coated
Customized specification is also available

PVC Coated 50*200mm Mesh 3D Curved Welded Wire Mesh Fence with Peach Post

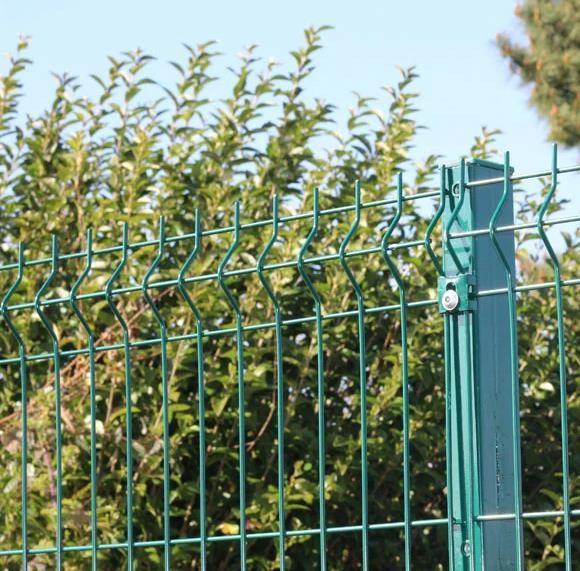

Post types:
PVC Coated 50*200mm Mesh 3D Curved Welded Wire Mesh Fence with Peach Post
Surface Treatment :

1. Powder-coated;
2. PVC coated;
3. Hot dipped Galvanized;
PVC Coated 50*200mm Mesh 3D Curved Welded Wire Mesh Fence with Peach Post
Specification Parameter
3D Wire Fence Specification
Panel height Panel Length Wire diameter Mesh Size Folds No
1.03m 2.5m or Customized 4.0mm
4.5mm
5.0mm
5.5mm		 50*150mm
50*200mm
55*200mm
75*200mm		 2
1.23m 2
1.53m 3
1.83m 3/4
2.03m 4
2.43m 4
2.73m 4
