3.4mm Wire*15cm Mesh *1.22*2.44 Black Welded Wire Mesh Panel For Canada
3.4mm Wire*15cm Mesh *1.22*2.44 Black Welded Wire Mesh Panel For Canada
3.4mm Wire*15cm Mesh *1.22*2.44 Black Welded Wire Mesh Panel For Canada
3.4mm Wire*15cm Mesh *1.22*2.44 Black Welded Wire Mesh Panel For Canada
Specifications
Brand Name :
Qijie
Model Number :
welded wire mesh rolls
Certification :
SGS
Place of Origin :
China
MOQ :
100pcs/set
Payment Terms :
L/C, T/T
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
wood case
Application :
Construction Wire Mesh
Type :
Welded Mesh,Reinforced Mesh,panel or roll,Electric Wire Mesh
Material :
Galvanized Iron Wire,Low-Carbon Iron Wire,Galvanized Steel Wire,Q195
Hole shape :
Square,Square Type;Rectangle Type
Wire gauge :
2.0-4.0mm
Surface treatment :
Hot Dipped Galvanized,galvanized
Width :
0.5-1.8m
Length :
50m
Description

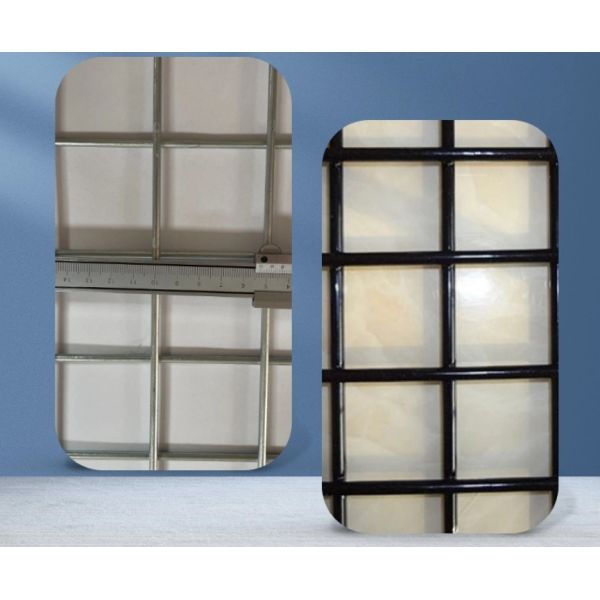

3.4mm Wire*15cm Mesh *1.22*2.44 Black Welded Wire Mesh Panel For Canada

This kind of welded wire mesh panel is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.

Application: Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications.

Hot dipped zinc coated welded wire mesh panel is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.

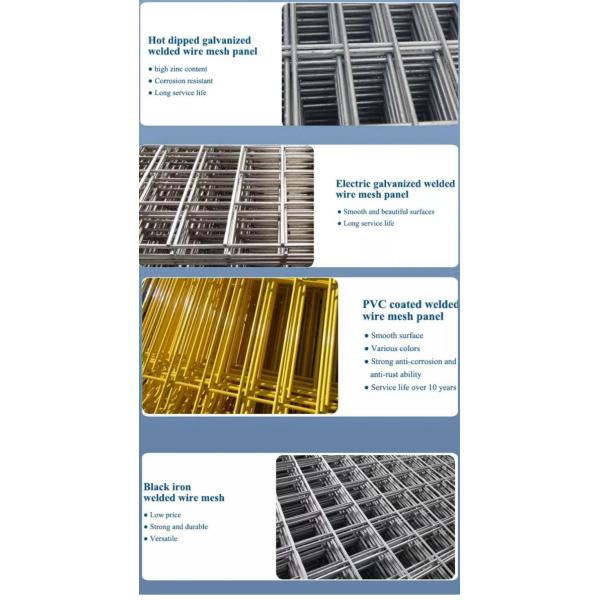

Hot Dipped Galvanized After/Before Welding;

Electro Galvanized After/Before Welding;

PVC Coating With Green, Black, Color, Etc.

Welded Mesh made of Stainless Steel Wire.

3.4mm Wire*15cm Mesh *1.22*2.44 Black Welded Wire Mesh Panel For Canada

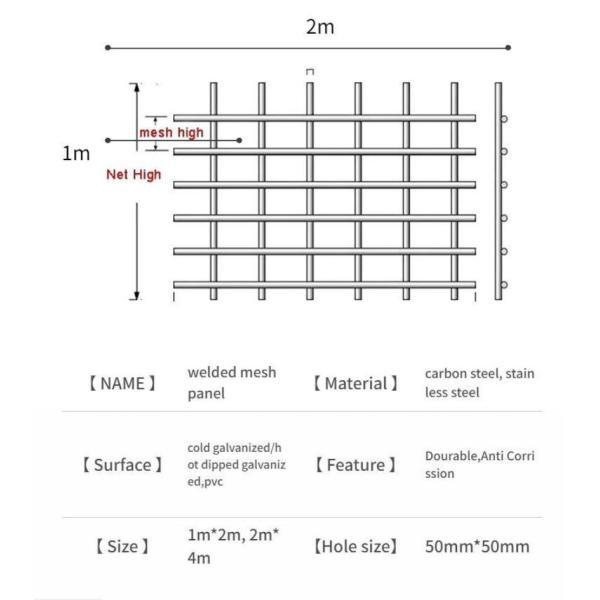

Welded wire mesh specification ( Standard length: 30m / roll , Width : 0.3m - 2.5m )
Opening in inch Wire diameter (bwg)
1/4 '' x 1/4 '' 22 , 23, 24
3/8 '' x 3/8 '' 19 , 20 , 21 , 22
1/2 '' x 1/2 '' 16 , 17 , 18 , 19 ,20 , 21 , 22 , 23
5/8 '' x 5/8 '' 18 , 19 , 20 , 21
3/4 '' x 3/4 '' 16 , 17 , 18 , 19 , 20 , 21
1 '' x 1 '' 16 , 17 , 18 , 19
1 '' x 1/2 '' 16 , 17 , 18 , 19 , 20 , 21
1 '' x 1/4 '' 14 , 15 , 16 , 18
1 '' x 2 '' 14 , 15 , 16
2'' x 2 '' 7, 8, 9 , 10 , 11,12
4'' x 4'' 7, 8, 9 , 10 , 11,12
6'' x 6'' 7, 8, 9 , 10 , 11,12

3.4mm Wire*15cm Mesh *1.22*2.44 Black Welded Wire Mesh Panel For Canada

Product Characters of welded wire mesh :

1 . Excellent heat resistant and high intensity .

2 . High strength and strong integration .

3 . Flat and smooth surface combined with firm structure .

4 . Perfect Anti - Rust Property .

5 . Stay Holistiv even cut into fragmented parts .

6 . Long Using Life

7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.

3.4mm Wire*15cm Mesh *1.22*2.44 Black Welded Wire Mesh Panel For Canada
