0.3mm Thickness Perforated Steel Mesh 20%-80% Open Area Polishing
0.3mm Thickness Perforated Steel Mesh 20%-80% Open Area Polishing
0.3mm Thickness Perforated Steel Mesh 20%-80% Open Area Polishing
0.3mm Thickness Perforated Steel Mesh 20%-80% Open Area Polishing
Specifications
Brand Name :
Qijie
Model Number :
perforated screen mesh
Certification :
perforated screen mesh
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs
Delivery Time :
15-18days
Packaging Details :
wood case
Aperture :
0.5mm-100mm
Application :
Filter, decoration, protection, etc.
Edge Treatment :
Cut edge, rolled edge, etc.
Features :
High strength, corrosion resistance, wear resistance, etc.
Hole Shape :
Round, square, diamond, hexagonal, etc.
Hole Size :
0.5mm-100mm
Length :
0.5m-20m
Material :
Stainless steel, galvanized iron, aluminum alloy, brass, etc.
Mesh Count :
2 mesh-635 mesh
Open Area :
20%-80%
Packaging :
Rolled, pallet, wooden case, etc.
Surface Treatment :
Polishing, galvanizing, anodizing, etc.
Thickness :
0.3mm-12mm
Weave Type :
Plain weave, twill weave, dutch weave, etc.
Width :
0.5m-2.5m
Description

China Supplier Perforated Steel Sheet Aluminum Perforated Metal Screen Mesh

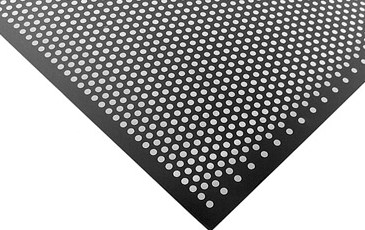

Perforated Metal Sheet
Perforated metal,also know as punching metal, is made from the sheets or coils of mild steel,stainless steel or aluminum,which are uniformly punched, have a variety of hole sizes,shapes and configuration. The perforated metal have various of patterns by using the different molds,and widely used in industrial,decoration,filter,equipment guards,screens,ventilation,tec.


Material: Mild steel sheet, stainless steel sheet, monel sheet, copper sheet, brass sheet, aluminum sheet, etc
Width: 1000mm,1219mm,1220mm,1500mm,1800mm
Length: 2000mm,2438mm, 2400mm,3000mm,6000mm
Thickness: 0.4mm to 3mm (Cold Rolled process); 3mm to 35mm (hot rolled process)
Hole size: 0.8--18mm
Features: Flat surface, smooth, beautiful, strong and durable, wide application.

Mild steel perforated

Mild steel perforated metals,are made from low carbon steel or galvanized steel. They are easy to be weld,cut,form the desired shape. Because of the above excellent characteristic,the carbon steel perforated metal sheet is widely used in industrial,decoration,filter,equipment guards,screens,ventilation,tec.

0.3mm Thickness Perforated Steel Mesh 20%-80% Open Area Polishing

ROUND HOLES STAGGERED PATTERN
HOLE CENTERS GAUGE / PLATE
THICK.		 OPEN AREA
.020" RD .045" Stag 26 18%
1/32" RD 1/16" Stag 22 23%
3/64" RD 5/64" Stag 24 33%
3/64" RD 3/32" Stag 22 thru 18 23%
1/16" RD 3/32"Stag 22 thru 16 40%
1/16" RD 7/64" Stag 20 thru 16 30%
1/16" RD 1/8" Stag 26 thru 16 23%
5/64" RD 1/8" Stag 22 thru 14 35%
3/32" RD 5/32" Stag 24 thru 14 33%
3/32" RD 3/16" Stag 24 23%
.117 RD 5/32" Stag 18 51%
1/8" RD 3/16" Stag 24 thru 11 40%
1/8" RD 7/32" Stag 14 thru 12 30%
1/8" RD 1/4" Stag 14, 13 23%
9/64" RD 3/16" Stag 18 51%
5/32" RD 3/16" Stag 22 thru 16 63%
5/32" RD 1/4" Stag 20 thru 10 35%
3/16" RD 7/32" Stag 22 thru 16 67%
3/16" RD 1/4" Stag 24 thru 12 51%
3/16" RD 5/16" Stag 10, 3/16" 33%
3/16" RD 3/8" Stag 14 thru 10 23%
1/4" RD 5/16" Stag 20 thru 16 58%
1/4" RD 3/8" Stag 26 thru 1/4" 40%
17/64" RD 5/16" Stag 20 66%
5/16"RD 7/16" Stag 20 thru 1/4" 46%
3/8" RD 9/16" Stag 20 thru 1/4" 40%
1/2" RD 11/16" Stag 20 thru 1/4" 48%
1/2" RD 3/4" Stag 16 40%
5/8" RD 7/8" Stag 10 thru 1/4" 46%
3/4" RD 1" Stag 16 thru 1/4" 51%
1" RD 1-3/8" Stag 10 thru 1/4" 48%
1-1/4" RD 1-5/8" Stag 1/4" 54%
1-1/2" RD 2" Stag 1/4" 51%
2" RD 2-1/2" Stag 1/4" 58%
2-1/2" RD 3" Stag 3/16" 63%
3" RD 3-1/2" Stag 3/16" 67%
4" RD 4-1/2" Stag 10 72%

Application:

Used for oil filters as fencing screen for expressway, railway and other construction facilities used in workshops as well as other constructions as sound isolation sheet decorative sheet for stairs, environmental tables and chairs sifting in grains, feed and mines also used in making of kitchenware such as fruit basket, food cover.
