7 X 19 Stainless Steel Rope Mesh Architectural Protective Flexible
7 X 19 Stainless Steel Rope Mesh Architectural Protective Flexible
7 X 19 Stainless Steel Rope Mesh Architectural Protective Flexible
7 X 19 Stainless Steel Rope Mesh Architectural Protective Flexible
7 X 19 Stainless Steel Rope Mesh Architectural Protective Flexible
7 X 19 Stainless Steel Rope Mesh Architectural Protective Flexible
7 X 19 Stainless Steel Rope Mesh Architectural Protective Flexible
7 X 19 Stainless Steel Rope Mesh Architectural Protective Flexible
Specifications
Brand Name :
X MESH
Model Number :
X MESH-Cable Webnet-003
Certification :
ISO9001:2015
Place of Origin :
Hebei P.R. China.
MOQ :
10pcs
Price :
USD2.35-3.58/m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000m2/week
Delivery Time :
5-7days
Packaging Details :
Wrapped with plastic film and wooden case packing
Product name :
Stainless Steel Cable Mesh
Material :
Stainless Steel 316L
Wire Rope :
3mm
Rope Constructions :
7 X 19
Mesh Orientation :
Horizontal
Mesh Shape :
Diamond
Mesh Angle :
60 Degree
Color :
Silver
Feature :
Extensive Use
Packing :
Pallet or Wooden Case Packing
Description

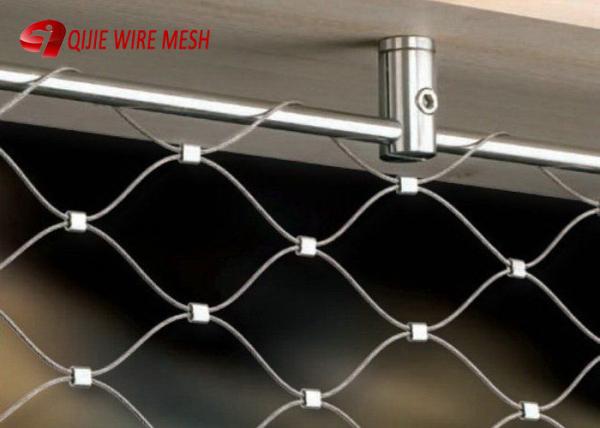

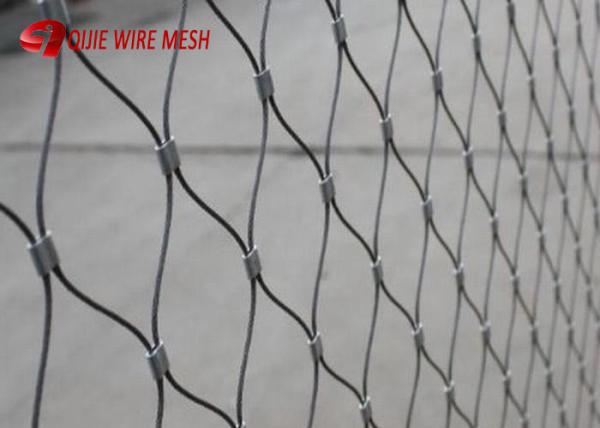

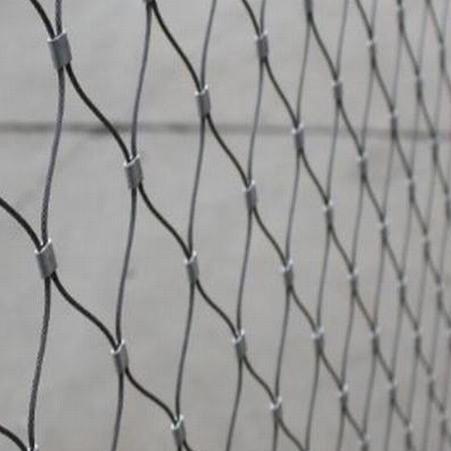

Architectural Protective Flecible Stainless Steel Wire Rope Mesh for Zoo and Plant Climbing Netting

Flexible stainless steel rope nets are made of various materials such as AISI304, AISI304L, AISI316/AISI316L, including knotted nets and ferrule nets. The nets can be used in vertical or horizontal directions. Common mesh sizes range from 20mmx20mm to 300mmx300mm, and stainless steel rope mesh diameters range from 1.0mm-4.0mm. We can customize the braid openings, wire diameters and sizes infinitely to meet your exact specifications. Contact us and let architects and designers recommend specifications corresponding to various loads and uses to meet your needs.

Stainless steel wire rope mesh:
Material :304, 304L, 316, 316L,
Structure: 7x7 rope, 7x19 rope, etc.
Rope diameter : 1.2 mm, 1.6 mm, 2.0 mm, 2.4 mm, 3.2 mm,4.0mm,5.0mm
Aperture :20 mm x 20 mm, 30 mm x 30 mm, 40 mm x 40 mm, 50 mm x 50 mm, 60 mm x 60 mm,
76 mm x 76 mm, 90 mm x 90 mm, 102 mm x 102 mm, 120 mm x 120,etc

Type Breaking load ( KN ) Wire Dia.(MM) Mesh Opening (MM)
7 X 19 7.38 3.2 120x120,102x102,
90x90,76x76,51x51
7 x 7 4.18 2.4 102x102, 90x90,76x76,51x51
7 x 7 3.17 2 76x76,60x60,51x51,38x38
7 x 7 2.17 1.6 76x76,51x51,38x38,
30x30,25.4x25.4
7 x 7 1.22 1.2 51x51, 38x38,30x30
25.4x25.4,20x20
