12mesh 316 Stainless Steel Mosquito Wire Mesh Security Black Powder Coated
12mesh 316 Stainless Steel Mosquito Wire Mesh Security Black Powder Coated
Specifications
Brand Name :
YFR
Model Number :
insect screen
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, D/A, D/A, T/T, Western Union, Western Union, MoneyGram
Supply Ability :
10000m2/month
Delivery Time :
12-15days
Packaging Details :
pallets
Material :
stainless steel 304/316/316L
wire diameter :
0.5-1.0mm
Mesh :
8mesh-12mesh
width :
0.5-1.5m
Length :
30m/roll
Description

12mesh Black Powder Coated Stainless Steel 316 Security Insect Screen​

Product Description

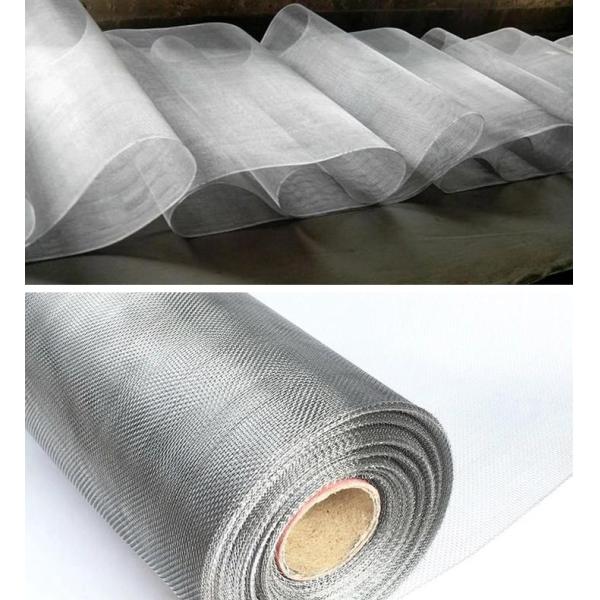

Stainless steel window screen also known as stainless steel insect screen, is made of durable and high-quality 304, 304 L, 306, 306 L stainless steel wire. It is extremely a popular item for its versatility and practicability, and many customers put it into many different places for using.
Stainless steel window screen with a long service life is physically strong and stable. Because of the characteristic of resisting the corrosion, rust, heat, alkaline, it can be used in the harsh environments for windows, doors and porches to prevent the insects.

12mesh 316 Stainless Steel Mosquito Wire Mesh Security Black Powder Coated

stainless steel security window screen

material:

stainless steel wire 304L, 316, 316L

wire diameter:

0.50mm,0.55mm,0.60mm ,0.70mm,0.80mm,0.90mm,1.0mm

mesh size: 10*10mesh,11*11mesh,12*12mesh,13*13mesh,14*14mesh,15*15mesh

surface treatment:

black-matte powder coated, Grey , white, brown, yellow, green,

application:

used in all types of windows and doors

Used in producing security screen that guards your hours anti-theft,anti-mosquito,

anti-pest.It is suitable for advanced door and window

Description
Material Stainless steel wire 304, 304L, 316, 316L
Weaving Plain weave and twilled weave
Wire diameter 0.10 mm - 0.26 mm
Hole size 14 × 14, 16 × 16, 18 × 14, 18 × 18, 20 × 20
Width 2', 3', 4', 5', 6', 7'
Length 30', 50', 100' and so on
Color Black, gray, steel gray, color can be customized
NOTE Other sizes are available as special orders

MODEL WIRE DIAMETER MESH COUNTS DISTANCE OF HOLE USAGE
304L Ordinary mesh 0.12mm 24x22 mesh 1.1mm Thinner for anti-mosquito, anti-insect
304L Thickened mesh 0.15mm 22x20 mesh 1.1mm Large dosage, anti-mouse, anti-mosquito, anti-insect, recommended
304L special dense mesh 0.15mm 26x24 mesh 0.9mm Anti-rat, anti-all kinds of small mosquitoes
304L Extra thick mesh 0.19mm 22x20 mesh 1.1mm Anti-rat, anti-all kinds of small mosquitoes
316L thickened mesh 0.16mm 22x20 mesh 1.1mm Anti-rat, anti-mosquito, anti-small animal, strong anti-corrosion
304L Extremely thick mesh 0.23mm 22x20 mesh 1.1mm Anti-mosquito, anti-big mouse, anti-small animal

12mesh 316 Stainless Steel Mosquito Wire Mesh Security Black Powder Coated

Advantages:

1.304 stainless steel

2.The aperture is uniform and the net surface is smooth

3.High strength and toughness

4.Complete specifications, support customization

5.Corrosion resistance and pressure resistance

6.Good filtering performance, durable use

Packing Detail:

  • Packed in rolls, then wrapped with waterproof paper.
  • Kraft paper and carton.
  • Special packing is arranged if necessary.

12mesh 316 Stainless Steel Mosquito Wire Mesh Security Black Powder Coated 12mesh 316 Stainless Steel Mosquito Wire Mesh Security Black Powder Coated

Feature
1. long service life: good weather resistance, anti-aging, anti-cold, anti-inflammatory, anti-drying, anti-humidity, flame retardant, anti-moisture,
anti-static, good light transmission, no silk, no deformation, anti-UV, High tensile strength and long service life.
2. Wide application range, can be directly installed in the window frame, wood, steel, aluminum, plastic doors and windows can be assembled;
corrosion resistance, high strength, anti-aging, fire resistance, no need to paint coloring
3. Non-toxic and tasteless
4. With anti-static function, no ash, good ventilation
5. Good light transmission, with a true invisible effect
6. Automatic filter UV protection to protect the health of the family
7. Environment protectin

There are three colors: stainless steel color, gray, black. In accordance with customer requirements.

Advantages: anti-shear, impact, security, pest control, mosquito control, high-end doors and windows.

Comparision between 304 secruity mesh and 316L security mesh:

Because 304 grade security mesh screen with 0.9 mm wire is thicker than 0.8 mm 316 mesh. So, 304 stainless steel security screen is stronger and wear resistance than 316, maintaining the corrosion resistant qualities, but 304 grade stainless steel is less brittle than 316.

12mesh 316 Stainless Steel Mosquito Wire Mesh Security Black Powder Coated
