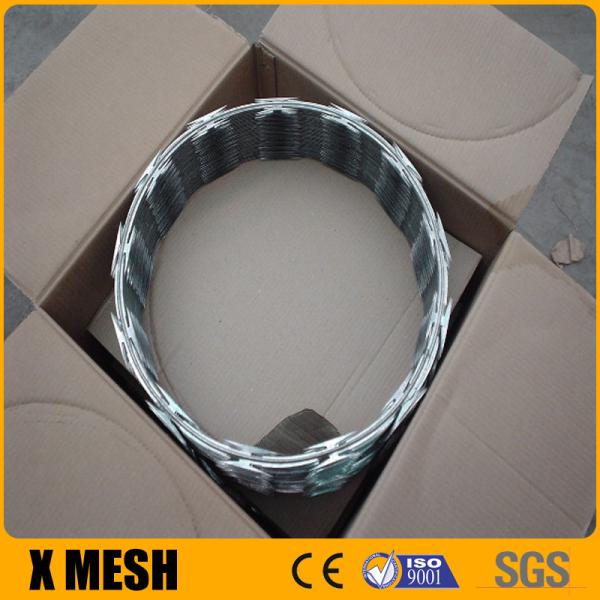

Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence
Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence
Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence
Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence
Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence
Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence
Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence
Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence
Specifications
Brand Name :
qijie
Model Number :
concertina razor wire
Certification :
sgs
Place of Origin :
CHINA
MOQ :
10tons
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
25tons/month
Delivery Time :
15-18days
Packaging Details :
bulk
Blade Length :
22mm
Blade Number :
33
Blade Shape :
Concertina
Blade Spacing :
35mm
Blade Thickness :
0.5mm
Blade Width :
15mm
Coil Diameter :
450mm
Description

Product Description

Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence

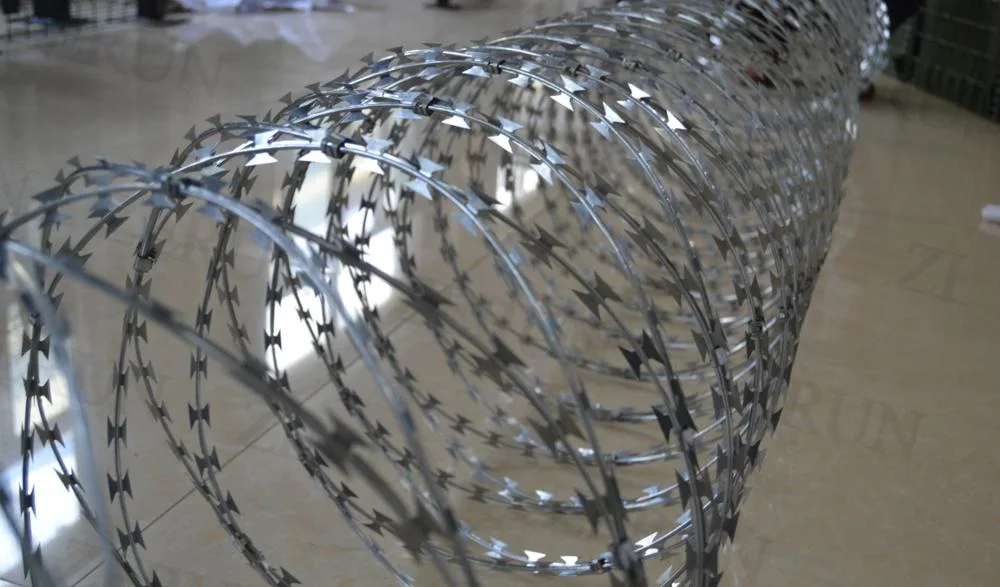

Razor Barbed Wire is also named concertina coils,concertina wires. It is a kind of modern security fencing
materials with better protection and fencing strength.

It made by hot-dipped galvanized blade or stainless steel blade, high tensile strength core wire( steel wire
with 1200mpa tensile strength or stainless steel wire).

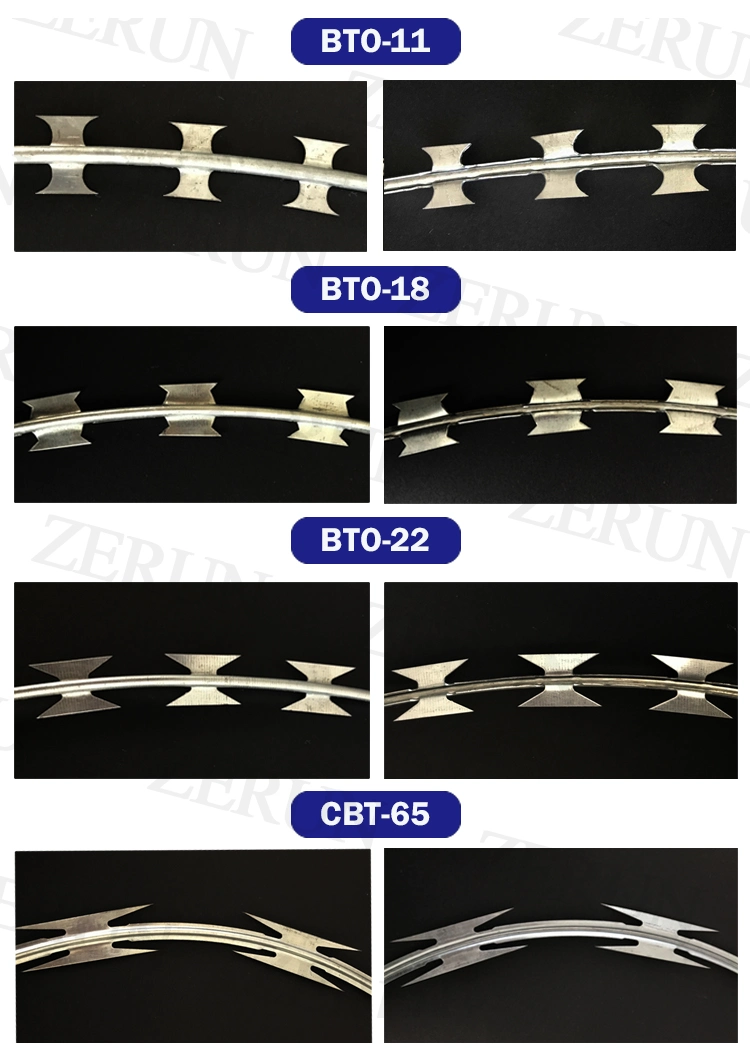

Types of razor wires:BTO10 BTO11 BTO12 BTO22 BTO28 BTO30 CBT65 CBT60

Specification of razor blade wire:

1,Normal hot dipped galvanized razor wire(40-60g)

2,Heavily zinc coated razor wire (70-270g)

3,Stainless steel 304/316 grades razor wire

Clips of concertina wire: 3clips, 5clips or without clips

Coil Diameter of concertina wire: 300mm 450mm 500mm 600mm 700mm 800mm 950mm 1000mm

Package of razor wires:

1,waterproof paper inside,woven bag outside,then 50rolls/bundle or as required

2,In bulk,then packing by wooden pallet or in bulk

Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence

Reference Number Thickness Wire Dia. Blade Length Blade Width Blade Spacing
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-15 0.5±0.05 2.5±0.1 15±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 45±1
CBT-25 0.5±0.05 2.5±0.1 25±1 16±1 40±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2

Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.430/304/316
Standard packages products are shown in the tables above, special specifications are available on request.

Concertina Razor Wire (Standard Use)
Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type

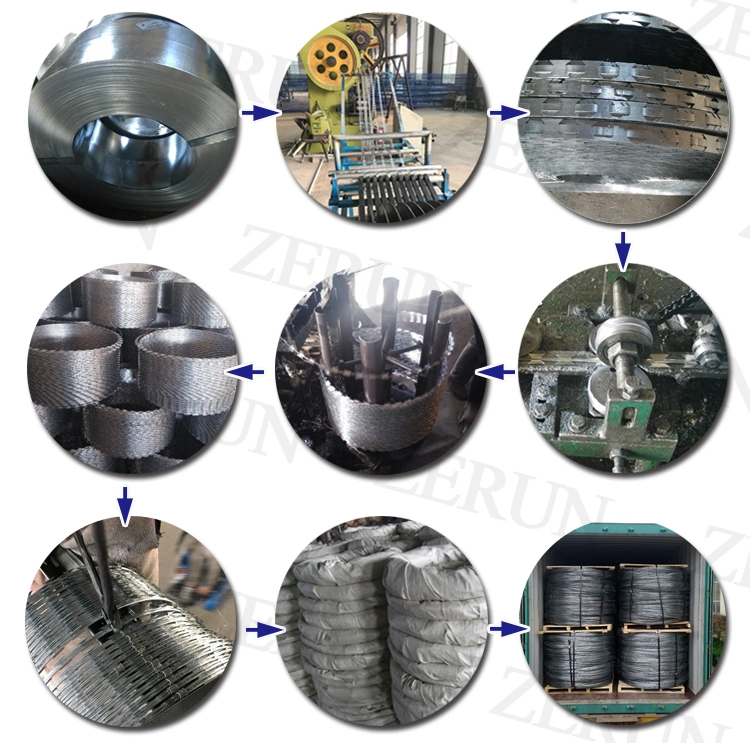

Production Process

Bto22 Wire Stainless Steel Concertina Razor Blade/Razor Barbed Wire Fence

Product tags

stainless steel razor wire

,

razor barb wire stainless

,

razor barbed wire fence
