Razor barbed tape is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Currently, barbed tape has been widely used by many countries in field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only and national security applications, but also for cottage and society fence, and other private buildings.
Single Coil Razor Wire
Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.

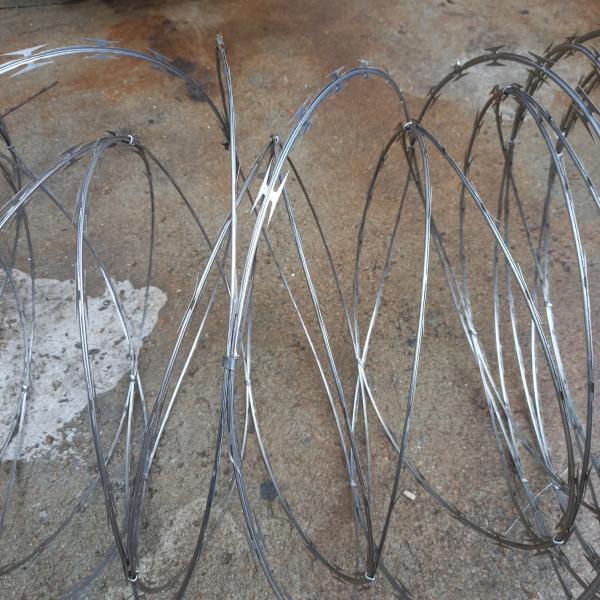

Crossed Razor Wire
Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.
Flat warp razor wire
Flat warp razor wire is a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.
Razor Wire Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very beautiful.It can be used for guard net of fence ,doors and windows and also can be used in Airport.The specification can be designed as the customers' need.
Specifications:
Reference number | Thickness | Wire Dia | Barb length | Barb width | Barb spacing |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Specification of concertina razor wire | ||||
Outside diameter | No.of loops | Standard length per coil | Type | Notes |
450mm | 33 | 7-8M | CBT-60.65 | Single coil |
500mm | 56 | 12-13m | CBT-60.65 | Single coil |
700mm | 56 | 13-14m | CBT-60.65 | Single coil |
960mm | 56 | 14-15m | CBT-60.65 | Single coil |
450mm | 56 | 8-9m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
500mm | 56 | 9-10m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
600mm | 56 | 10-11m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
600mm | 56 | 8-10m(5clips) | CBT-10.10.18.22.28.30 | Cross type |
700mm | 56 | 10-12m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
800mm | 56 | 11-13m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
900mm | 56 | 12-14m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
960mm | 56 | 13-15m(5clips) | CBT-10.10.18.22.28.30 | Cross type |
980mm | 56 | 14-16m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
