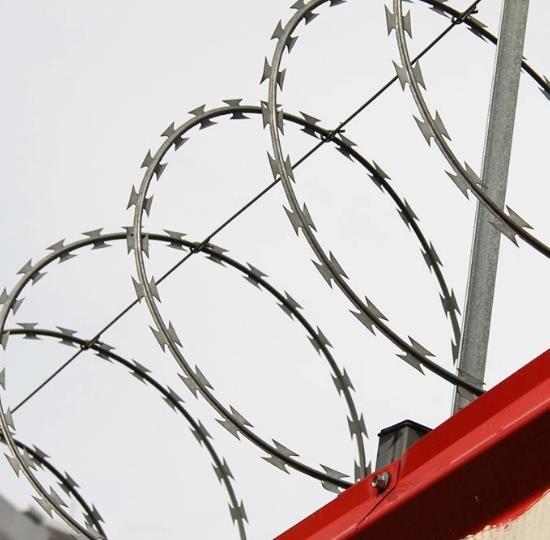

Hot Dipped Security Fencing Concertina Razor Wire Galvanized Pvc Bto 22
Hot Dipped Security Fencing Concertina Razor Wire Galvanized Pvc Bto 22
Hot Dipped Security Fencing Concertina Razor Wire Galvanized Pvc Bto 22
Hot Dipped Security Fencing Concertina Razor Wire Galvanized Pvc Bto 22
Specifications
Brand Name :
qijie
Place of Origin :
CHINA
MOQ :
10tons
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
25tons/month
Delivery Time :
15-18days
Packaging Details :
bulk
Application :
High Security Fencing
Blade Length :
22mm
Blade Number :
33
Blade Shape :
Concertina
Blade Spacing :
35mm
Blade Thickness :
0.5mm
Blade Width :
15mm
Coil Diameter :
450mm
Coil Length :
8-10m
Features :
Sharp Blades, Easy Installation
Material :
Stainless Steel
Packing :
Carton Box
Surface Treatment :
Galvanized
Tensile Strength :
1200-1400N/mm2
Type :
Concertina Razor Wire
Description
Hot Dipped Razor Barbed Wire Fence Security Fencing Galvanized PVC Bto 22 Low Price Concertina Razor Barbed Wire Double ​

We are capable of produce traditional razor wire, razor wire in straight lines, razor wire in concertina single coils or crossed coils. A variety of blade type and sizes are for the choice of our customers. Standard materials for razor wire are either Hot-dipped galvanized or stainless steel.
Materials: Hot dipped galvanized, electro galvanized, stainless steel, etc
Assortment: razor barbed wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils
Concertina razor wire, razor barbed wire , mainly used for safety scope.

Single Coil Razor Wire
Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.

Crossed Razor Wire
Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.

Flat warp razor wire
Flat warp razor wire is a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.

Razor Wire Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very beautiful.It can be used for guard net of fence ,doors and windows and also can be used in Airport.The specification can be designed as the customers' need.

Specifications:

Reference number Thickness Wire Dia Barb length Barb width Barb spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5 28 15 45±1
BTO-30 0.5±0.05 2.5 30 18 45±1
CBT-60 0.5±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2
Specification of concertina razor wire
Outside diameter No.of loops Standard length per coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13m CBT-60.65 Single coil
700mm 56 13-14m CBT-60.65 Single coil
960mm 56 14-15m CBT-60.65 Single coil
450mm 56 8-9m(3 clips) CBT-10.10.18.22.28.30 Cross type
500mm 56 9-10m(3 clips) CBT-10.10.18.22.28.30 Cross type
600mm 56 10-11m(3 clips) CBT-10.10.18.22.28.30 Cross type
600mm 56 8-10m(5clips) CBT-10.10.18.22.28.30 Cross type
700mm 56 10-12m(5 clips) CBT-10.10.18.22.28.30 Cross type
800mm 56 11-13m(5 clips) CBT-10.10.18.22.28.30 Cross type
900mm 56 12-14m(5 clips) CBT-10.10.18.22.28.30 Cross type
960mm 56 13-15m(5clips) CBT-10.10.18.22.28.30 Cross type
980mm 56 14-16m(5 clips) CBT-10.10.18.22.28.30 Cross type
