SS304 Security Insect Screen Netting Anti Mosquito Window Screen 0.7mm X 11mesh
SS304 Security Insect Screen Netting Anti Mosquito Window Screen 0.7mm X 11mesh
SS304 Security Insect Screen Netting Anti Mosquito Window Screen 0.7mm X 11mesh
SS304 Security Insect Screen Netting Anti Mosquito Window Screen 0.7mm X 11mesh
SS304 Security Insect Screen Netting Anti Mosquito Window Screen 0.7mm X 11mesh
SS304 Security Insect Screen Netting Anti Mosquito Window Screen 0.7mm X 11mesh
Specifications
Brand Name :
YFR
Model Number :
insect screen
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, D/A, D/A, T/T, Western Union, Western Union, MoneyGram
Supply Ability :
10000m2/month
Delivery Time :
12-15days
Packaging Details :
pallets
Material :
stainless steel 304/316/316L
wire diameter :
0.5-1.0mm
Mesh :
8mesh-12mesh
width :
0.5-1.5m
Length :
30m/roll
color :
black
Description

lack Powder Coated Ss304 0.7mm X 11mesh Security Insect Screen


Window screen is also known as wire screen, insect screen or fly screen. It is used to keep leaves, debris, insects, birds and other animals from entering a building or a screened structure such as a porch, while permitting fresh air-flow. Therefore it is applied to filtration, windows for mosquitoes and flies, doors, etc.
Stainless steel insect mesh is the most durable of the materials available for insect mesh and has excellent resistance to corrosion. Stainless steel insect mesh keeps out flies, wasps, bees, mosquitoes and other insects, but not midges.

Window Screen Mesh Specification

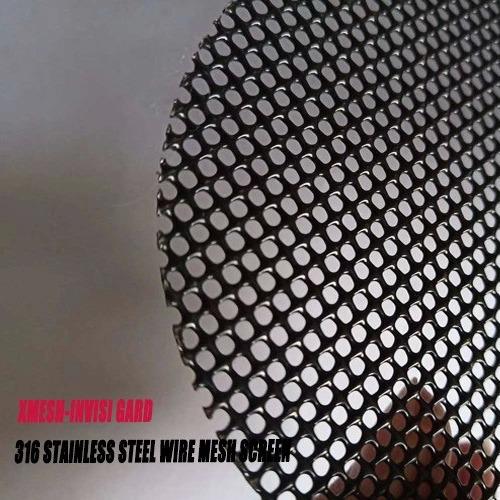

Black SS Security Insect Screen
1. material:AISI316/304.
2. mesh:11 mesh.
3. wire dia : 0.8mm
4. meet Australia standard


Material
Mesh per inch
Wire Dia (mm)
Wire Dia (inch)
Open Area %

AISI 316 or 304
10 x 10
0.9
0.035"
41.7

AISI 316 or 304
10 x 10
1.2
0.028"
27.8

AISI 316 or 304
10 x 10
0.8
0.032"
46.9

AISI 316 or 304
10 x 10
1.15
0.045"
29.9

AISI 316 or 304
11 x 11
0.8
0.032"
42.5

AISI 316 or 304
11 x 11
0.7
0.027"
48.3

AISI 316 or 304
12 x 12
0.7
0.027"
44.8

AISI 316 or 304
12 x 12
0.58
0.023"
52.8

Special mesh can be made according to customers requirement


Chemical Composition:

Chemical composition of stainless steel wire:
Grade Chemical Composition(%)
C Si Mn P S Ni Cr Mo
304 =0.08 =1.00 =2.00 =0.045 =0.030 8.00~10.50 18.00~20.00 -
304H >0.08 =1.00 =2.00 =0.045 =0.030 8.00~10.50 18.00~20.00 -
304L =0.030 =1.00 =2.00 =0.045 =0.030 9.00~13.50 18.00~20.00 -
316 =0.045 =1.00 =2.00 =0.045 =0.030 10.00~14.00 10.00~18.00 2.00~3.00
316L =0.030 =1.00 =2.00 =0.045 =0.030 12.00~15.00 16.00~18.00 2.00~3.00
430 =0.12 =0.75 =1.00 =0.040 =0.030 =0.60 16.00~18.00 -
430A =0.06 =0.50 =0.50 =0.030 =0.50 =0.25 14.00~17.00 -


Features:
1. Against theft, bulletproof, super resistance to impact, insect and so on.
2. mooth surface, mesh standard, latitude and longitude curve is consistent, its remarkable characteristic is BanShi hard like iron, is against theft, bulletproof, home of choice for workplace safety protection.
3. Bulletproof Mesh Screen Features :
-- very high bounce impact force,the most feature and application.
-- as window screen ,it has good view inside room,but hazy for person outside room
-- easy to clean
-- power coated
