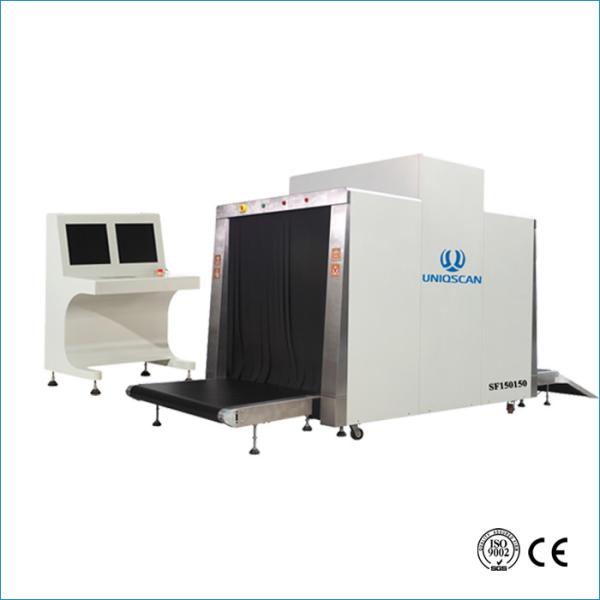

0.22m/S 36AWG X Ray Baggage Inspection System Airport Luggage Scanner

Baggage X-Ray Machine X-Ray Luggage Scanner Police Equipment Security And Safety Equipment SF150150

General Specification:

Technical Specifications

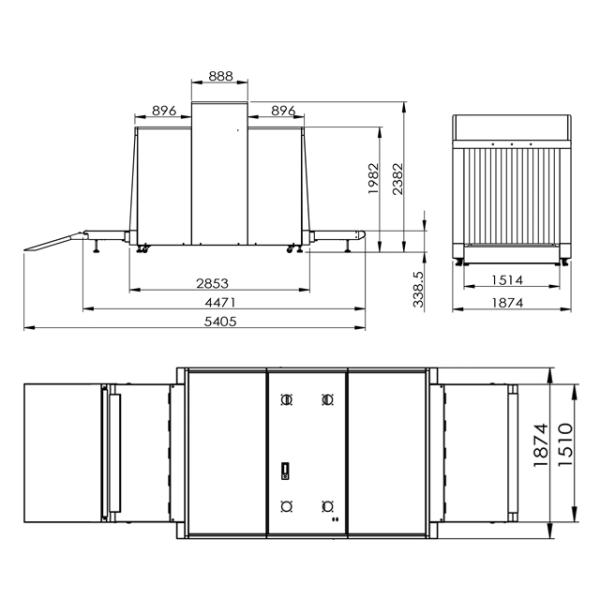

Tunnel Size : 1500 (W) ×1500 (H) mm

Power Requirement: 220V AC (±10%) 50±3Hz

Power consumption: 1.0KW (Max)

Noise level: <58dB

Conveyor Speed: 0.22m/s

Conveyor Max Load: 800 kg

Wire Resolution: 36AWG

Spatial Resolution: 1.0mm Horizontal and Vertical

Steel Penetration: 34mm

Single inspection dosage:

< 1.6μGy

Leakage radiation: <0.8µGy/h

Film Safety: Guarantee ISO1600 Film

X-Ray Generator Specifications

Voltage: 160KV

Tube Current: 1.0mA

Cooling: Sealed oil bath with forced air

Duty Cycle: Rated for 100%Duty Cycle

Beam Direction: Downward

Beam Angle: 80°

Detector: L-shaped Array

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Detailed Pictures:

• Airports, seaports and public transportation
• Banks and financial institutions
• Schools and sports stadiums
• Churches and lecture halls
• Hospital ER and MRI room
• Hotels, conference centers and casinos
• Courthouses, police facilities and government
• Prisons and jails
• Embassies and broadcast studios
• Power plant and research center
• Military bases

Our service

Company Information:

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

We owns all of the intellectual property rights(IPR) to its core technologies,and have a experience engineer,sales and service team. Products widely used in airport, railway station, bus station, electronic factory, exhibition, government office, jail, court house...etc. Wins a good reputation from end users from China and overseas.

We strictly in accordance with the ISO9001 quality standard requirements from production research, manufacture, marketing to after services, established a complete quality management and assurance system, to ensure all our clients have our best quality products and best services.
