TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate
TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate
TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate
TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate
Specifications
Brand Name :
Uniqscan
Model Number :
UT550-C
Certification :
CE, ISO9001
Place of Origin :
Gongdong, China
MOQ :
1 unit
Price :
USD 300-380 UNIT
Payment Terms :
T/T, Western Union
Supply Ability :
2000 unit per month
Delivery Time :
afer got payment 5-7 days
Packaging Details :
Single package size: 126X35X110 cm Single gross weight: 71.0 kg
Product name :
Flap Turnstile Gate
Communication Interface :
TCP/IP
Material :
304# stainless steel
Speed :
35-40 person/min
Dimension :
1200*300*980mm(Standard)
Channel width :
≤550mm
Description

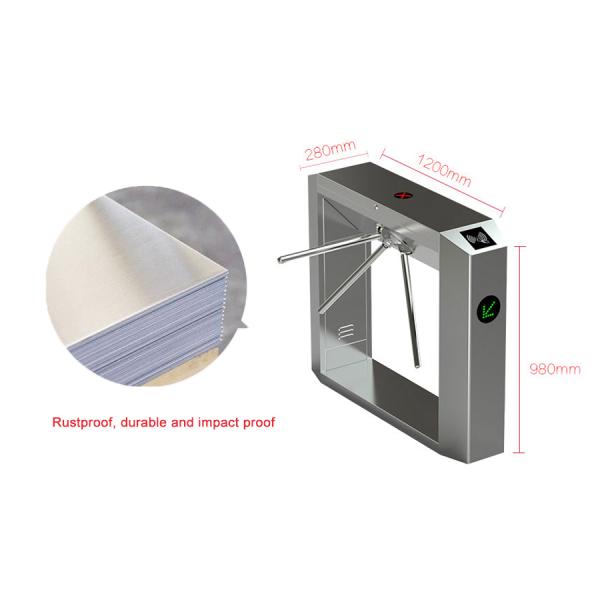

UT550-C 304 Stainless Steel 1.5mm Thickness Access Control System Tripod Turnstile Gate

1. Standard Specification:

Shell material
SUS304 stainless steel
Shell processing technology
using laser, bending, cutting, welding, polishing, polishing and other processes.
Size
1200*280*980mm
Tickness
1.5mm for head; 1.2mm for cabinet
Weight
71KG
Rod length/thickness
500 (mm) / ¢ 38 stainless steel tube.
Channel width
≤550mm
Rod working driving force
3Kg.
Motor
24V / 30W brushless.
Positioning accuracy
1/500 yards.
Adaptation temperature
-40 °C ~ 80 °C. (Need to add temperature control system)
Adaptation humidity
5% - 90%
Opening time
0.2 seconds.
Delay reset time
≥3S adjustable.
Passing speed
≥30 people/minute.
Working environment
indoors and outdoors.
Direction
Bi-directional
speed
35 person/min

2. Function introduction:

1. It has fault self-test and alarm prompt function, which is convenient for users to maintain and use.
2. Can be connected to any control device output control signal or button or remote control, to achieve single bidirectional
control pass.
3. Can be arbitrarily set single, two-way free passage.
4. Automatic reset function: automatically reset every 120 degrees, or when the specified time (delay adjustable) is not passed,
the system will automatically cancel the permission of the pass.
5. Light indication: high-brightness traffic light status indication, guide the passage.
6. Anti-tailing function: every time one person turns 120 degrees, if someone trails, the gate automatically starts the reverse
thrust blocking and alarms.
7. Fire input: It can be connected with the fire alarm signal to realize the constant electric pole normally open.
8. Memory function: Accurate signal memory, when receiving legal signals multiple times in succession, it will automatically reset
after the last person passes, greatly improving the traffic speed.
9. Alarm prompt function: When the illegal passage or the brake is issued, the alarm prompt is automatically issued.
10. Anti-reverse function: When the reversal occurs during the passage, the brake lever will automatically start the reverse
thrust blocking and issue an alarm. After the external force disappears, the passage will automatically resume.
11. Anti-buffering function: When illegally passing or braking, the brake lever automatically starts the reverse thrust blocking
and issues an alarm to achieve humanized anti-injury. When the external force disappears, it is automatically reset.
12. Dropping rod and raising rod: the automatic falling rod when power cut off, and automatically raise rod when power on.
13. Dynamic reminder: When accepting the legal traffic signal, the brake lever automatically rotates about 5 degrees, and the soft
touch rotates to the next reset point and stops.

Note: All size, shape and function can be customized as per customers’ requirements.

Detail photo :

TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate

TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate

Related Products :

TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate

Installation Case :

TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate

Factory :

TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate

Packing:

TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate

Why us?

1. Experienced: 14 years' metal detector manufactory.
2. Skilled: With core technology and independent research and development in the x-ray imagine technology, metal detection soulitions and relative security service.
3. Professional: One-Stop Service, including international training, overseas installation service, ODM & OEM & Customize are available.
4. Reliable: Wins a good reputation from end users from China and overseas, and no worry after-sales.
5. Factory price, establish win-win cooperation.

TCP Stainless Steel 1.5mm Thickness Tripod Turnstile Gate
