24 Zones 255 Sensitivity 8KHZ Walk Through Body Scanner
24 Zones 255 Sensitivity 8KHZ Walk Through Body Scanner
Specifications
Brand Name :
Uniqscan
Model Number :
UB700
Certification :
CE ISO
Place of Origin :
Guang Dong, China
MOQ :
1 Set
Price :
USD 950-900 set
Payment Terms :
Western Union, T/T
Supply Ability :
200 SET per Month
Delivery Time :
7 working days
Packaging Details :
Package size for door panels: 2260*650*260mm *1ctn Package size for control unit: 780*390*250 mm*1ctn
Usage :
Security Check
Warranty :
1 Years
Power Supply :
AC85V-264V
Standard Internal sIZE :
2010mm(H)X700mm(W)X500mm(D)
Standard External Size :
2200mm(H)X800mm(W)X580mm(D)
Color :
Black,gray,white
Gross weight :
70KG
Description

White 24 Zones 255 Sensitivity Sensor Walk Through Body Scanner Security Checking

Product Point :
1................................6/8/12/16/18/24 zones
2............................... 5.7 inch LCD screen
3................................Each zone has 255 sensitivity level
4................................multi zone metal detector
5................................Voice broadcast
6................................metal detector gate

7................................Frame metal detector

Parameters :

Detecting zone: 6/8/12/16/18/24 zone
Display way: 5.7 inch LCD screen
Sensitivity: 0-255 adjustable
Power Supply: AC85V-264V
Working Tempeture: -20º--+50CºC
Working Frequancy: 4KHZ-8KHZ
Gross Weight: 70KG
Warranty: 1 Years
Standard External Size: 2200mm(H)*800mm(W)*580mm(D)
Standard Internal Size: 2010mm(H)*700mm(W)*500mm(D)
Package size for door panels: 2260*650*560mm *1ctn
Package size for control unit: 780*390*250mm *1ctn


CHARACTERISTIC & FUNCTION
Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Sensitivity adjustable: Each zone has 256 sensitivity level, 0-255 adjustable
5.7 inch LCD screen
Infrared remote control
Sound & LED alarm: Both Side LED indicator ,
easily show where the metal is.
Automatically count passengers and alarm times
Alarm strength indicator on control panel
Password protection, only the authorized person can operate.
Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow
instruction.
Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy,
recording tapes, etc.
Using high density fireproof material
Program Self-diagnostic when power on, no need initial or periodic calibration
Modularization design, easy for maintenance and replacement.
Sensitivity Test piece: One yuan Coin, omnidirectional detection
4-8 hours backup battery (Option)

Applications:

  • Airports
  • Correctional Facilities
  • Public Buildings
  • Private Buildings
  • Schools
  • Special Events
  • Loss Prevention
  • Nuclear Facilities
  • Transportation Terminals
  • Courthouses
  • Corporate Security
  • Historical Landmarks

We has been supplying quality products worldwide for over 40 countries, 10 years, with wide product line consists of 4 groups, includes:

  • X-Ray Baggage Scanner
  • Walk Through Metal Detector
  • Hand Held Metal Detector
  • Under Vehicle Inspection System

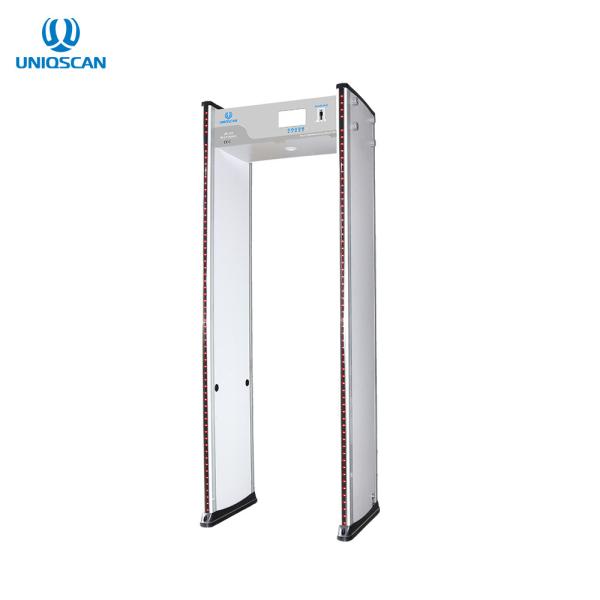

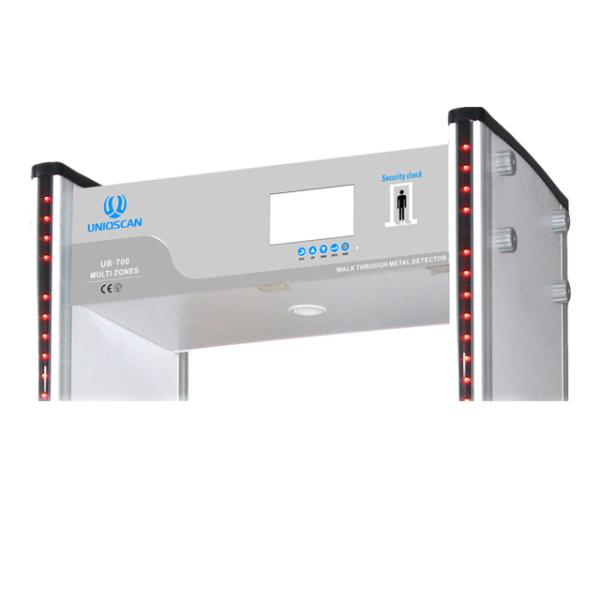

Detail Photo :

24 Zones 255 Sensitivity 8KHZ Walk Through Body Scanner

24 Zones 255 Sensitivity 8KHZ Walk Through Body Scanner

Company Profile :

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

We owns all of the intellectual property rights(IPR) to its core technologies,and have a experience engineer,sales and service team. Products widely used in airport, railway station, bus station, electronic factory, exhibition, government office, jail, court house...etc. Wins a good reputation from end users from China and overseas.

We strictly in accordance with the ISO9001 quality standard requirements from production research, manufacture, marketing to after services, established a complete quality management and assurance system, to ensure all our clients have our best quality products and best services.

24 Zones 255 Sensitivity 8KHZ Walk Through Body Scanner

24 Zones 255 Sensitivity 8KHZ Walk Through Body Scanner

Certiification :

24 Zones 255 Sensitivity 8KHZ Walk Through Body Scanner
