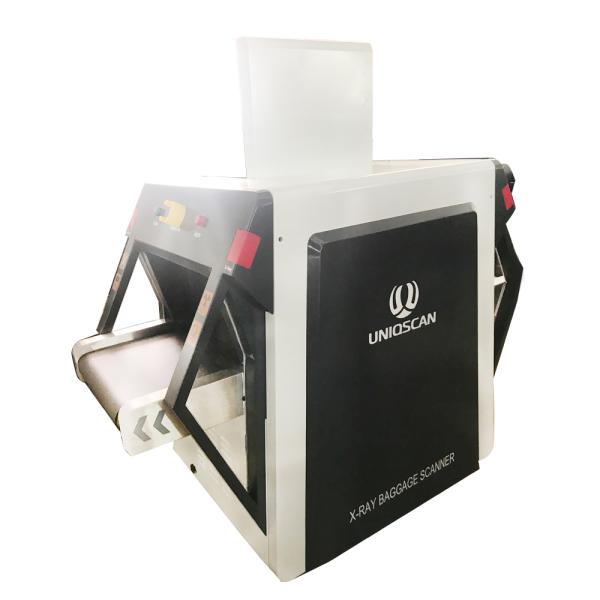

New Designed X-Ray Baggage Scanner with Dual Energy
New Designed X-Ray Baggage Scanner with Dual Energy
New Designed X-Ray Baggage Scanner with Dual Energy
New Designed X-Ray Baggage Scanner with Dual Energy
New Designed X-Ray Baggage Scanner with Dual Energy
New Designed X-Ray Baggage Scanner with Dual Energy
New Designed X-Ray Baggage Scanner with Dual Energy
New Designed X-Ray Baggage Scanner with Dual Energy
Specifications
Brand Name :
UNIQSCAN
Model Number :
SF5030C
Certification :
CE, ISO
Place of Origin :
Guangdong, China
MOQ :
1unit
Price :
Negotiation
Payment Terms :
MoneyGram, Western Union, T/T, D/P, D/A, L/C
Supply Ability :
300units/month
Delivery Time :
7 working day after got the payment
Packaging Details :
Wooden case
Tunnel Size :
500(W)*300(H)mm
Conveyor speed :
0.22m/s
Conveyor Max Load :
150KG
Single inspection dosage :
< 1.32μGy
Wire Resolution :
40AWG
Steel Penetration :
43mm
Film Safety :
For ISO 1600
X-Ray Sensor :
24bit
Orientation :
Upward
Storage Temperature :
-20℃ to 60℃
Description

New Designed X-Ray Baggage Scanner with Dual Energy

1,Specification

Model: SF5030C(Dual energy)

General Specifications

Tunnel Size : 500 (W) ×300 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150 kg
Single inspection dosage: < 1.32μGy
Wire Resolution: 40AWG
Steel Penetration: 40mm
Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward
Tube Current: 0.4~1.2mA(adjustable)
Anode Voltage: 100~160KV(adjustable)
Angle: 80°
Generator cooling/working periods:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise <65DB

X-RAY Sensor:

L-shaped array detector

24bit

Dual energy

Image Performance System:

Display

High-resolution 19 inch color LCD display

Color quality

24-Bit real colors based on materials

Edge enhancement

Object contour edge is more distinct

Super image enhancement

Image detail is more distinct

High penetration display

Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display

Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier

Partial magnifying function

Brightening/dimming

Increase/Decrease brightness of image

Image recurrence

Display the previous twenty images and process any one of them

Image restoration

Restore image to initial status

Image storage

Real-time store any image and process it in operation status

Special features:

Network interface

Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray

Ray is transmitted under automatic control, avoiding the error

One-key shutdown control

Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye

Capable of expediently observing the magnifying area

Self-diagnosis function

Give message automatically if malfunction for prompt maintenance

New Designed X-Ray Baggage Scanner with Dual Energy

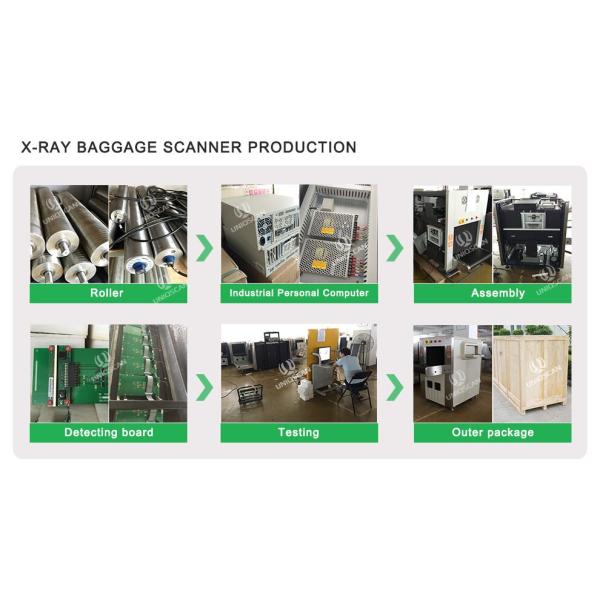

2,Detaild info for the part

New Designed X-Ray Baggage Scanner with Dual Energy

3,Scanned images

New Designed X-Ray Baggage Scanner with Dual Energy
