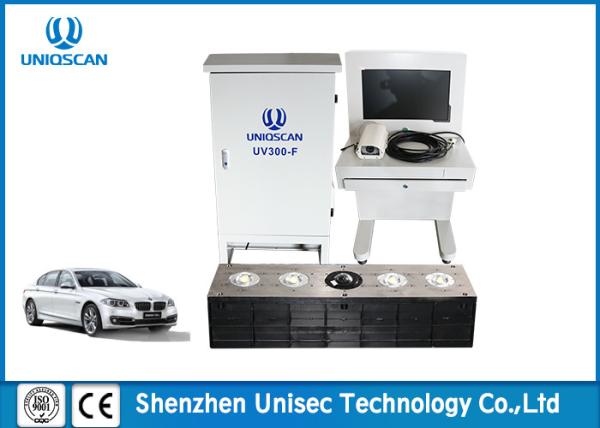

Outdoor UV300F Under Vehicle Inspection System 1920 * 1080P Resolution With LPR Function
Outdoor UV300F Under Vehicle Inspection System 1920 * 1080P Resolution With LPR Function
Specifications
Brand Name :
Uniqscan
Model Number :
UV300F
Certification :
CE.ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500pcs/month
Delivery Time :
5 work days
Packaging Details :
Package Dim. with 3 wooden crates L*W*H (mm) 80*75*146 cm*1 70*40*121cm *1 130*46*49cm *1
Product name :
Under Vehicle Surveillance System
Scanning model :
CCD Linear scanning
Display resolution :
1920 * 1080P
Communication interface :
RS232/RS422
Vehicle speed :
1-60km/h
Working voltage :
DC24V
Warranty :
2 Years
Description

Outdoor UV300F ANPR Camera Under Vehicle Surveillance System With LPR Function

Under Vehicle Surveillance System fixed type UV300-F

Parameters:

Store or load time: <1 second
Vehicle Image local magnification: > 2 times
Vehicle Image scaling: 16 times
Vehicle image display mode: large format transverse
Vehicle image storage format: BMP or JPEG
System interface language: English (can be customized)
Display resolution: 1920 * 1080P
Communication interface: RS232/RS422
Scene image display: ≥1 channel
Speed identification:

when the vehicle pass the scanner and stops

suddenly, then restart, the device can identify

automatically, system will display the complete

vehicle image
Scan mode: linear scanning, the ground sensor coil trigger
Vehicle speed: 1-60km/h, suggest speed : less than 30km/h
View angle: 175 degrees
Image Longitudinal resolution: 2048 pixels CCD
Scanner connecting cable: 100 meters (can be customized)
Lighting components : Four single sealed LED surface light source
Life : 100,000h
Under Vehicle image scanner with a unique open-wide field scan design
Working voltage: DC24V
Power Supply: AC110V-240V/50-60Hz
Structure design: single sealed design
Loading weight: 30 Tons
Scanner size: 1200*350*210mm
Weight: 180kg
Environment temperature: -40 degrees - +70 degrees

License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )

Computer:

Display: 22 inch color LCD Screen
CPU: INTEL core Quad-Core Processor
Motherboard : dedicated motherboard
Memory : DDR3 , more than 4GB
Hard disk : 500G high-speed hard disk
Graphics card : DDR3, 192BIT independent graphics
Appearance: stainless steel composite material
Working current: 3A
Working temperature : -20 ℃ ~ 55 ℃

Outdoor UV300F Under Vehicle Inspection System 1920 * 1080P Resolution With LPR Function
