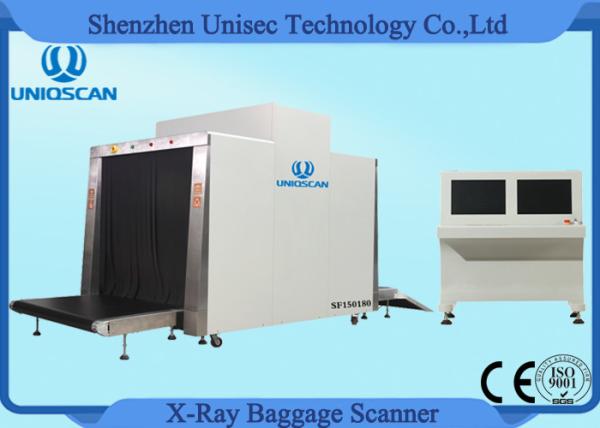

Super Large Airport Baggage Scanner Cargo Pallet Security Scanner with 1.5*1.8m Tunnel Size
Super Large Airport Baggage Scanner Cargo Pallet Security Scanner with 1.5*1.8m Tunnel Size
Specifications
Brand Name :
Uniqscan
Model Number :
SF150180
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiation
Payment Terms :
T/T, , L/C, Western Union
Supply Ability :
50sets/week
Delivery Time :
in one week
Packaging Details :
Wooden box
Product Name :
x-ray scanner
Tunnel Size :
1500 (W) ×1800 (H) mm
Conveyor Max Load :
800 kg
Detector :
L-shaped Array * 1
Wire Resolution :
34AWG
Beam Direction :
Downward
Beam Angle :
80°
Warranty :
2 years
Description

Super Large Airport X-ray Cargo Pallet Security Scanner with 1.5*1.8m Tunnel Size

Brief :

1.................................................1500 (W) ×1800 (H) mm Tunnel Size

2.................................................800 kg Conveyor Load

3.................................................19'' High Resolution LCD Monitor *2 with operate desk

4.................................................1280*1024;24 bit/pixel Color Display Resolution

5.................................................200,000 Image storage and 64 Times Zoom Enlarge

General Specification:

Tunnel Size : 1500 (W) ×1800 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 800 kg
Wire Resolution: 36AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 34mm
Single inspection dosage: < 1.6μGy
Leakage radiation: <0.2µGy/h
Film Safety: Guarantee ISO1600 Film


X-Ray Generator Specifications:

Tube Current: 0.4~1.0mA
Anode Voltage: 80~160KV
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Downward
Beam Angle: 80°
Detector: L-shaped Array * 1


Environment Specifications:

Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)


Computer Specification:

Processor: I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory: 4GDDR3 Loptop Memory
Hard Disk : 1T

Part Advantage :

1. X-ray generator is from Beijing KV tech

2. Interroll from Germany

3. Receiver from DEETEE Finaland


Special features:
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
6. TIP and training software , free programmable keys , real time diagnostic
7. Display date/time , baggage counter , User ID number
8. Review feature , recall previously image , zoom overview , step less zoom

Size :

Super Large Airport Baggage Scanner Cargo Pallet Security Scanner with 1.5*1.8m Tunnel Size

UNIQSCAN Baggage Scanner Project For PyeongChang 2018 Winter Olympics

Super Large Airport Baggage Scanner Cargo Pallet Security Scanner with 1.5*1.8m Tunnel Size
