Under Vehicle Surveillance System fixed type UV300-F and the image scanner with a unique open-wide field scan design;

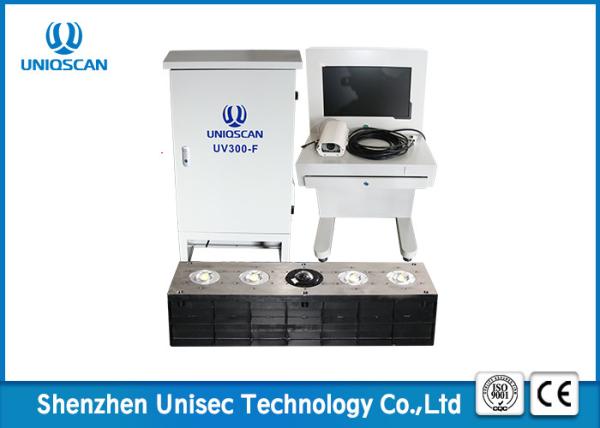

Under Vehicle Surveillance System fixed type UV300-F

Parameters:

1. Store or load time: <1 second;

2. Vehicle Image local magnification: > 2 times;

3. Vehicle Image scaling: 16 times;

4. Vehicle image display mode: large format transverse;

5. Vehicle image storage format: BMP or JPEG;

6. System interface language: English (can be customized);

7. Display resolution: 1920 * 1080P

8. Communication interface: RS232/RS422;

9. Scene image display: ≥1 channel

10. Speed identification: when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image

11. Scan mode: linear scanning, the ground sensor coil trigger;

12. Vehicle speed: 1-60km/h, suggest speed : less than 30km/h

13. View angle: 175 degrees

14. Image Longitudinal resolution: 2048 pixels CCD;

15. Scanner connecting cable: 100 meters (can be customized)

16. Lighting components : Four single sealed LED surface light source ;

Life : 100,000h

17. Under Vehicle image scanner with a unique open-wide field scan design;

18. Working voltage: DC24V

19. Power Supply:AC110V-240V/50-60Hz

20. Structure design:single sealed design；

21. Loading weight: 30 Tons

22. Scanner size: 1200*350*210mm

23. Weight: 180kg

24. Environment temperature: -40 degrees - +70 degrees

25. License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )

Computer:

1. Display:22 inch color LCD Screen

2. CPU:INTEL core Quad-Core Processor

3. Motherboard : dedicated motherboard

4. Memory : DDR3 , more than 4GB

5. Hard disk : 500G high-speed hard disk

6. Graphics card : DDR3, 192BIT independent graphics

7. Appearance: stainless steel composite material

8. Working current: 3A

9. Working temperature : -20 ℃ ~ 55 ℃
